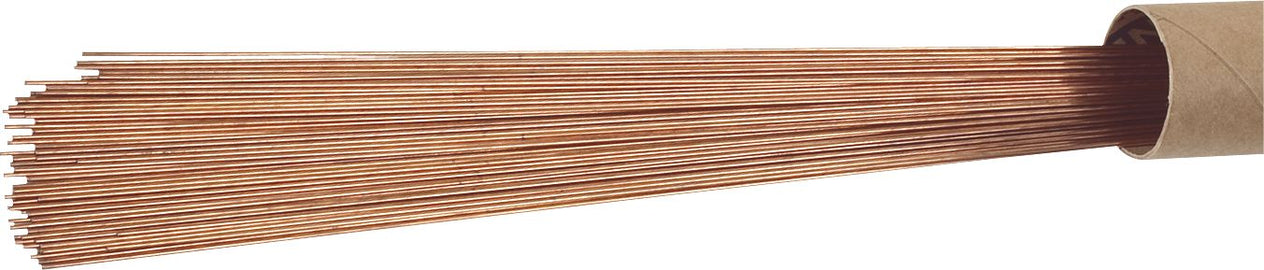

349 Tool Steel TIG Wire, Solid, 33 to 36 HRC Hardness, 100% Ar Shielding Gas, 26% Elongation, 36" Length, 1/16"
(Pack of
2)
SKU:CW1979 Item#: CW1979
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Couldn't load pickup availability
Catalog page#: 13-24
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
344 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
345 Tool Steel TIG Wire 5/32"
Couldn't load pickup availability
349 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 36"
Couldn't load pickup availability
281 High Strength Silver Bearing Solder .031DIA 19G TUBE
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Three Replacement Flint
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
346 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
ER5356 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1979 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/16 " |
| Length | 36 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 2.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
