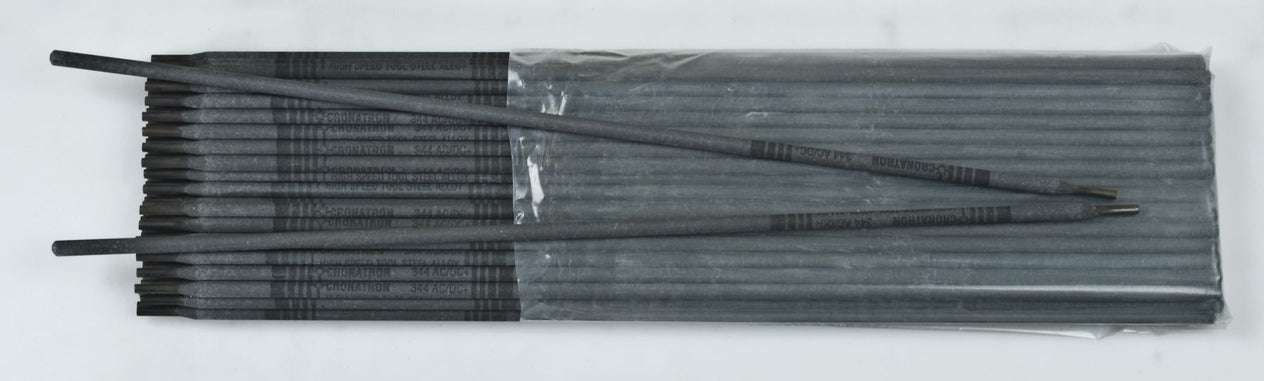

344 Tool Steel Stick Rod Electrode, Flux Coated, 59 to 63 HRC Hardness, 80 to 120 Amps, DCRP/AC Polarity, Crack-Resistant, 1/8"
(Pack of
5)
A broad selection of premium alloys to use for nearly any tool steel application and repair.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63Polarity: AC or DC Reverse
“D” and “M” SeriesThis alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage ProcedureWhen used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Frequently Bought Together
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
349 Tool Steel TIG Wire 1/8"
Couldn't load pickup availability
345 Tool Steel TIG Wire 5/32"
Couldn't load pickup availability
346 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
Oxy Acetylene Fuel and Oxygen Quick Connector
Couldn't load pickup availability
11-45 MIG Welding Contact Tip 0.045"
Couldn't load pickup availability
345 Tool Steel TIG Wire 0.035"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 0.035"
Couldn't load pickup availability
510 Aluminum MIG Welding Wire 3/64"
Couldn't load pickup availability
Product Description
A broad selection of premium alloys to use for nearly any tool steel application and repair.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63Polarity: AC or DC Reverse
“D” and “M” SeriesThis alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage ProcedureWhen used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Technical Specifications
| Item#: | CW1067 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Base Metal | Tool Steel |
| Hardness | 59-63 HRC |
| Polarity | DCRP/AC |
| Quantity Per Package | 5.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
