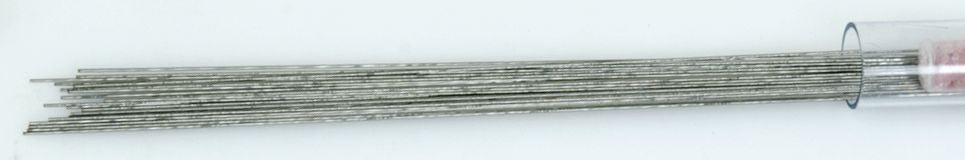

349 Tool Steel TIG Wire, Solid, 33 to 36 HRC Hardness, 100% Ar Shielding Gas, 26% Elongation, 18" Length, 0.02"
(Pack of
25)
SKU:CW4841 Item#: CW4841
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
345 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
349 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
510 Aluminum Stick Rod Electrode 1/8"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Pneumatic Impact Wrench, 1/2 Drive Max Torque 730 lbs
Couldn't load pickup availability
Sheet Metal Screw Phillips/Square Hex #12 x 3/4"
Couldn't load pickup availability
Screwdriver Master Bit Set, S2 Tool Steel, 100pc
Couldn't load pickup availability
Pneumatic Impact Wrench, 1/2 Drive Max Torque 730 lbs
Couldn't load pickup availability
Sheet Metal Screw Phillips/Square Hex #12 x 3/4"
Couldn't load pickup availability
Screwdriver Master Bit Set, S2 Tool Steel, 100pc
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW4841 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | .020 " |
| Length | 18 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 25.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
Product Restrictions
