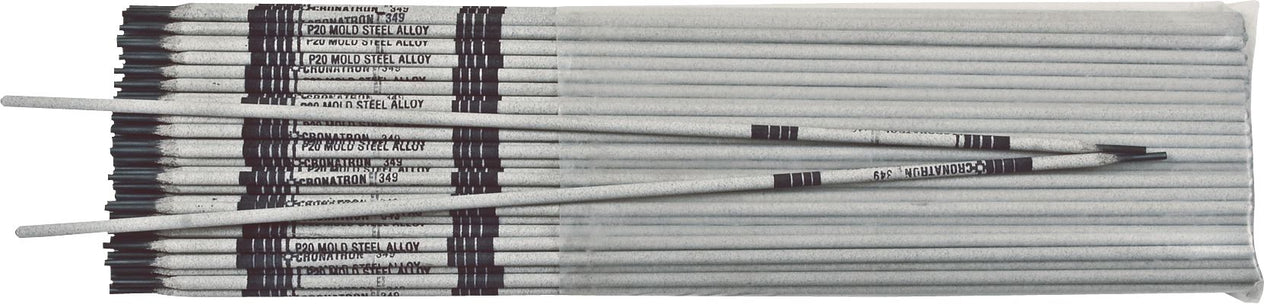

349 Tool Steel Stick Rod Electrode, 33 to 36 HRC Hardness, 60 to 90 Amps, 26% Elongation, DCRP Polarity, Crack-Resistant, 3/32"
(Pack of
5)
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC Reverse
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Frequently Bought Together
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
345 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
349 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
344 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
345 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
235 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC Reverse
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW4852 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Polarity | DCRP |
| Quantity Per Package | 5.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
Product Restrictions
