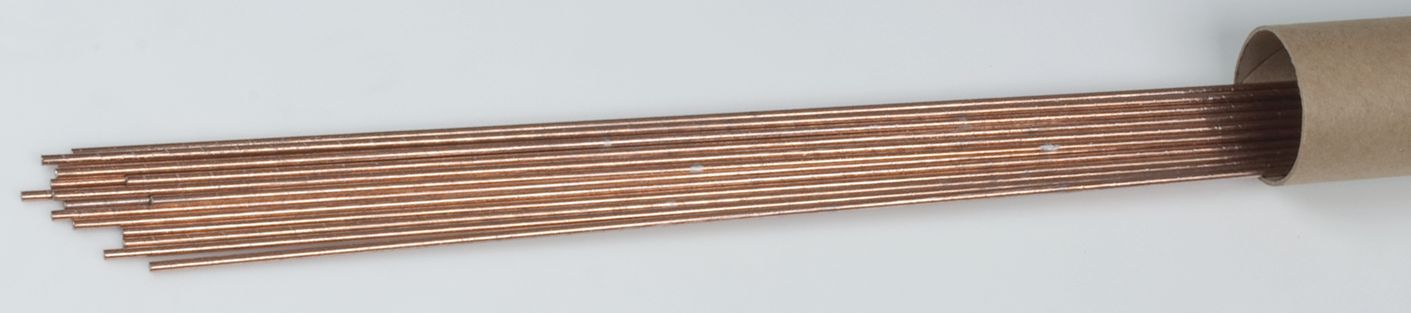

349 Tool Steel TIG Wire, Solid, 33 to 36 HRC Hardness, 100% Ar Shielding Gas, 26% Elongation, 36" Length, 1/8"
(Pack of
2)
SKU:CW1981 Item#: CW1981
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
345 Tool Steel TIG Wire 5/32"
Couldn't load pickup availability
349 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
349 Tool Steel TIG Wire 0.035"
Couldn't load pickup availability
ER4043 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Replacement Flint
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1981 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/8 " |
| Length | 36 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 2.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 2.5 lb |
