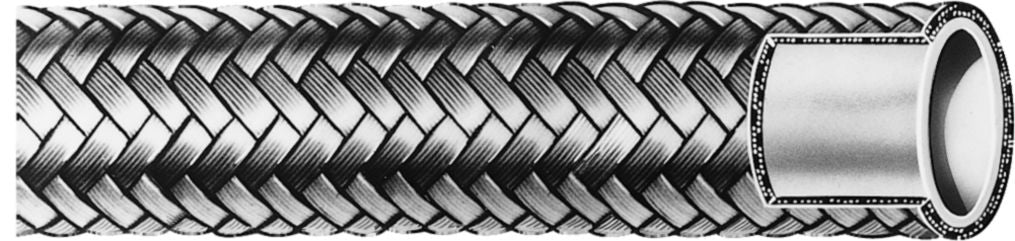

919 PTFE SAE 100R14 Hose, 1 x 304 Stainless Steel Braid, Natural FDA Compliant PTFE Tube, 1500 PSI, 3/16 (-4)" (ID), 0.301" (OD)
(Pack of
25)
• Stainless steel single-wire braid outer cover• Extruded Teflon® inner tube
SAE 100R14
• Temperature range: –100°F to +450°F (–73°C to +232°C)
Ideal for use in steam systems for laundry equipment, refrigeration systems, tire molding presses, asphalt lines and all chemical and high-temperature applications.
Rolls consist of one piece totaling between 22 and 28 feet
Frequently Bought Together
SAE R2S Hydraulic Hose Rubber 0.87" x 250'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.75" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
S Series Teflon Hydraulic Hose 0.31" 1ft
Couldn't load pickup availability
S Series Teflon Hydraulic Hose 1.12" 1ft
Couldn't load pickup availability
Standpipe to Male Air Brake PTFE Hose 1/2" 36"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
• Stainless steel single-wire braid outer cover• Extruded Teflon® inner tubeSAE 100R14
• Temperature range: –100°F to +450°F (–73°C to +232°C)
Ideal for use in steam systems for laundry equipment, refrigeration systems, tire molding presses, asphalt lines and all chemical and high-temperature applications.
Rolls consist of one piece totaling between 22 and 28 feet
Technical Specifications
| Item#: | 12107 04 |
|---|---|
| Type | PTFE Hose |
| Category/Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R14 |
| Manufacturer Series Number | 919 |
| Manufacturer Series Name | Parflex |
| Hose I.D. | 3/16 (-4) " |
| Working Pressure | 1,500 PSI |
| Burst Pressure | 10,000 PSI |
| Bend Radius | 2 " |
| Inner Tube Material | Natural FDA Compliant PTFE |
| Hose Reinforcement | 1 x 304 Stainless Steel Braid |
| Hose Cover Material | Stainless Steel Braid |
| Fitting Series | 90 |
| Temperature | -100F to +400F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 2.0 lb |
