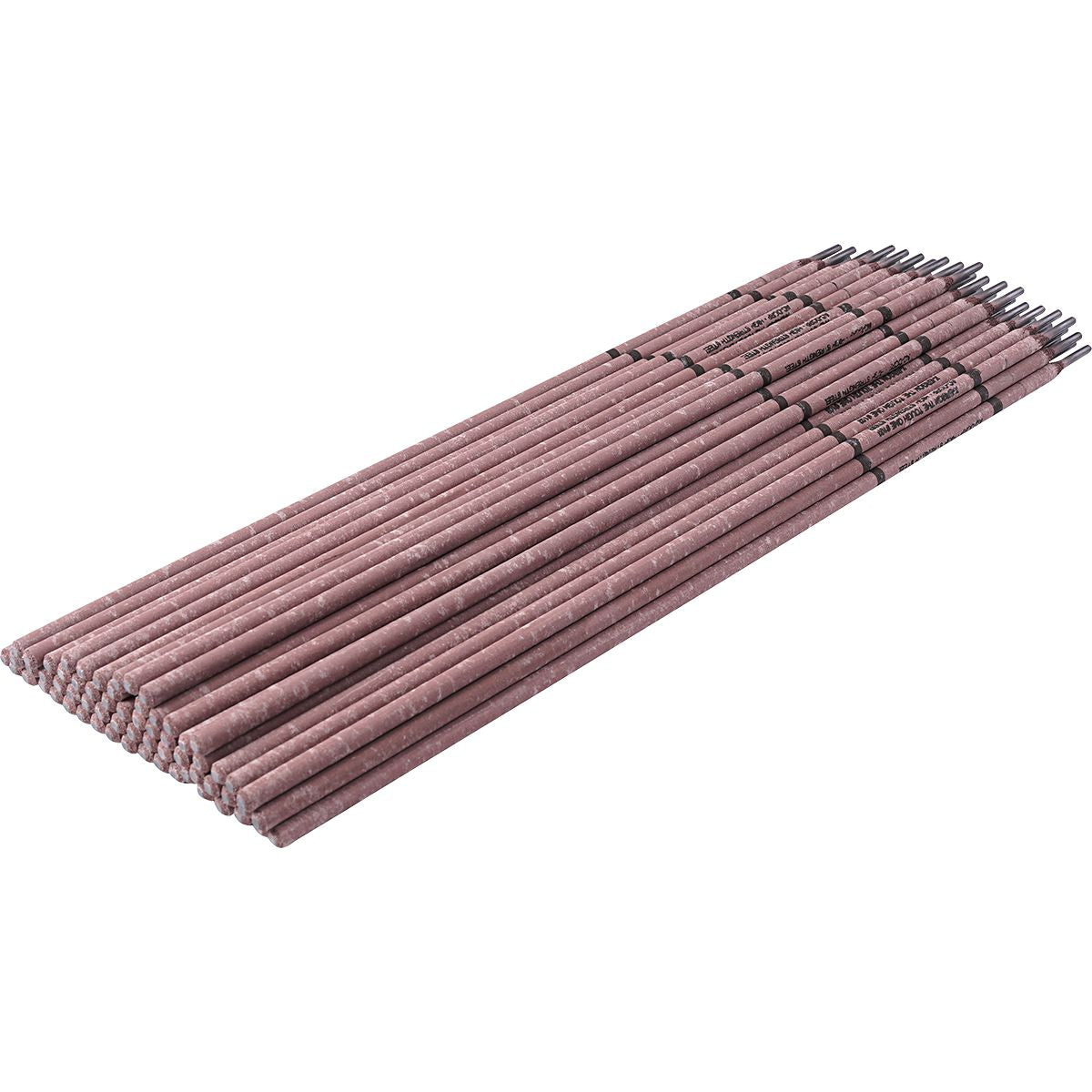

103 Tough One Mild Steel High Strength Low Hydrogen/ Tensile 92000/Polarity Dcep/Elogation 30%/Chematized Flux
(Pack of
5)
SKU:EG1034000R Item#: EG1034000R
Special Chem-A-Tized2 flux coating changes the way welders think of low-hydrogen electrodes. It operates at lower amperages with better puddle control than all previous low-hydrogen electrodes. Additions of nickel and molybdenum make the weld deposit tough and strong, but still machinable.
• Improved Weldability – Operates like a low-hydrogen rod should, with an easy-to-see puddle, extremely low spatter and easy slag-removal
• Easy to use out-of-position and the weld goes where you direct it
• Superior Weld Toughness – Designed for tough maintenance applications
• Versatile – Designed for welding mild steel, low alloy steel, free-machining steel, high-strength steel, all with one rod
• New Chem-A-Tized2 coating provides better arc control, low spatter and better bead appearance
• Tensile Strength: Up to 92,000 PSI/634 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Elongation: 30%
• Machinability: Excellent
• Hardness: 89 Rb
• Impact Resistance: 50 ft.-lbs. @ -40°F/-40°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: LE-126
Frequently Bought Together
340 Chromoly TIG Wire 1/16"
Couldn't load pickup availability
340 Chro-moly Stick Rod Electrode 1/8"
Couldn't load pickup availability
107 Mild Steel High Penetration Low Alloy Electrode 5/32"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
344 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 24"
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6013 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
Special Chem-A-Tized2 flux coating changes the way welders think of low-hydrogen electrodes. It operates at lower amperages with better puddle control than all previous low-hydrogen electrodes. Additions of nickel and molybdenum make the weld deposit tough and strong, but still machinable.• Improved Weldability – Operates like a low-hydrogen rod should, with an easy-to-see puddle, extremely low spatter and easy slag-removal
• Easy to use out-of-position and the weld goes where you direct it
• Superior Weld Toughness – Designed for tough maintenance applications
• Versatile – Designed for welding mild steel, low alloy steel, free-machining steel, high-strength steel, all with one rod
• New Chem-A-Tized2 coating provides better arc control, low spatter and better bead appearance
• Tensile Strength: Up to 92,000 PSI/634 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Elongation: 30%
• Machinability: Excellent
• Hardness: 89 Rb
• Impact Resistance: 50 ft.-lbs. @ -40°F/-40°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG1034000R |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Tensile Strength | 92,000 PSI |
| Yield Strength | 76,000 PSI |
| Elongation | 30 % |
| Base Metal | High Strength Low-Alloy Steel |
| Hardness | 89 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.04 lb |
