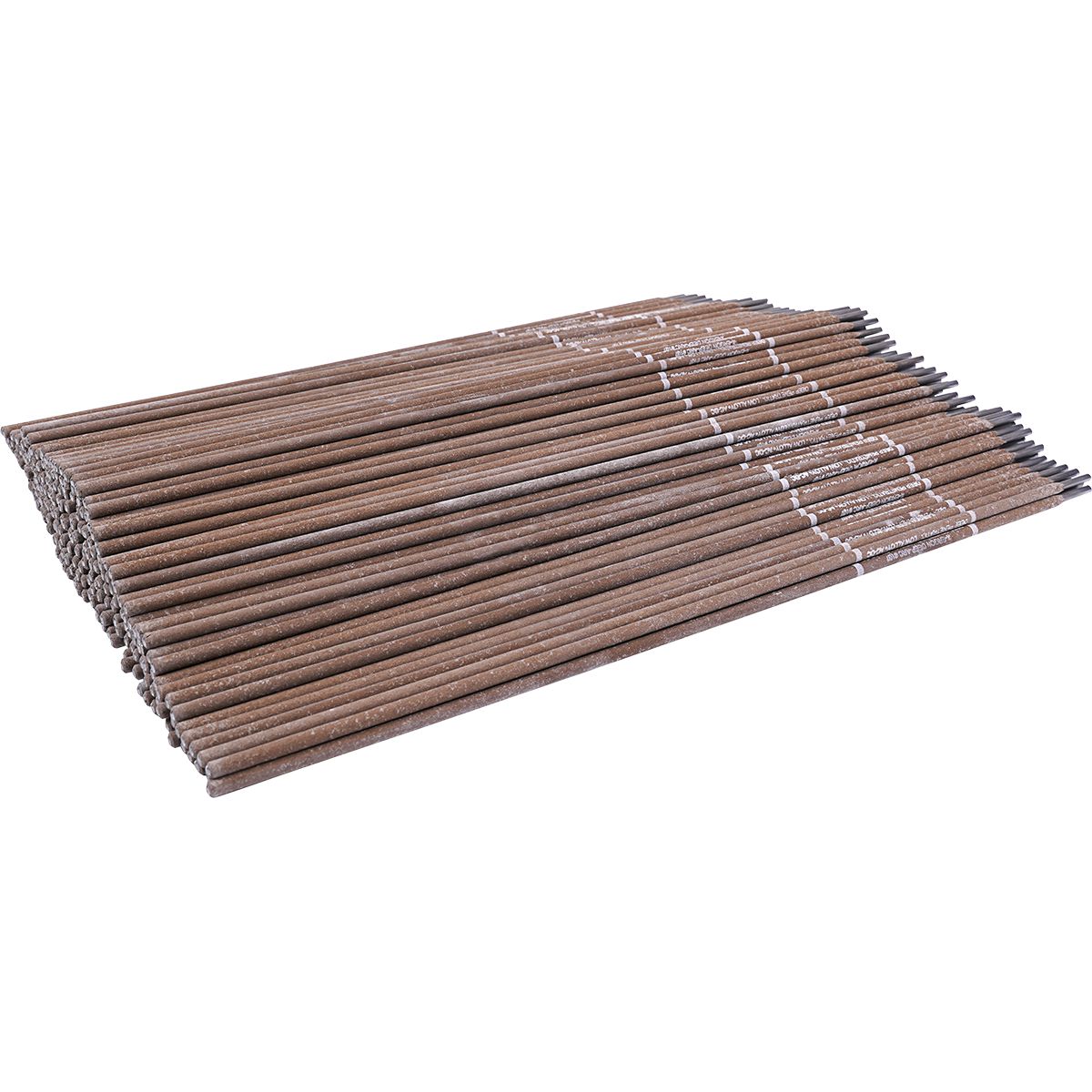

107 Mild Steel High Penetration Low Alloy Electrode 3/16"
(Pack of 15.0)

Lawson Products

Deep-Arc is designed perfectly for the maintenance welder. It welds through dirt, grease and other contaminants. It works at low amperage for use on low, open circuit buzz boxes. Its ability to penetrate makes it an ideal choice for poor fit-ups and root passes on thick steel.
• Welds through contaminants - little or no pre-cleaning required; including pass-over-pass without chipping slag
• Wide Amperage Range - Allows welder to control penetration
• Superior Penetration - Excellent for root and cover passes on pipe assembly or repairs
• Low Amperage - Prevents burn through on thin gauge steel and enables use on low voltage buzz boxes
• Excellent Arc Stability - Works well on inverter-type arc welders and AC machines
• Tensile strength: up to 85,000 psi/586 Mpa
• Yield strength: up to 69,000 psi/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Current: DCEP (DC+) or AC

Check Availability

Quantity

Frequently Bought Together

109 High Strength Electrode 1/8

Item#: EG10940000

660 Mild Steel Flux Core Low Hydrogen Mig Wire .035X10Lb

Item#: EG66040035

106 Mild Steel All Purpose Electrode 1/16

Item#: EG1067000G

Lock Washer Alloy Steel 3/8"

11Pc Lock and Load Hammer Set

Item#: DY81420015

SAE Flat Washer Thru-Hardened Steel 5/8"

777 Stainless Steel Stick Rod Electrode 1/8"

657 Premium Bronze Solid Mig Wire .035X30LB SPL

Item#: EG65770035

665 Copper and Brass TIG Wire 1/8"

8-7500 Plasma Cutting Shield Cup

192053 Plasma Cutting Drag Shield

Oxy-Therm Striker Plate

Product Description

Deep-Arc is designed perfectly for the maintenance welder. It welds through dirt, grease and other contaminants. It works at low amperage for use on low, open circuit buzz boxes. Its ability to penetrate makes it an ideal choice for poor fit-ups and root passes on thick steel.
• Welds through contaminants - little or no pre-cleaning required; including pass-over-pass without chipping slag
• Wide Amperage Range - Allows welder to control penetration
• Superior Penetration - Excellent for root and cover passes on pipe assembly or repairs
• Low Amperage - Prevents burn through on thin gauge steel and enables use on low voltage buzz boxes
• Excellent Arc Stability - Works well on inverter-type arc welders and AC machines
• Tensile strength: up to 85,000 psi/586 Mpa
• Yield strength: up to 69,000 psi/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG10720000
Welding Process	Stick
Type	Stick
Diameter	3/16 "
Tensile Strength	85,000 PSI
Elongation	25 %
Base Metal	Mild And Medium Carbon Steel
Polarity	DCRP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	15.37 lb
