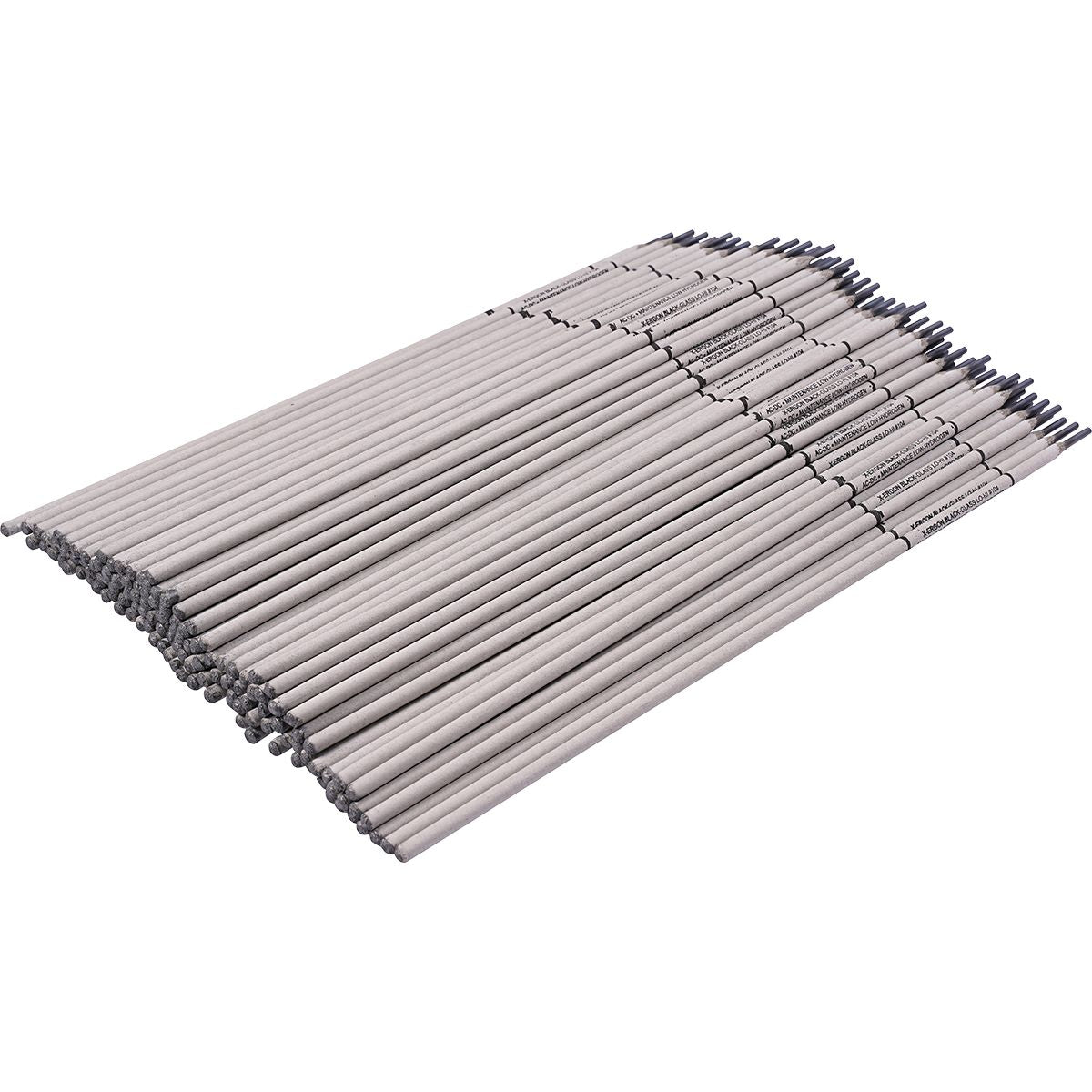

Mild Steel Low Hydrogen Stick Electrode Chematized Flux Polarity Dcep/Ac 5/32"
(Pack of
15)
SKU:EG1043000B Item#: EG1043000B
Designed for maintenance. Features a special Chem-A-Tized2 flux coating that produces a slag that consumes contaminants like lava including rust, grease, dirt and paint. The low hydrogen coating makes the weld deposit tough and strong, yet still machinable.
• Superior Cleaning Action – The Black Glass slag consumes contaminates like lava
• Low-Hydrogen Toughness – Designed for tough maintenance applications
• Special double-coated Chem-A-Tized coating provides better arc control, low spatter and better bead appearance
• Has the cleaners in the outside coating and the arc stabilizers on the inside, where they’re needed to improve performance
• Operates on AC or DCEP
• Easy to use in all positions whether uphill, horizontal or overhead
• Designed to Operate at Lower Amperage – Reduced distortion and burn-through tenance applications
• Tensile Strength: Up to 87,000 PSI/600 Mpa
• Yield Strength: 72,000 PSI/496 Mpa
• Elongation: 31%
• Machinability: Excellent
• Hardness: 86 Rb
• Impact Resistance: 50 ft.-lbs. @ -20°F/-29°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
Catalog page#: LE-127
Frequently Bought Together
106 Mild Steel All Purpose Electrode 5/64
Couldn't load pickup availability
103 The Ultimate Low Hydrogen Mild Steel Electrode 5/32
Couldn't load pickup availability
660 Mild Steel Flux Core Low Hydrogen Mig Wire .045X33Lb
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
E6011 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
Product Description
Designed for maintenance. Features a special Chem-A-Tized2 flux coating that produces a slag that consumes contaminants like lava including rust, grease, dirt and paint. The low hydrogen coating makes the weld deposit tough and strong, yet still machinable.• Superior Cleaning Action – The Black Glass slag consumes contaminates like lava
• Low-Hydrogen Toughness – Designed for tough maintenance applications
• Special double-coated Chem-A-Tized coating provides better arc control, low spatter and better bead appearance
• Has the cleaners in the outside coating and the arc stabilizers on the inside, where they’re needed to improve performance
• Operates on AC or DCEP
• Easy to use in all positions whether uphill, horizontal or overhead
• Designed to Operate at Lower Amperage – Reduced distortion and burn-through tenance applications
• Tensile Strength: Up to 87,000 PSI/600 Mpa
• Yield Strength: 72,000 PSI/496 Mpa
• Elongation: 31%
• Machinability: Excellent
• Hardness: 86 Rb
• Impact Resistance: 50 ft.-lbs. @ -20°F/-29°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG1043000B |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 5/32 " |
| Elongation | 31 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 86 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 15.32 lb |
