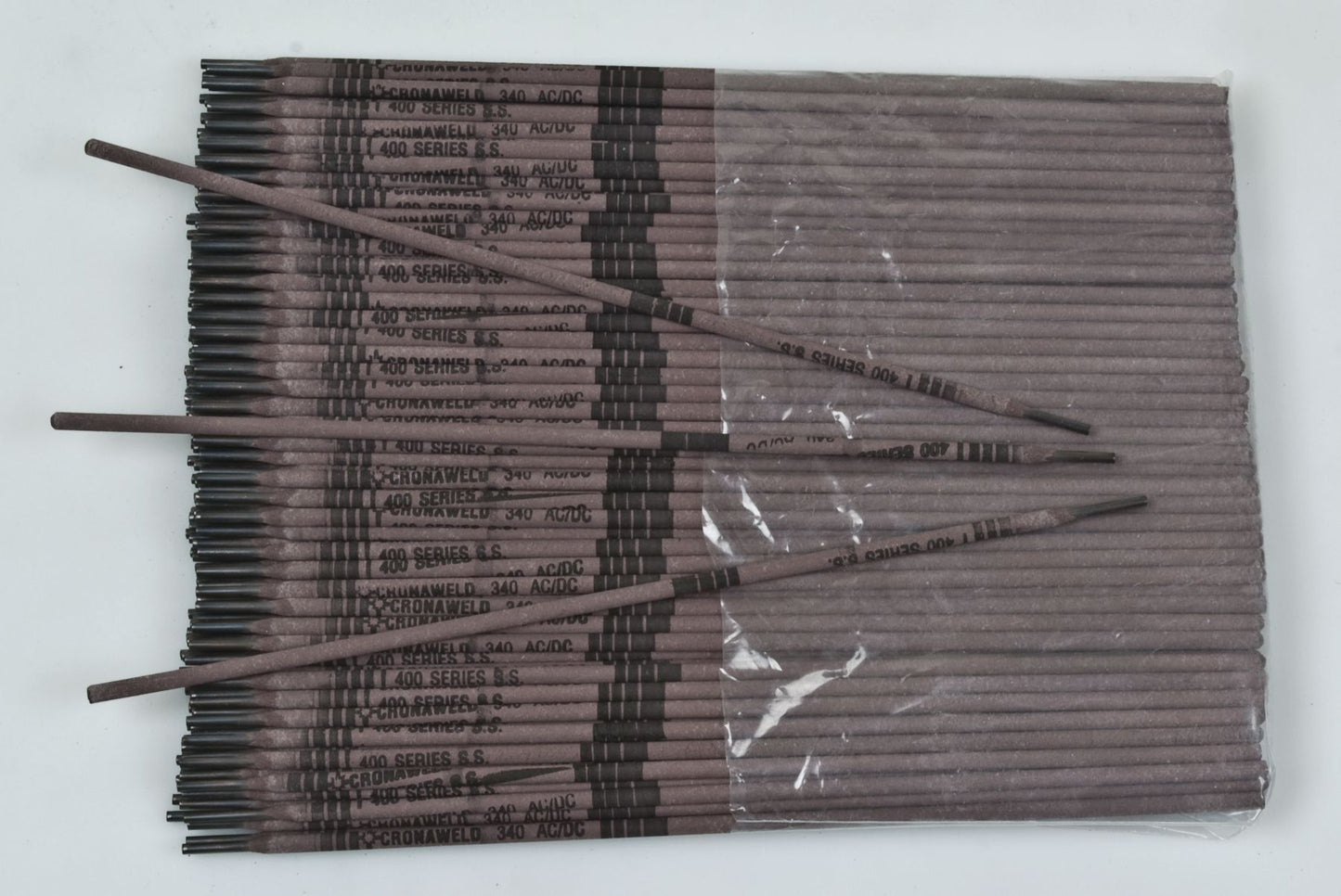

340 Chro-moly Stick Rod Electrode, Flux Coated, 40 HRC Hardness, 25% Elongation, 60 to 90 Amps, DCRP Polarity, 3/32"
(Pack of
5)
SKU:CW1028 Item#: CW1028
Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.
Superior Advantages
• Produces smooth, dense, porosity- and crack-free weld deposits
• Resistant to moderate corrosion and heat scaling (up to 1,200°F)
• Hard with excellent machinability
• Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC Reverse
Typical Applications
• Tubular frames and roll bars
• Forging dies
• Fractured tools and blades
• Shaft buildup
• Bearing surfaces
• Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
663 Self Shielding Mild Steel Flux Core Mig Wire .045X33LB
Couldn't load pickup availability
103 The Ultimate Low Hydrogen Mild Steel Electrode 3/32
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode 3/16
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
Round Soapstone 1/4 x 5"
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
211 Cast Iron TIG Wire 3/32"
Couldn't load pickup availability
109 High Strength Electrode 1/8
Couldn't load pickup availability
Product Description
Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.Superior Advantages
• Produces smooth, dense, porosity- and crack-free weld deposits
• Resistant to moderate corrosion and heat scaling (up to 1,200°F)
• Hard with excellent machinability
• Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC Reverse
Typical Applications
• Tubular frames and roll bars
• Forging dies
• Fractured tools and blades
• Shaft buildup
• Bearing surfaces
• Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1028 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 140,000 PSI |
| Elongation | 25 % |
| Base Metal | Chro-moly |
| Hardness | 40 HRC |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
