Home Welding Hardfacing Alloys Mod Abrasion/Mod Impacts (Martensitic) 172 Intermediate Abrasion And Impact Alloy 1/8X18
Hardfacing Alloys

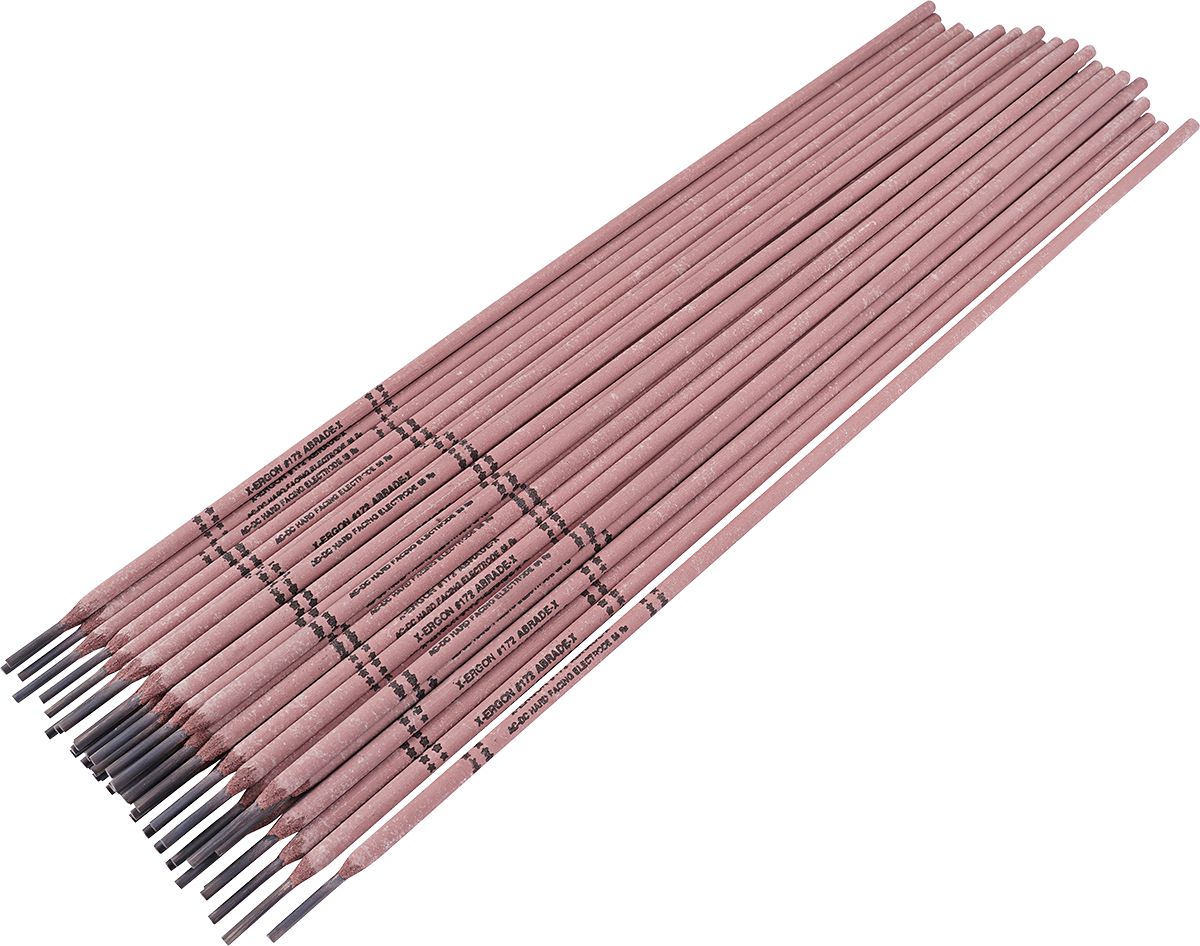

172 Intermediate Abrasion And Impact Alloy 5/32X18
172 Intermediate Abrasion And Impact Alloy 5/32X18

172 Very Tough Martensite Deposit Polarity Dcep Or Ac Hardness 58Rc Number Of Passes 3 All Position
(Pack of 5)

Item#: EG17240000

Lawson Products

Produces a very tough martensite deposit that will resist scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass overlays
• For use on carbon and abrasion resistant alloy steels including manganese steels
• Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8 mm³ vol. loss

Read More
Check Availability

Frequently Bought Together

375 Mild and Carbon Steel MIG Welding Wire 1/16

7310 Carbide Hard Facing MIG Welding Wire 0.045"

Item#: CW1803
7220 Carbide Hard Facing Stick Rod Electrode 1/4

7220 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CW1846
750 Martensitic Hard Facing Stick Electrode 5/32

750 Martensitic Hard Facing Stick Electrode 5/32"

Item#: CW1515
12

7" Auto-Adjust Pliers

Item#: DY89310301
11

18" Locking Smooth Operator Clamp

Item#: DY89840518
Extendable Handle Ratchet 3/8 Drive, 3/8

Extendable Handle Ratchet 3/8 Drive

Item#: DY89310027
281 Martensitic Hard Facing Welding Wire 0.045

281 Martensitic Hard Facing Welding Wire 0.045"

Item#: P12510
7500 Martensitic MIG Welding Wire 0.035

7500 Martensitic MIG Welding Wire 0.035"

Item#: CW3066
750 Martensitic Hard Facing Stick Electrode 3/16

750 Martensitic Hard Facing Stick Electrode 3/16"

Item#: CW1516
USS Flat Washer Thru-Hardened Steel 7/8

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446
Stepdown Butt Connector 22 to 18/16 to 14 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 22 to 18/16 to 14 AWG

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188
180-degree Wide Beam Head Light with Side Light

180-degree Wide Beam Head Light with Side Light

Item#: 1639013
Rosin Core Solder 0.032

Rosin Core Solder 0.032"

Item#: 20544
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"

Item#: 41757
338 Mild/Carbon Steel Stick Rod Electrode 1/8

338 Mild/Carbon Steel Stick Rod Electrode 1/8"

Item#: CW1058

Product Description

Produces a very tough martensite deposit that will resist scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass overlays
• For use on carbon and abrasion resistant alloy steels including manganese steels
• Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8 mm³ vol. loss

Technical Specifications

Item#: EG17240000
Welding Process Stick
Type Electrode
Diameter 1/8 "
Base Metal Steel To Steel
Hardness 58 HRC
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 6.265 lb
