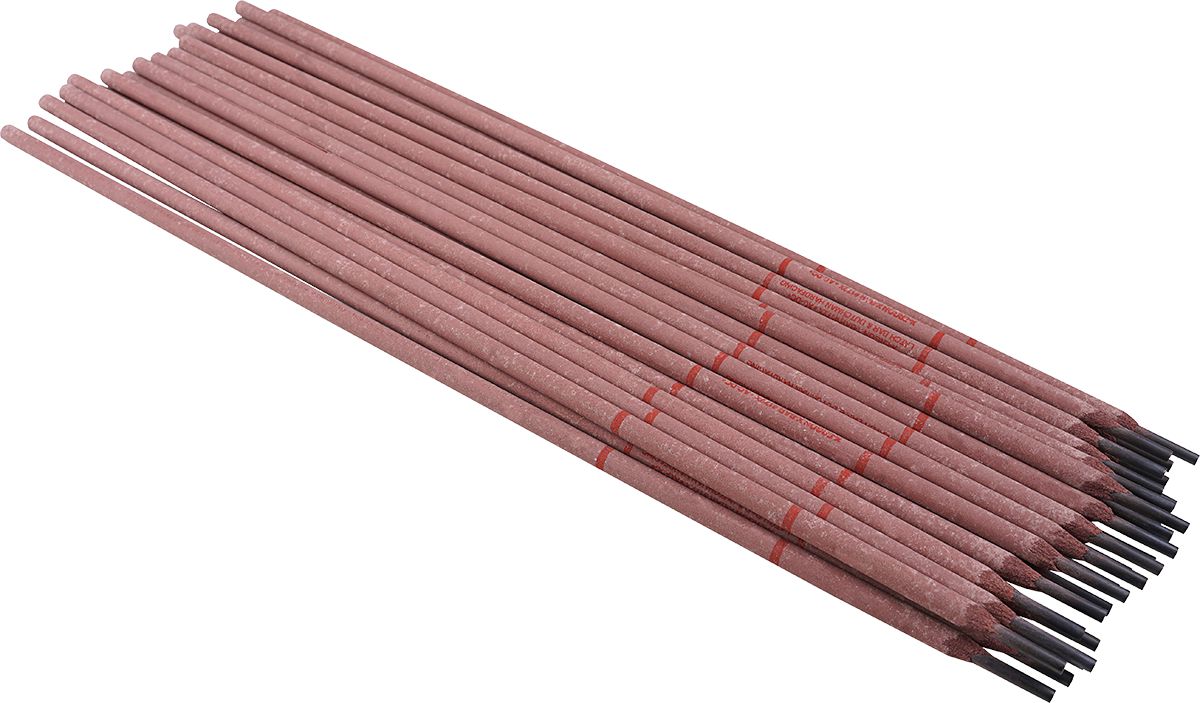

172 Latch Bar And Dutchman Hardfacing Alloy 3/16X18
(Pack of
5)
Extend service life on power shovel latch bars and dutchman with these long wearing hardfacing electrodes. Produces a very tough martensite deposit that will resist frictional metal-to-metal wear. Stands up to scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
Tough Resists cracking, chipping or spalling
All-Position Saves time and allows in-position welding
Super Smooth Welding Arc Easy to use with a smooth finish
Economical Saves money with long lasting overlays
Multipass Overlays Good for buildup
Versatile For use on carbon and abrasion resistant alloy steels including manganese steels
Sound Deposits Generally does not cross-check
Hardness: 58 Rc
Machinability: Grind only
Max Number of Passes: 3
Current: DCEP (DC+) or AC
ASTM G65 Abrasion Test: 355.8mm³ vol. loss
Frequently Bought Together

7109 Austenitic Hard Facing Welding Wire 0.045"
Couldn't load pickup availability

675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD
Couldn't load pickup availability

777 Austenitic Hard Facing Stick Electrode 5/32"
Couldn't load pickup availability

Hex Cap Screw Property Class 12.9 M20-2.5 x 90mm
Couldn't load pickup availability

Hex Head Bolt with 7/8" Washer Steel 5/16-18
Couldn't load pickup availability

Cable Tie 30" White
Couldn't load pickup availability

750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability

H3 Martensitic Hard Facing MIG Welding Wire 0.045"
Couldn't load pickup availability

7500 Martensitic MIG Welding Wire 0.045"
Couldn't load pickup availability

Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability

SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability

Rosin Core Solder 1/16"
Couldn't load pickup availability

Rosin Core Solder 1/16"
Couldn't load pickup availability

201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Product Description
Extend service life on power shovel latch bars and dutchman with these long wearing hardfacing electrodes. Produces a very tough martensite deposit that will resist frictional metal-to-metal wear. Stands up to scratching, sliding and gouging abrasion while resisting moderate to heavy impact. Tough Resists cracking, chipping or spalling
All-Position Saves time and allows in-position welding
Super Smooth Welding Arc Easy to use with a smooth finish
Economical Saves money with long lasting overlays
Multipass Overlays Good for buildup
Versatile For use on carbon and abrasion resistant alloy steels including manganese steels
Sound Deposits Generally does not cross-check
Hardness: 58 Rc
Machinability: Grind only
Max Number of Passes: 3
Current: DCEP (DC+) or AC
ASTM G65 Abrasion Test: 355.8mm³ vol. loss
Technical Specifications
Item#: | EG1722000X |
---|---|
Welding Process | Stick |
Type | Electrode |
Diameter | 3/16 " |
Base Metal | Steel To Steel |
Hardness | 58 HRC |
Polarity | DCEP |
UNSPSC #: | 23271810 |
TAA Compliant: | Yes |
Weight: | 6.38 lb |
