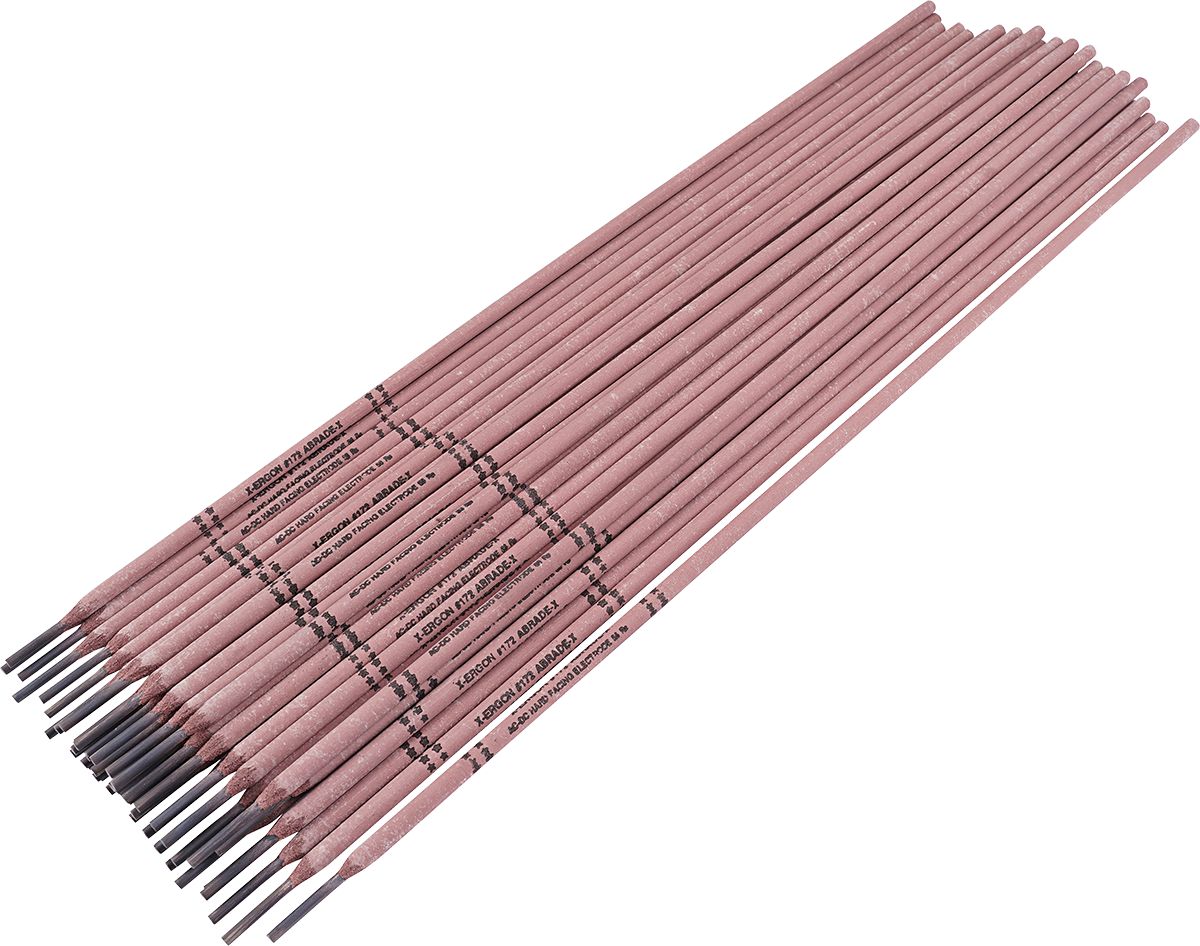

172 Very Tough Martensite Deposit Polarity Dcep Or Ac Hardness 58Rc Number Of Passes 3 All Position
(Pack of
5)
Produces a very tough martensite deposit that will resist scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
Tough Resists cracking, chipping or spalling
All-Position Saves time and allows in-position welding
Super Smooth Welding Arc Easy to use with a smooth finish
Economical Saves money with long lasting overlays
Multipass overlays
For use on carbon and abrasion resistant alloy steels including manganese steels
Generally does not cross-check
Hardness: 58 Rc
Machinability: Grind only
Max Number of Passes: 3
Current: DCEP (DC+) or AC
ASTM G65 Abrasion Test: 355.8 mm³ vol. loss
Frequently Bought Together
173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
Couldn't load pickup availability
671 Impact And Abrasion Resistant Flux Cored Self Sheilded 1/16X25LB
Couldn't load pickup availability
7220 Carbide Hard Facing Stick Rod Electrode 3/8"
Couldn't load pickup availability
172 Intermediate Abrasion And Impact Alloy 1/8X18
Couldn't load pickup availability
7500 Martensitic Hard Facing Welding Wire 1/16"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
Oxy Acetylene Fuel and Oxygen Quick Connector
Couldn't load pickup availability
Product Description
Produces a very tough martensite deposit that will resist scratching, sliding and gouging abrasion while resisting moderate to heavy impact. Tough Resists cracking, chipping or spalling
All-Position Saves time and allows in-position welding
Super Smooth Welding Arc Easy to use with a smooth finish
Economical Saves money with long lasting overlays
Multipass overlays
For use on carbon and abrasion resistant alloy steels including manganese steels
Generally does not cross-check
Hardness: 58 Rc
Machinability: Grind only
Max Number of Passes: 3
Current: DCEP (DC+) or AC
ASTM G65 Abrasion Test: 355.8 mm³ vol. loss
Technical Specifications
| Item#: | EG17230000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 5/32 " |
| Base Metal | Steel To Steel |
| Hardness | 58 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.39 lb |
