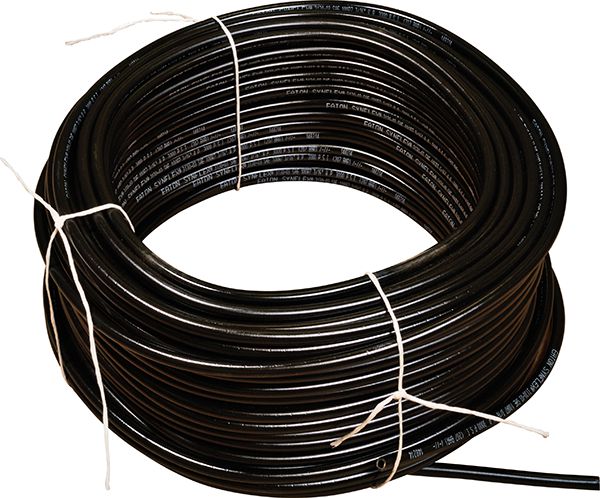

3130 Hydraulic Hose, Polyurethane, Spiral/Braided Synthetic Fiber, 3/16" ID, 0.427" OD, 250' Length, 3000PSI, SAE 100R7
(Pack of
250)
SKU:20427 03 Item#: 20427 03
• Agency Ratings: SAE 100R7
• Fittings Certified: 903 Series
• Agency Approvals: None
• Construction:
– Inner Tube: Nylon-lined core tube
– Reinforcement: Spiral or braided synthetic fiber**
– Cover: Black perforated polyurethane
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +65°C)
• Application Note: General hydraulic operations, fork and man lifts, material handling, high-pressure gas transfer, chemical transfer
**3/4" – 1" hoses are spiral. All others are braided.
Frequently Bought Together
EC215 Winner Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.82" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 1.11" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 1/4"
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.33" x 500'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.49" x 50'
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.66" x 250'
Couldn't load pickup availability
3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Swivel Head Ratchet 1/2 Drive
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Swivel Head Ratchet 1/2 Drive
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R7• Fittings Certified: 903 Series
• Agency Approvals: None
• Construction:
– Inner Tube: Nylon-lined core tube
– Reinforcement: Spiral or braided synthetic fiber**
– Cover: Black perforated polyurethane
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +65°C)
• Application Note: General hydraulic operations, fork and man lifts, material handling, high-pressure gas transfer, chemical transfer
**3/4" – 1" hoses are spiral. All others are braided.
Technical Specifications
| Item#: | 20427 03 |
|---|---|
| Manufacturer Model #: | 3130-03003 |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 3130 |
| Manufacturer Series Name | 3130 |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Inner Tube Material | Nylon-lined Core |
| Hose Reinforcement | Spiraled or braided synthetic fiber reinforcement |
| Hose Cover Material | Perforated Polyurethane |
| Fitting Series | U Series or 903 Series |
| Temperature | Petroleum based fluids -40F to 212F, Water based or fire-resistant fluids to +150F |
| Color | Black |
| Size | 3/16 (-3) |
| SynFlex Part No. | 3130-03003 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 12.5 lb |
