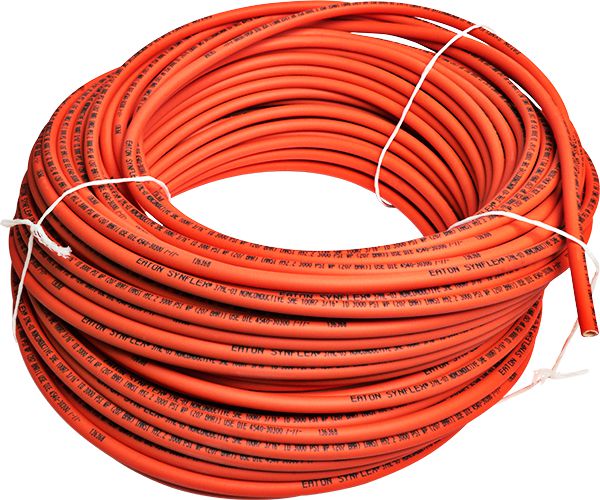

37AL Hydraulic Hose, Polyurethane, Braided Synthetic Fiber, Orange, 3/16" ID, 0.425" OD, 250' Length, 3000PSI, SAE 100R7NC
(Pack of
250)
SKU:20432 03 Item#: 20432 03
• Agency Ratings: SAE 100R7; Non-Conductive SAE J517
• Fittings Certified: 903 Series
• Agency Approvals: ANSI A92.2 for vehicle-mounted devices
• Construction:
– Inner Tube: Polyester core tube
– Reinforcement: Braided synthetic fiber
– Cover: Orange, non-perforated, non-stick polyurethane
• Temperature Range:
– Petroleum-based fluids: –65°F to +212°F (–54°C to +100°C)
– Water-based fluids: –65°F to +140°F (–54°C to +60°C)
• Application Notes:– Less than 50 microamperes leakage when subjected to 75,000 volts/ft. for five minutes– UV- and abrasion-resistant cover– Flexible in low temperatures– Used in electric utility truck systems and other mobile boom equipped vehicles
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.81" x 250'
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
37AL Hydraulic Hose Thermoplastic 0.815" x 250'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.43" x 50'
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.75" x 50'
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R7; Non-Conductive SAE J517• Fittings Certified: 903 Series
• Agency Approvals: ANSI A92.2 for vehicle-mounted devices
• Construction:
– Inner Tube: Polyester core tube
– Reinforcement: Braided synthetic fiber
– Cover: Orange, non-perforated, non-stick polyurethane
• Temperature Range:
– Petroleum-based fluids: –65°F to +212°F (–54°C to +100°C)
– Water-based fluids: –65°F to +140°F (–54°C to +60°C)
• Application Notes:– Less than 50 microamperes leakage when subjected to 75,000 volts/ft. for five minutes– UV- and abrasion-resistant cover– Flexible in low temperatures– Used in electric utility truck systems and other mobile boom equipped vehicles
Technical Specifications
| Item#: | 20432 03 |
|---|---|
| Manufacturer Model #: | 37AL-03003 |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure - Non-Conductive |
| Industry Rating 1 | SAE 100R7 NC |
| Industry Rating 2 | ANSI A92.2 |
| Manufacturer Series Number | 37AL |
| Manufacturer Series Name | Synflex |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Inner Tube Material | Polyester Core Tube |
| Hose Reinforcement | Braided synthetic fiber reinforcement |
| Hose Cover Material | Non-perforated, non-stick polyurethane |
| Fitting Series | 903 Series |
| Temperature | Petroleum based fluids -65F to +212F, Water-based or fire-resistant fluids to 140F |
| Color | Orange |
| Size | 3/16 (-3) |
| SynFlex Part No. | 37AL-03003 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 15.0 lb |
