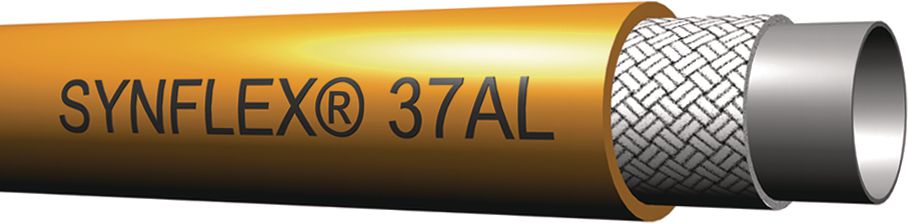

37AL Hydraulic Hose, Polyurethane, Braided Synthetic Fiber, Orange, 1/2" ID, 0.815" OD, 250' Length, 2250PSI, SAE 100R7NC
(Pack of
250)
SKU:20432 08 Item#: 20432 08
• Agency Ratings: SAE 100R7; Non-Conductive SAE J517
• Fittings Certified: 903 Series
• Agency Approvals: ANSI A92.2 for vehicle-mounted devices
• Construction:
– Inner Tube: Polyester core tube
– Reinforcement: Braided synthetic fiber
– Cover: Orange, non-perforated, non-stick polyurethane
• Temperature Range:
– Petroleum-based fluids: –65°F to +212°F (–54°C to +100°C)
– Water-based fluids: –65°F to +140°F (–54°C to +60°C)
• Application Notes:– Less than 50 microamperes leakage when subjected to 75,000 volts/ft. for five minutes– UV- and abrasion-resistant cover– Flexible in low temperatures– Used in electric utility truck systems and other mobile boom equipped vehicles
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.54" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.68" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 7/8-14
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.49" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.43" x 500'
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R7; Non-Conductive SAE J517• Fittings Certified: 903 Series
• Agency Approvals: ANSI A92.2 for vehicle-mounted devices
• Construction:
– Inner Tube: Polyester core tube
– Reinforcement: Braided synthetic fiber
– Cover: Orange, non-perforated, non-stick polyurethane
• Temperature Range:
– Petroleum-based fluids: –65°F to +212°F (–54°C to +100°C)
– Water-based fluids: –65°F to +140°F (–54°C to +60°C)
• Application Notes:– Less than 50 microamperes leakage when subjected to 75,000 volts/ft. for five minutes– UV- and abrasion-resistant cover– Flexible in low temperatures– Used in electric utility truck systems and other mobile boom equipped vehicles
Technical Specifications
| Item#: | 20432 08 |
|---|---|
| Manufacturer Model #: | 37AL-08003 |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure - Non-Conductive |
| Industry Rating 1 | SAE 100R7 NC |
| Industry Rating 2 | ANSI A92.2 |
| Manufacturer Series Number | 37AL |
| Manufacturer Series Name | Synflex |
| Working Pressure | 2,250 PSI |
| Burst Pressure | 9,000 PSI |
| Inner Tube Material | Polyester Core Tube |
| Hose Reinforcement | Braided synthetic fiber reinforcement |
| Hose Cover Material | Non-perforated, non-stick polyurethane |
| Fitting Series | 903 Series |
| Temperature | Petroleum based fluids -65F to +212F, Water-based or fire-resistant fluids to 140F |
| Color | Orange |
| Size | 1/2 (-8) |
| SynFlex Part No. | 37AL-08003 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 34.0 lb |
