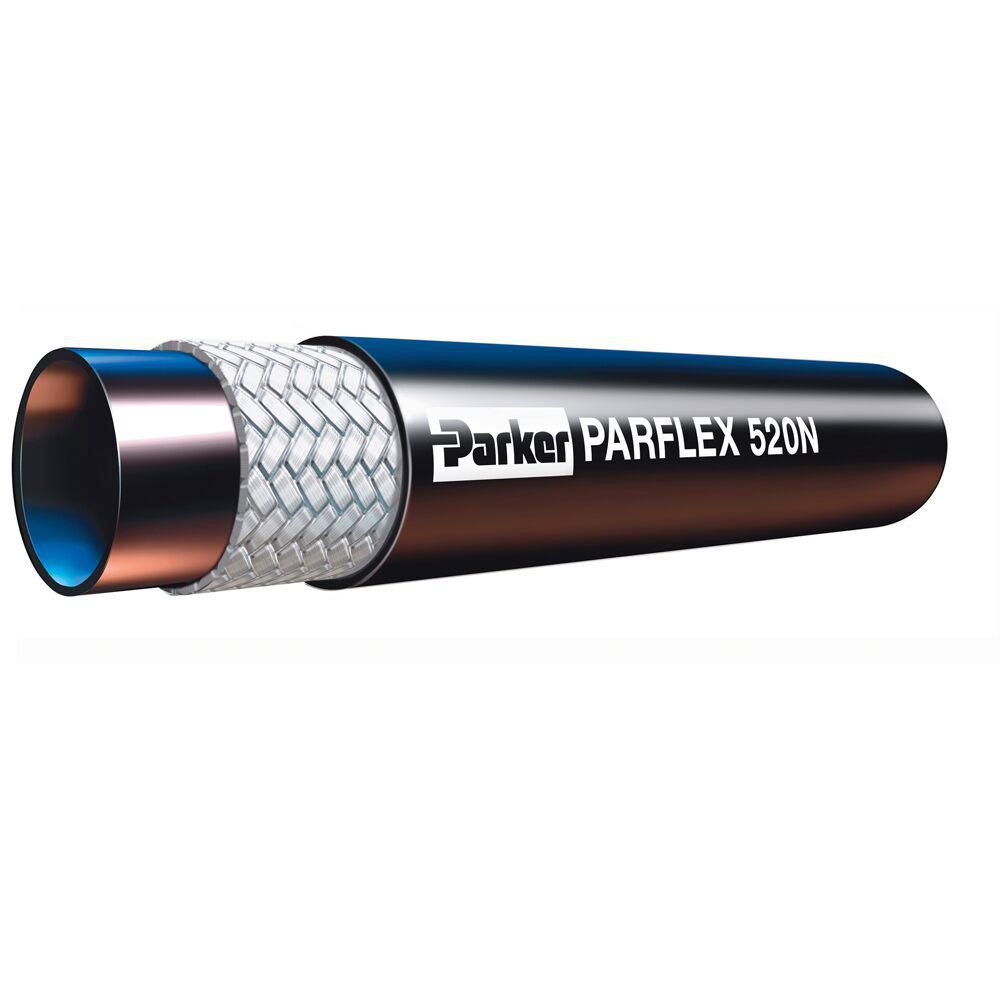

520N Hydraulic Hose, Urethane, 1-Steel Braided, 1/2" ID, 0.81" OD, 50' Length, 3,500PSI, SAE 100R8
(Pack of
50)
SKU:88647 Item#: 88647
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.
• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 1.09" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.69" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 250'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.57" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.33" x 250'
Couldn't load pickup availability
Product Description
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 88647 |
|---|---|
| Manufacturer Model #: | 520N-8 |
| Type | Thermoplastic Hose |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R8 |
| Manufacturer Series Number | 520N |
| Manufacturer Series Name | Parflex |
| Dash Size | -8 |
| Working Pressure | 3,500 PSI |
| Burst Pressure | 14,000 PSI |
| Minimum Bend Radius | 4 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Aramid Fiber |
| Hose Cover Material | Perforated Urethane |
| Fitting Series | 55 |
| Temperature | -40F to +212F |
| Color | Black |
| Size | 1/2 (-8) |
| Parker Crimp Fitting Series | 55 |
| Swage Die Selection | 88806 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 7.0 lb |
