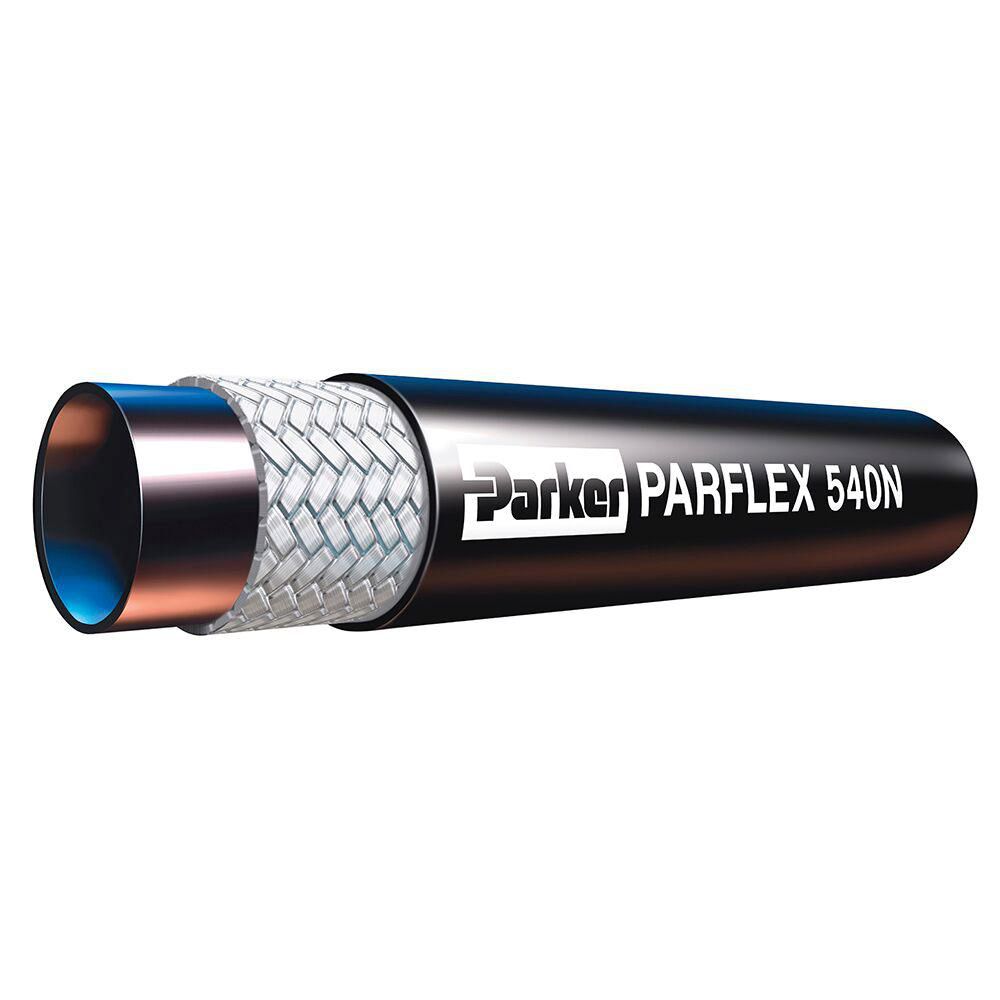

540N Hydraulic Hose, Urethane, 1-Steel Braided, 3/16" ID, 0.43" OD, 50' Length, 3000PSI, SAE 100R7
(Pack of
50)
SKU:88605 Item#: 88605
Bonded for optimum kink resistance and high flexibility – and offering excellent overall chemical compatibility. 540N Medium Pressure Hoses are recommended for hydraulic and pneumatic circuits and systems: agricultural spraying, urethane foam mixers, robotics, fire-resistant fluids and water.
• Polymeric core tube, single fiber reinforcement, abrasion-resistant, black perforated urethane cover
SAE 100R7
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Limited to 135°F (57°C) for synthetic hydraulic and water-based fluids• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R7 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
MXT Hydraulic Hose Rubber 0.68" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.54" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 7/8-14
Couldn't load pickup availability
Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.49" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.43" x 500'
Couldn't load pickup availability
Product Description
Bonded for optimum kink resistance and high flexibility – and offering excellent overall chemical compatibility. 540N Medium Pressure Hoses are recommended for hydraulic and pneumatic circuits and systems: agricultural spraying, urethane foam mixers, robotics, fire-resistant fluids and water.• Polymeric core tube, single fiber reinforcement, abrasion-resistant, black perforated urethane cover
SAE 100R7
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Limited to 135°F (57°C) for synthetic hydraulic and water-based fluids• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R7 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 88605 |
|---|---|
| Manufacturer Model #: | 540N-3 |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 540N |
| Manufacturer Series Name | Parflex |
| Dash Size | -3 |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Minimum Bend Radius | 3/4 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Fiber Reinforcement |
| Hose Cover Material | Perforated Polyurethane |
| Temperature | -40F to +212F |
| Size | 3/16 (-3) |
| Parker Crimp Fitting Series | 55 |
| Swage Die Selection | 88802 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 3.5 lb |
