Home Welding Hardfacing Alloys High Abrasion/Low Impact (Carbide) 7350 Carbide Hard Facing Stick Rod Electrode 1/2"
Hardfacing Alloys

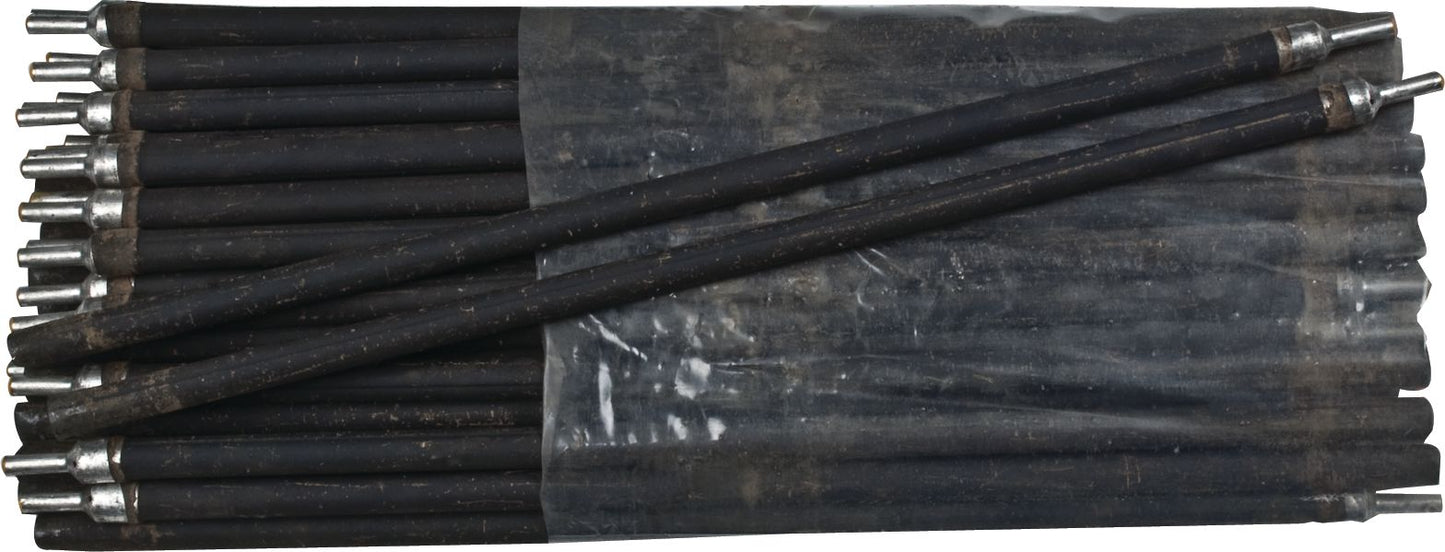

7350 Carbide Hard Facing Stick Rod Electrode 1/2
7350 Carbide Hard Facing Stick Rod Electrode 1/2

7350 Carbide Hard Facing Stick Rod Electrode, 50 to 64 HRC Hardness, 140 to 300 Amps, AC/DCRP Polarity, 18" Length, 1/2"
(Pack of 25)

Item#: CW1917

Cronatron®

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)
No. of Passes: Two
Polarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 13-18

Frequently Bought Together

711 Carbide Hard Facing Stick Rod Electrode 5/32

711 Carbide Hard Facing Stick Rod Electrode 5/32"

Item#: CS1065
281 Martensitic Stick Rod Electrode 1/8

281 Martensitic Stick Rod Electrode 1/8"

Item#: P12036
7350 Carbide Hard Facing Stick Rod Electrode 1/4

7350 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CW1916
375 Mild and Carbon Steel MIG Welding Wire 1/16

7310 Carbide Hard Facing MIG Welding Wire 1/16"

Item#: CW1785
246 Carbide Hard Facing Stick Rod Electrode 1/4

246 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: P12999
7355 Carbide Hard Facing Stick Rod Electrode Kit

7355 Carbide Hard Facing Stick Rod Electrode Kit

Item#: LP850
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100
SAE Flat Washer Thru-Hardened Steel 5/8

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512
Rosin Core Solder 1/16

Rosin Core Solder 1/16"

Item#: 20545
331 Mild and Carbon Steel MIG Welding Wire 0.030

331 Mild and Carbon Steel MIG Welding Wire 0.03"

Item#: CW5130
750 Martensitic Hard Facing Stick Electrode 1/8

750 Martensitic Hard Facing Stick Electrode 1/8"

Item#: CW1514

Product Description

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)
No. of Passes: Two
Polarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.

Technical Specifications

Item#: CW1917
Welding Process Stick
Type Tubular
Diameter 1/2 "
Length 18 "
Base Metal Carbide
Carbide Type Chromium
Hardness 50-64 HRC
Polarity AC/DCRP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 26.17 lb
