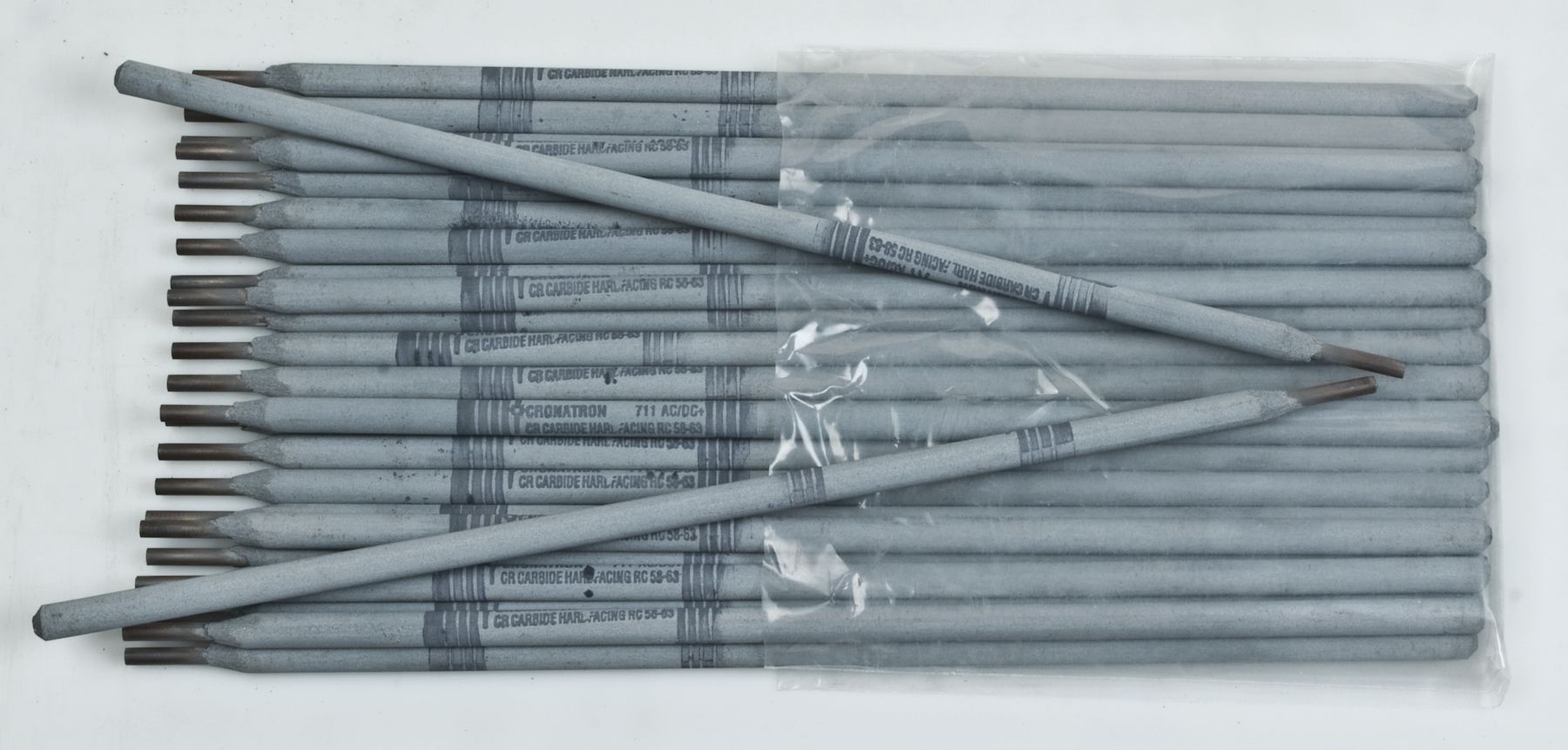

7355 Carbide Hard Facing Stick Rod Electrode, 51 to 61 HRC Hardness, 75 to 200 Amps, AC/DCRP Polarity, 18" Length, 3/8"
(Pack of
25)
Enhance the durability and performance of your equipment with the 7355 Carbide Hardfacing Stick Rod Electrode. Engineered specifically for high abrasion resistance in low to moderate impact conditions, this hardfacing electrode is ideal for earthmoving equipment, agricultural tools, and other components exposed to wear and tear. Designed for the versatility professionals need, it supports AC or DC reverse polarity and excels in out-of-position welding, making vertical and overhead applications hassle-free. Perfect for austenitic manganese steel, the 7355 ensures exceptional abrasion resistance while extending the lifespan of vital parts.
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Hardness: Rc 62 (2nd pass)No. of Passes: Up to threePolarity: AC or DC Reverse
Can be used for out-of-position welding
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-17
Frequently Bought Together
7220 Carbide Hard Facing Stick Rod Electrode 1/2"
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 3/16"
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 3/16
Couldn't load pickup availability
676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/2X18IN
Couldn't load pickup availability
246 Carbide Hard Facing Stick Rod Electrode 1/2"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 1/8"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 5/32"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
Enhance the durability and performance of your equipment with the 7355 Carbide Hardfacing Stick Rod Electrode. Engineered specifically for high abrasion resistance in low to moderate impact conditions, this hardfacing electrode is ideal for earthmoving equipment, agricultural tools, and other components exposed to wear and tear. Designed for the versatility professionals need, it supports AC or DC reverse polarity and excels in out-of-position welding, making vertical and overhead applications hassle-free. Perfect for austenitic manganese steel, the 7355 ensures exceptional abrasion resistance while extending the lifespan of vital parts.• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Hardness: Rc 62 (2nd pass)No. of Passes: Up to threePolarity: AC or DC Reverse
Can be used for out-of-position welding
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Technical Specifications
| Item#: | CW1913 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 3/8 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Chromium |
| Hardness | 51-61 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 26.0 lb |
