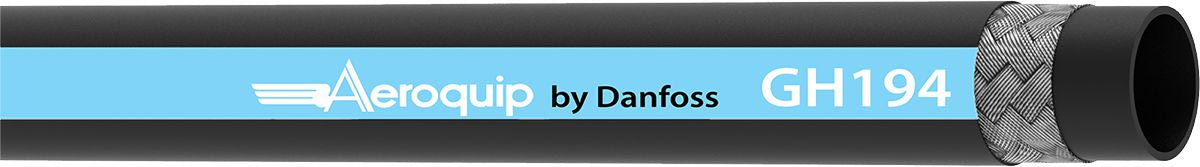

Aeroquip GH194 Hydraulic Hose, 1 Ply Braid, 1-1/2" ID, 1.50" OD, 50' Length, 724 PSI, SAE 100R1
(Pack of
50)
SKU:1638944 Item#: 1638944
• Agency Ratings: SAE 100R1 Type S and EN853 1SN
• Fittings Certified: 1A, 1SA Series
• Agency Approval: MSHA, DNV
• Construction:
– Inner Tube: AQP Synthetic Rubber
– Reinforcement: One steel braid
– Cover: Elastomer
• Operating Temperature Range: –40°F to +302°F (–40°C to +150°C)
• Application Notes: Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids
Frequently Bought Together
M2T Hydraulic Hose Rubber 1.11" x 50'
Couldn't load pickup availability
H180 WeatherSHIELDâ„¢ Hydraulic Hose 0.78" x 50'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.59" x 50'
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1/2" x 1/2-14
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 1-1/2"
Couldn't load pickup availability
CryoBoost 3/8" Dia. 1/4" Hex Shank Drill Bit
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 9/16-12 x 2-1/2"
Couldn't load pickup availability
H180 WeatherSHIELDâ„¢ Hydraulic Hose 0.78" x 50'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.59" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 1.41" x 250'
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R1 Type S and EN853 1SN• Fittings Certified: 1A, 1SA Series
• Agency Approval: MSHA, DNV
• Construction:
– Inner Tube: AQP Synthetic Rubber
– Reinforcement: One steel braid
– Cover: Elastomer
• Operating Temperature Range: –40°F to +302°F (–40°C to +150°C)
• Application Notes: Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids
Technical Specifications
| Item#: | 1638944 |
|---|---|
| Industrial / Hydraulic | Industrial/Hydraulic |
| Type | Rubber - Steel Braided |
| Industry Rating 1 | SAE 100R1 Type S |
| Industry Rating 2 | EN853 1SN |
| Industry Rating | DNV, MSHA Approved |
| Manufacturer Series Number | GH194 |
| Manufacturer Series Name | Aeroquip |
| I.D. | 1-1/2 (-24) " |
| Hose I.D. | 1.50 " |
| Hose O.D. | 2.05 " |
| Working Pressure | 725 PSI |
| Burst Pressure | 2,900 PSI |
| Fitting Series | 1A, 1SA |
| Bend Radius | 19.69 " |
| Inner Tube Material | AQP Synthetic Rubber |
| Hose Reinforcement | 1 wire braid |
| Hose Cover Material | Elastomer |
| Minimum Temperature | -40 °F |
| Maximum Temperature | 302 °F |
| Color | Blue |
| Length | 50 ft |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 52.0 lb |
