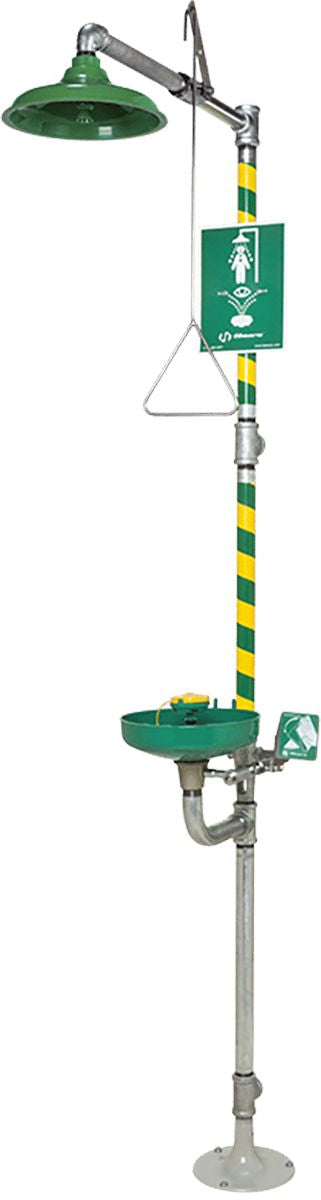

Axion MSR Emergency Shower and Eye/Face Wash
(Pack of
1.0)
Combination shower and eye/face wash includes a green ABS plastic 11" (27.9 cm) bowl. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units also include an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Units also include Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" NPT supply.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris, and ball valves with stainless steel ball and stem for durability
• Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Emergency Drench Shower
Couldn't load pickup availability
Axion MSR Sink Mount Eye/Face Wash
Couldn't load pickup availability
Axion MSR Deck Mount Eye/Face Wash
Couldn't load pickup availability
Eye Wash Station Portable Pressurized
Couldn't load pickup availability
WypAll X60 Teri Wiper 12.5 x 13.4"
Couldn't load pickup availability
Premium Polypropylene Packaging Tape 2" x 55 Yards
Couldn't load pickup availability
Extended Flexible Spout Measuring Container 5Qt
Couldn't load pickup availability
Universal Single-Ply Medium Weight Sorbent Pads
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Sqweeze® ZERO – Sugar Free Hydration Freeze Pops
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Product Description
Combination shower and eye/face wash includes a green ABS plastic 11" (27.9 cm) bowl. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units also include an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Units also include Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" NPT supply.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris, and ball valves with stainless steel ball and stem for durability
• Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1648005 |
|---|---|
| Style | Combination Drench Showers and Eye-Face Wash |
| Body Material | Plastic |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Shower with Eye/Face Wash Station |
| Drench Shower Material | Plastic |
| Eye Wash Material | Plastic |
| Water Supply | 1-1/4" NPT |
| Includes | Eye/Face Wash Head, ABS Plastic Showerhead, Green ABS Plastic 11" Bowl, Inspection Tag, Cast Iron 9" Dia. Floor Flange, Sch 40 Galv Steel Pipe/Fittings, Safety Green and Bright Yellow Stripes, Sign, Universal Sign, Yellow Plastic Dust Cover |
| Mount Style | Floor |
| Material | Plastic/Galvanized Steel/Chrome-Plated Brass |
| Flow Rate | 20 gal/min |
| Description | Shower with Eye/Face Wash Station |
| Color | Silver/Green/Yellow |
| Height | 93-1/4 " |
| Eyewash Bowl Diameter | 11 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
