Home Automotive Hardware Dual End Threaded Stud 1/2 SAE x 1/2 USS 3-1/2"
Automotive Hardware

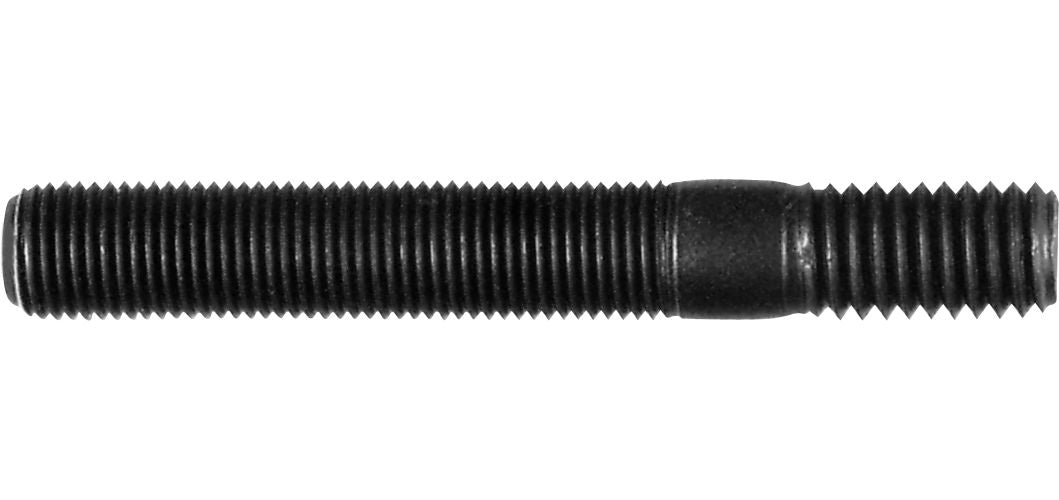

Dual End Threaded Stud 1/2 SAE x 1/2 USS 3-1/2"
(Pack of 10.0)

Lawson Products

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 21-4, 21-5

Frequently Bought Together


Shroud Insulating Button Nylon 11/16"

Item#: P21462

Radiator Panel Retainer Nylon 1"

Item#: P20566

Front Bumper Cover Push-Type Retainer Nylon 18mm

Item#: KT13454

Wheel House Molding Split Rivet Aluminum 3/16"

Item#: P68087

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Phillips Round Washer Head Trim Drill Point Screw

Item#: P30411

Hex Nut Grade 8 Alloy Steel 5/8-11

Item#: A106

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

0.50 oz. MC Style Plasteel Clip-On Weight

Item#: 1580286

IAWZ Series Zinc Clip-On Wheel Weight 45g

Item#: KT14892

TALZ Series Zinc Clip-On Wheel Weight 1oz

Item#: KT15072

Dual End Threaded Stud 7/16 SAE x 7/16 USS 3"

Item#: 10531

Dual End Threaded Stud 5/16 SAE x 5/16 USS 2"

Item#: 10510

Dayton Wheel Rim Stud 3/4-10 x 3-9/16"

Item#: 30142

Product Description

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Technical Specifications

Item#: 10543
Diameter 1/2 SAE x 1/2 USS
Overall Length 3-1/2 "
SAE Nut End 2-1/4 "
USS Hub End 15/16 "
Approximate Length 15/16 "
UNSPSC #: 25171900
TAA Compliant: Yes
Weight: 1.68 lb
