Automotive Hardware

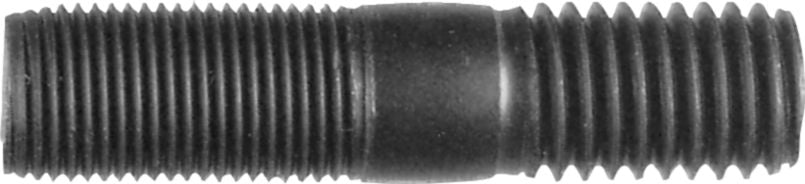

Dual End Threaded Stud 5/8 SAE x 5/8 USS 2-5/8"
(Pack of 10.0)

Lawson Products

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 21-4, 21-5

Frequently Bought Together


Front Bumper Fascia Retainer Plastic 15mm

Item#: P53961

Shroud Insulating Button Nylon 11/16"

Item#: P21462

Radiator Panel Retainer Nylon 1"

Item#: P20566

Metric Hex Flange Nut with Washer Faced M10-1.5

Item#: P35102

Wheel House Molding Split Rivet Aluminum 3/16"

Item#: P68087

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Hex Nut Grade 8 Alloy Steel 5/8-11

Item#: A106

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Steel Adhesive Wheel Weight 1oz

Item#: 1565352A

0.50 oz. MC Style Plasteel Clip-On Weight

Item#: 1580286

IAWZ Series Zinc Clip-On Wheel Weight 45g

Item#: KT14892

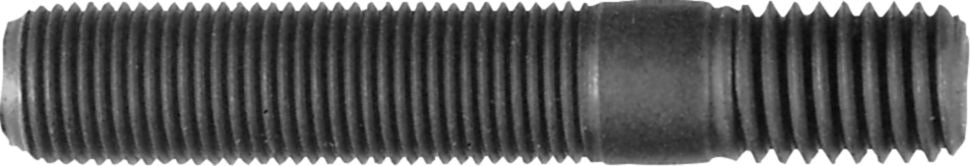

Dual End Threaded Stud 9/16 SAE x 9/16 USS 3-1/4"

Item#: 10546

Dual End Threaded Stud 7/16 SAE x 7/16 USS 3"

Item#: 10531

Dual End Threaded Stud 5/16 SAE x 5/16 USS 2"

Item#: 10510

Product Description

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Technical Specifications

Item#: 10547
Diameter 5/8 SAE x 5/8 USS
Overall Length 2-5/8 "
SAE Nut End 1-3/16 "
USS Hub End 1 "
Approximate Length 1 "
UNSPSC #: 25171900
TAA Compliant: No
Weight: 1.95 lb
