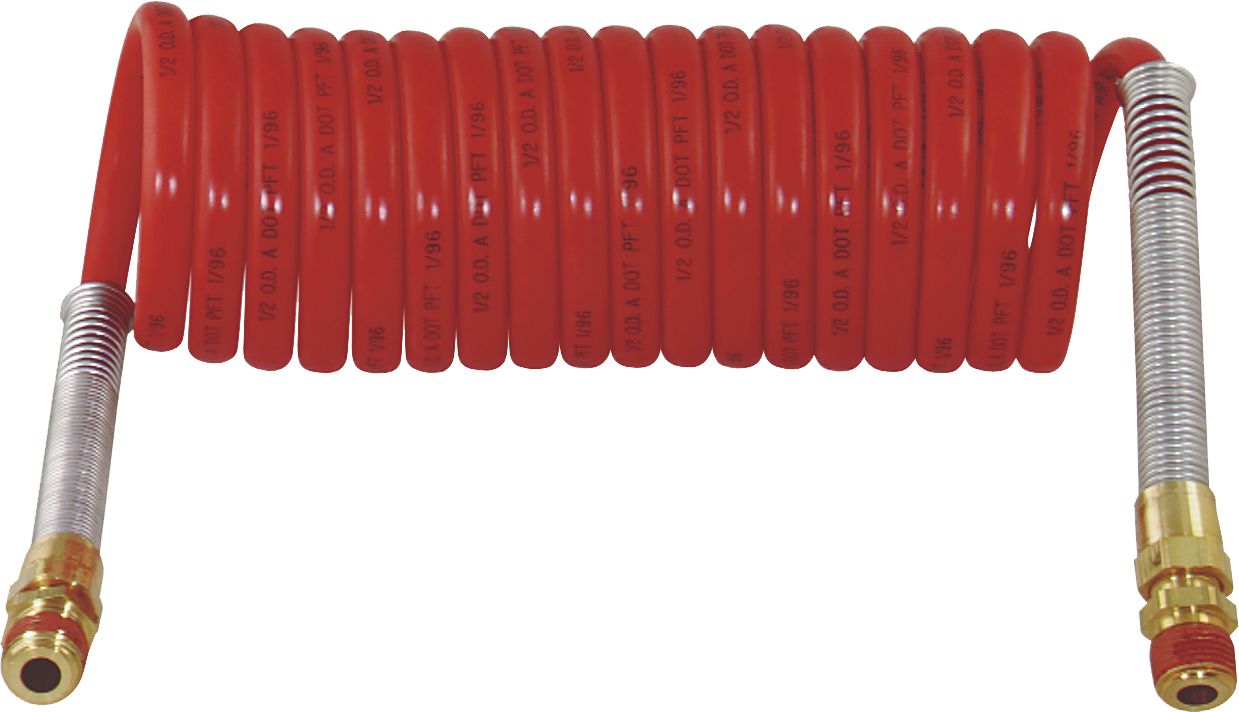

Eclipse Air Brake Coil Hose Assembly 1/2" OD x 12'
(Pack of
1.0)
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.
• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Terne Steel Hydraulic Brake Lines 3/16" x 40"
Couldn't load pickup availability
Inverted Flare Union Tee 3/16"
Couldn't load pickup availability
Inverted Flare Adapter 3/16" x 9/16-20
Couldn't load pickup availability
DOT Compression Elbow Male 45° Brass 3/8 x 1/4"
Couldn't load pickup availability
Super 77 Hose Clamp SS 1-1/4 to 2-1/8"
Couldn't load pickup availability
Grease Gun Thin Nose Hydraulic Coupler 1/8"
Couldn't load pickup availability
Super 77 Hose Clamp SS 3-1/2 to 4-3/8"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 1 to 1-3/4"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 5-1/4 to 6-1/8"
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 13/16 to 1-1/2"
Couldn't load pickup availability
HI-Tech Gloss Black
Couldn't load pickup availability
Releasable Cable Tie Hook and Loop 24" Yellow
Couldn't load pickup availability
JCASE In-Line Fuse Holder with Cap and Bracket 32V
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
10" Dual Jaw Adj and Pipe Wrench
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Product Description
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Technical Specifications
| Item#: | 1174942 |
|---|---|
| Category/Performance | Nylon Air Brake Coiled Hose Assemblies |
| Industry Rating 1 | SAE J844C, Type 3B |
| Industry Rating 2 | DOT-FMVSS 106 (49 CFR 571.106) |
| Connection Type A x B | Male NPT x Male NPT |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2-14 |
| Working Pressure | 150 PSI |
| O.D. | 1/2 " |
| Color | Red |
| Temperature | -65° to +200° F |
| Hose Reinforcement | Polyester yarn |
| Hose Cover Material | Polyamid |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 1.5 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
