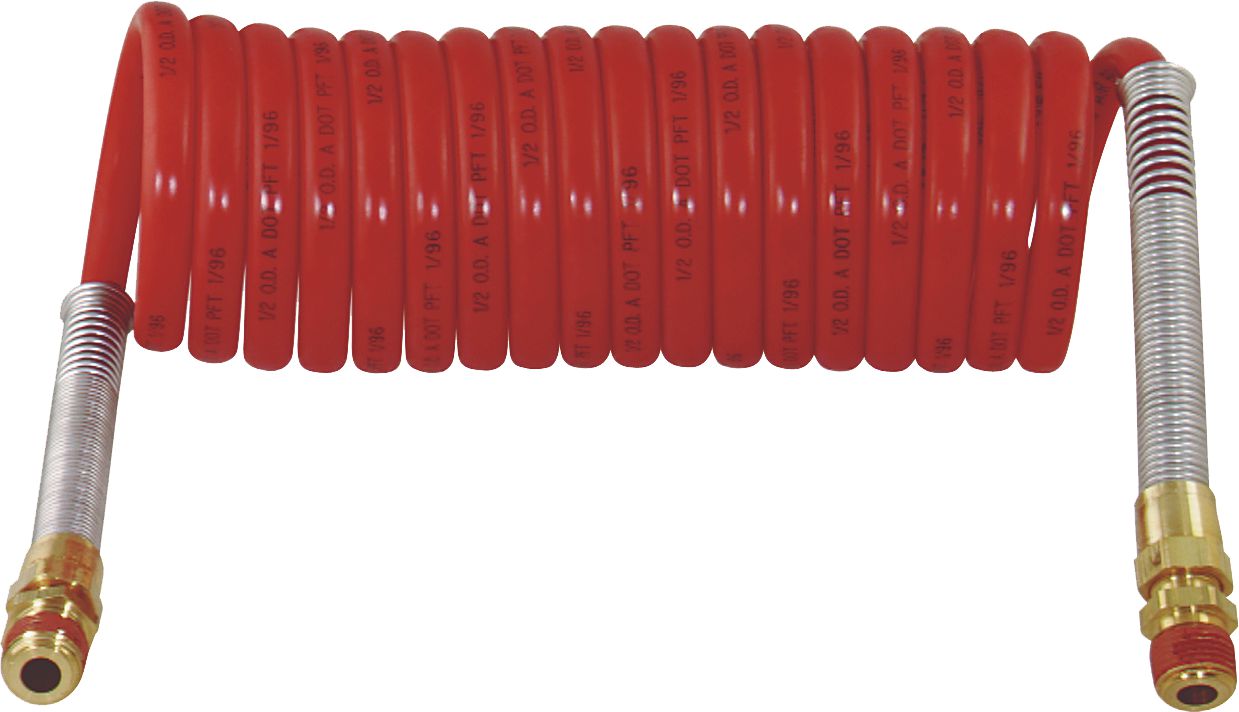

Eclipse™ Air Brake Coil Hose Assembly, 1/2" OD, 15' Length, Red, 150PSI, SAE J844C, Type 3B, 12" Pigtail
(Pack of
1)
SKU:1172769 Item#: 1172769
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.
• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Frequently Bought Together
Air Brake Tubing N-2 1/4" OD Blue
Couldn't load pickup availability
Air Brake Jumper Hose Assembly 3/8" ID x 48"
Couldn't load pickup availability
Air Brake Tubing T-Hose 3/8" OD Red
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
Constant Torque Hose Clamp SS 1-3/4 to 2-5/8"
Couldn't load pickup availability
Super 77 Hose Clamp SS 1-3/4 to 2-5/8"
Couldn't load pickup availability
Hose Clamp 304 SS 2-1/16 to 3"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Technical Specifications
| Item#: | 1172769 |
|---|---|
| Manufacturer Model #: | 15CAR12-12 |
| Category / Performance | Nylon Air Brake Coiled Hose Assemblies |
| Industry Rating 1 | SAE J844C, Type 3B |
| Industry Rating 2 | DOT-FMVSS 106 (49 CFR 571.106) |
| Hose O.D. | 1/2 " |
| Connection Type A x B | Male NPT x Male NPT |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2-14 |
| Working Pressure | 150 PSI |
| O.D. | 1/2 " |
| Extended Length | 15 ft |
| Color | Red |
| Temperature | -65° to +200° F |
| Hose Reinforcement | Polyester yarn |
| Hose Cover Material | Polyamid |
| Pigtail Length | 12 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 1.5 lb |
