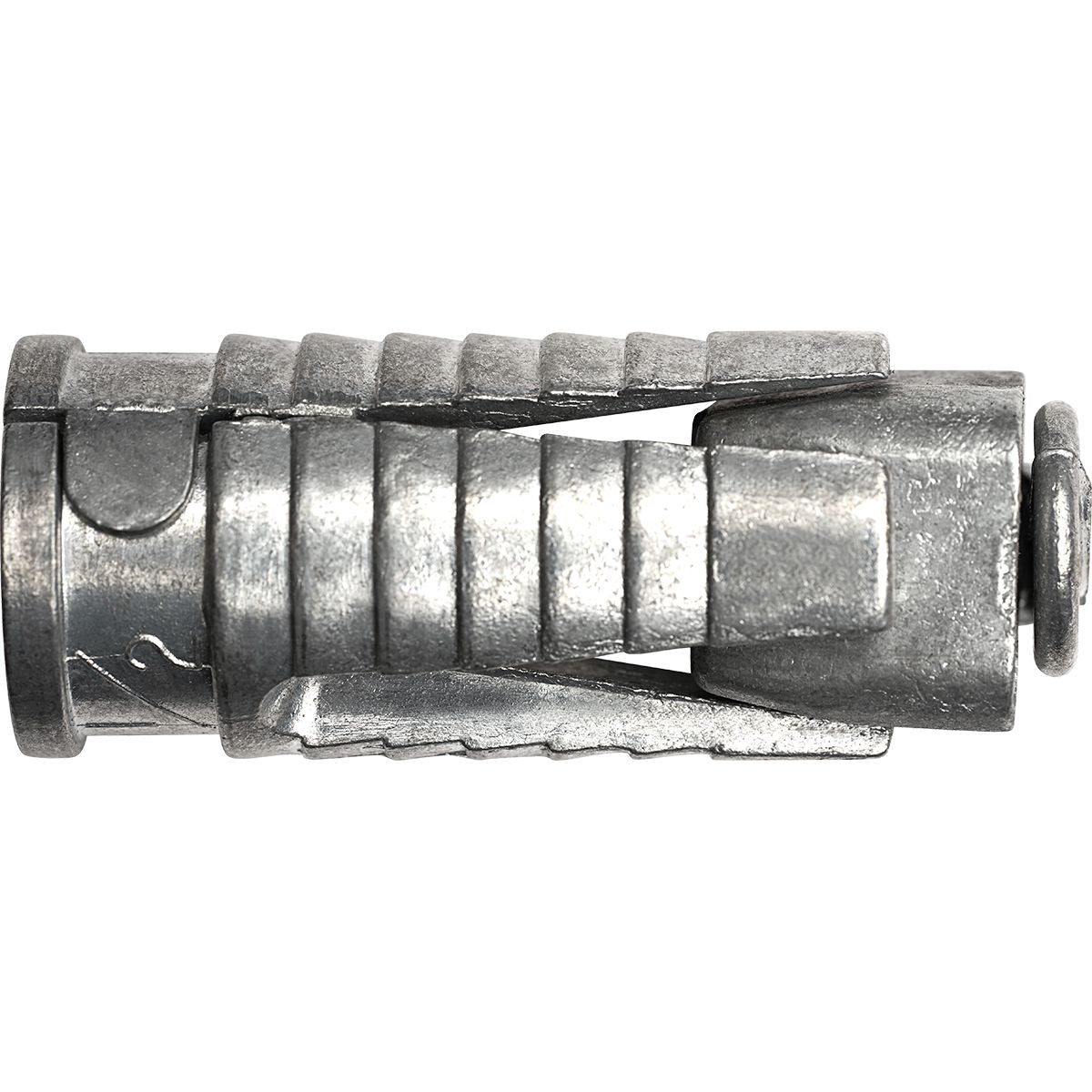

Expansion Shield Anchor 5/16"
(Pack of
25.0)
• Evenly distributed four-way expansion of anchor wall by internal nut
• Excellent holding power in concrete, brick, stone and cinder block
• Corrosion-resistant, non-deteriorating zinc alloy casting bends and conforms without fracturing
• Meets GSA Specification FF-S-325 3.2.2.2.1.3
• Use for anchoring medium and heavy loads in solid and hollow-base materials
• Typical applications: Guard rails, fascia, equipment hangers, straps, conduit, overhead plumbing installations and suspended heating and air conditioning ductwork
1. Drill hole to at least shield length.
2. Clean hole with air or wet swab.
3. Place Forway® Expansion Shield in the hole.
4. Position fixture or equipment.
5. Insert screw or bolt through equipment into shield and tighten.
NOTE: Screws not included.
Forway® is a registered trademark of U.S.E. Diamond, Inc.
Tensile strength, shear strength and tensile block values shown; a 4:1 safety factor is recommended.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 6-31
Frequently Bought Together
Wing-Type Toggle Bolt Anchor Steel 1/4-20 x 6"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 2-3/4"
Couldn't load pickup availability
Conical Screw Anchor Plastic #10 to #12 x 1"
Couldn't load pickup availability
Pin Drive Expansion Anchor Steel 5/8 x 6"
Couldn't load pickup availability
Pin Drive Expansion Anchor Steel 3/8 x 2-3/8"
Couldn't load pickup availability
Lag Screw Shield Anchor Long Style 1/2 x 3"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
• Evenly distributed four-way expansion of anchor wall by internal nut• Excellent holding power in concrete, brick, stone and cinder block
• Corrosion-resistant, non-deteriorating zinc alloy casting bends and conforms without fracturing
• Meets GSA Specification FF-S-325 3.2.2.2.1.3
• Use for anchoring medium and heavy loads in solid and hollow-base materials
• Typical applications: Guard rails, fascia, equipment hangers, straps, conduit, overhead plumbing installations and suspended heating and air conditioning ductwork
1. Drill hole to at least shield length.
2. Clean hole with air or wet swab.
3. Place Forway® Expansion Shield in the hole.
4. Position fixture or equipment.
5. Insert screw or bolt through equipment into shield and tighten.
NOTE: Screws not included.
Forway® is a registered trademark of U.S.E. Diamond, Inc.
Tensile strength, shear strength and tensile block values shown; a 4:1 safety factor is recommended.
Technical Specifications
| Item#: | 96959 |
|---|---|
| Anchor Size | 5/16 " |
| Type | Forway Expansion Shield Anchor |
| Drill Size | 9/16 " |
| 3,000 PSI Concrete Shear Strength | 3,300 lb |
| Tensile Block | 2,100 lb |
| Thread Pitch | 18 |
| 3,000 PSI Concrete Tensile Strength | 2,600 lb |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
| Weight: | 1.06 lb |
