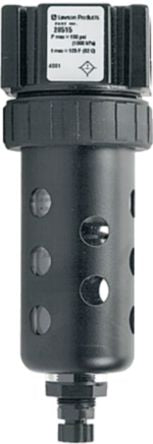

Filter, 1/4" Body, 1/4-18 Female NPT, 2oz, 54ft³/min, 150PSI
(Pack of
1)
SKU:28515 Item#: 28515
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• 40 micron filter element standard• Solid all-metal body and clear polycarbonate bowl (1" body size is all metal with a polycarbonate sight)
Two-stage filtration process removes dirt, rust, pipe scale and 99% of condensed water. Features a large filter media surface for increased flow and fingertip twist drain system (an optional automatic drain can be easily installed).
Frequently Bought Together
Pressure Gauge Lower Mount 0 to 200PSI
Couldn't load pickup availability
Pressure Gauge Lower Mount 0 to 30PSI
Couldn't load pickup availability
Regulator 1/4-18 Female NPT
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 1/4-18
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• 40 micron filter element standard• Solid all-metal body and clear polycarbonate bowl (1" body size is all metal with a polycarbonate sight)
Two-stage filtration process removes dirt, rust, pipe scale and 99% of condensed water. Features a large filter media surface for increased flow and fingertip twist drain system (an optional automatic drain can be easily installed).
Technical Specifications
| Item#: | 28515 |
|---|---|
| Description | Filter |
| Body Size | 1/4 " |
| Maximum Flow | 54 ft³/min |
| Maximum Pressure | 150 PSI |
| Port Style | Female NPT |
| Port Size | 1/4-18 |
| Bowl Capacity | 2 Oz. |
| Replacement Polycarbonate Bowl | - |
| Replacement Metal Bowl | - |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 0.96 lb |
