Home Hydraulics Hose and Tubing Barb Lok H201 Easy Couple Synthetic Cover Hose 1/4" Black
Barb Lok
H201 Easy Couple Synthetic Cover Hose 1/4
H201 Easy Couple Synthetic Cover Hose 1/4
Barb-Lok

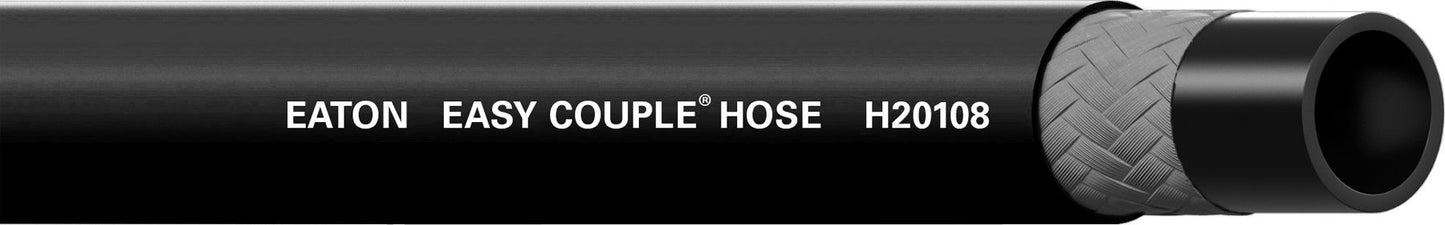

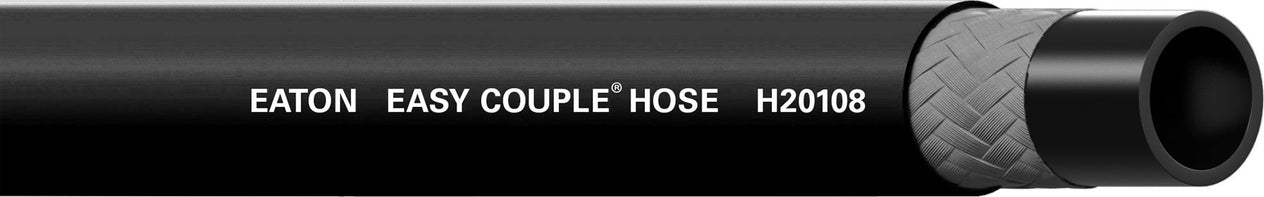

H201 Easy Couple Hose, Nitrile Inner Tube, Synthetic Cover, 1 Fiber Braid Reinforcement, Black, 300PSI, 1/4" x 500'
(Pack of 500)

Item#: 1185464

Danfoss®

H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.
Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile

Read More

Catalog page#: 8-140

Frequently Bought Together

H201 Easy Couple Hose 1/4

H201 Easy Couple Hose 1/4" Black 50'

Item#: 1593582
Push-on/Lock-on Synthetic Rubber Cover Hose 3/8

Push-on/Lock-on Synthetic Rubber Cover Hose 3/8"

Item#: PL12101B06
No product placeholder

H20112BU

Item#: 1175069
H285 Clearforce-R Food Transfer Hose 1

H285 Clearforce-R Food Transfer Hose 3/8" Clear

Item#: 41374 06
Water Hose Assemblies - Contractor Black EPDM EPDM 125 psi 3/4

Contractor Water Hose Assembly 3/4" x 25' Black

Item#: 41466
Tough Tek Rubber Pressure Washing Hose 3/8

Tough-Tek Rubber Pressure Washing Hose 3/8" X 100', Blue

Item#: 1694096
Z Series Crimp-On Hose End 1/2

Z Series/1A Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16610
Super 77 Hose Clamps 300 Series Stainless Steel bands with 305 Series Stainless Steel Screw Size # 76 2-1/4-5-3/16 x 1/2

Super 77 Hose Clamp SS 1/2 to 1-1/8"

Item#: 85496
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"

Item#: 90782
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104
SAE Flat Washer Thru-Hardened Steel 1/2

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439
Interchangeable Hex Bit Set 20Pc Torx, 20 Pc, Interchangeable Torx Quick Release Hex Bit Set

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522

Product Description

H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.
Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile

Technical Specifications

Item#: 1185464
Manufacturer Model #: H20104BK-500R
I.D. 1/4 "
Working Pressure 300 PSI
Burst Pressure 1,200 PSI
Minimum Bend Radius 3 "
Weight (Lbs. / Ft.) 0.08
Vacuum Rating (Inches of Hg) 28
UNSPSC #: 40142009
TAA Compliant: Yes
