Home Hydraulics Hose and Tubing Barb Lok H201 Easy Couple Synthetic Cover Hose 5/8" Black
Barb Lok
Barb-Lok

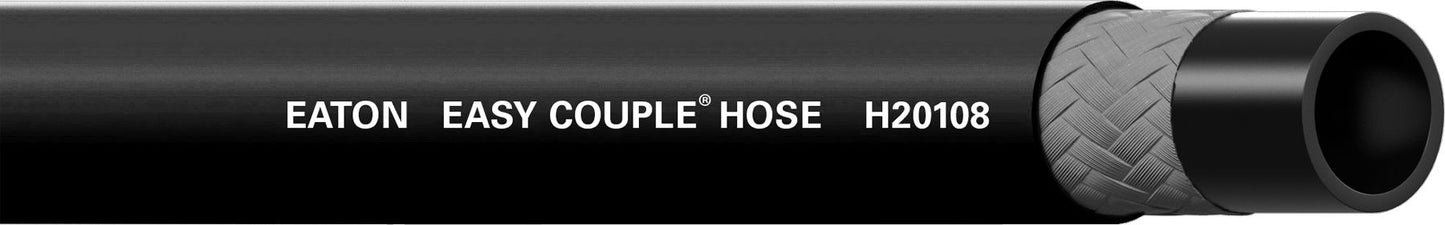

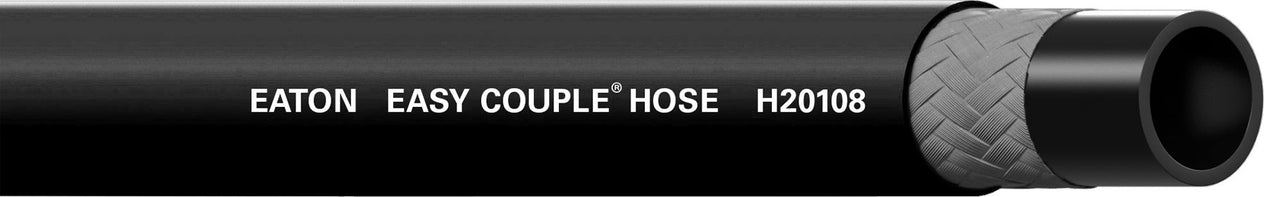

H201 Easy Couple Hose, Nitrile Inner Tube, Synthetic Cover, 1 Fiber Braid Reinforcement, 300PSI, 5/8" x 50'
(Pack of 50)

Item#: 1171847

Danfoss®

H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.
Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile

Read More

Catalog page#: 8-140

Frequently Bought Together


Synthetic Rubber Bar-Lok Cover Hose 3/8" Black

Item#: 1502275

H201 Easy Couple Synthetic Cover Hose 1/2" Black

Item#: 1184506

Push-on/Lock-on Fiber Braided Cover Hose 5/8"

Item#: 12100 10

Contractor Water Hose Assembly 3/4" x 50' Black

Item#: 41467

OilShield Rubber Air Hose Assembly 1/2" x 50'

Item#: 1690606

Polyurethane Self-Coiling Air Hose Assembly 1/4" NPT x 0.160" ID x 5' Length

Item#: 51922

Pipe Bushing Brass 1/2-14 x 1/4-18

Item#: 5286

DOT Union Brass 3/8 x 3/8"

Item#: 57500

Ball Check Grease Fitting Straight

Item#: 6200

High Solids Paints Gloss Black

Item#: 1509224

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447

Product Description

H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.
Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile

Technical Specifications

Item#: 1171847
Manufacturer Model #: H20110BK
I.D. 5/8 "
Working Pressure 300 PSI
Burst Pressure 1,200 PSI
Minimum Bend Radius 6 "
Weight (Lbs. / Ft.) 0.2
Vacuum Rating (Inches of Hg) 28
UNSPSC #: 40142009
TAA Compliant: Yes
