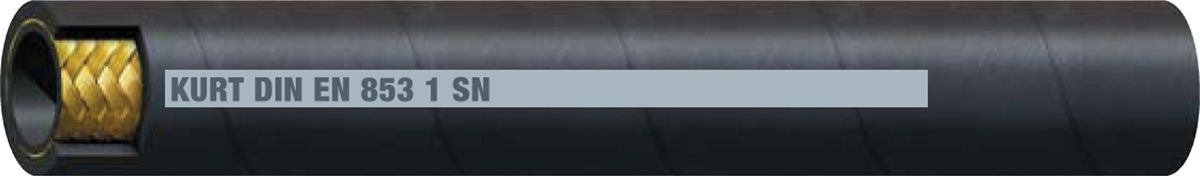

Kurt SAE R1S 1-Steel Wire Hydraulic Hose, 1SN-330, DIN EN 853, Medium Pressure Oil Lines, Oil Resistant Synthetic Rubber
(Pack of
220)
SKU:DY56002110 Item#: DY56002110
• Agency Ratings: SAE R1S, DIN EN 853 1SN
• Fittings Certified:
– W Series (-4 through -24)
– STD/KH Series (-4 through -20)
– K2 Series (-4 through -8)
• Agency Approval: MSHA
• Construction:
– Inner Tube: Oil resistant synthetic rubber
– Reinforcement: One high tensile steel wire braid
– Cover: Abrasion, ozone and weather resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (-40°C to +100°C)
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT Tuff hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: LE-16
Frequently Bought Together
BluShield Single-Wire Pressure Washer Hose 3/8" X 100'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 50 Foot
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 50'
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability
Crimp-On Coupling 1/2" x 13/16-16
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 50 Foot
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 50'
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.53" x 50'
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE R1S, DIN EN 853 1SN• Fittings Certified:
– W Series (-4 through -24)
– STD/KH Series (-4 through -20)
– K2 Series (-4 through -8)
• Agency Approval: MSHA
• Construction:
– Inner Tube: Oil resistant synthetic rubber
– Reinforcement: One high tensile steel wire braid
– Cover: Abrasion, ozone and weather resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (-40°C to +100°C)
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT Tuff hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY56002110 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE R1SN |
| Industry Rating 2 | DIN EN 853 1SN |
| Industry Rating | Meets flame resistant MSHA designation |
| Manufacturer Series Number | R1S |
| I.D. | 5/8 (-10) " |
| Hose O.D. | 0.91 " |
| Working Pressure | 1,750 PSI |
| Burst Pressure | 7,000 PSI |
| Fitting Series | STD/KH, W |
| Bend Radius | 8.00 " |
| Inner Tube Material | Oil resistant synthetic rubber |
| Hose Reinforcement | One high tensile steel wire braid |
| Hose Cover Material | Abrasion, ozone and weather resistant synthetic rubber |
| Temperature | -40° to +212°F |
| Dash Size | -10 |
| Applications | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
