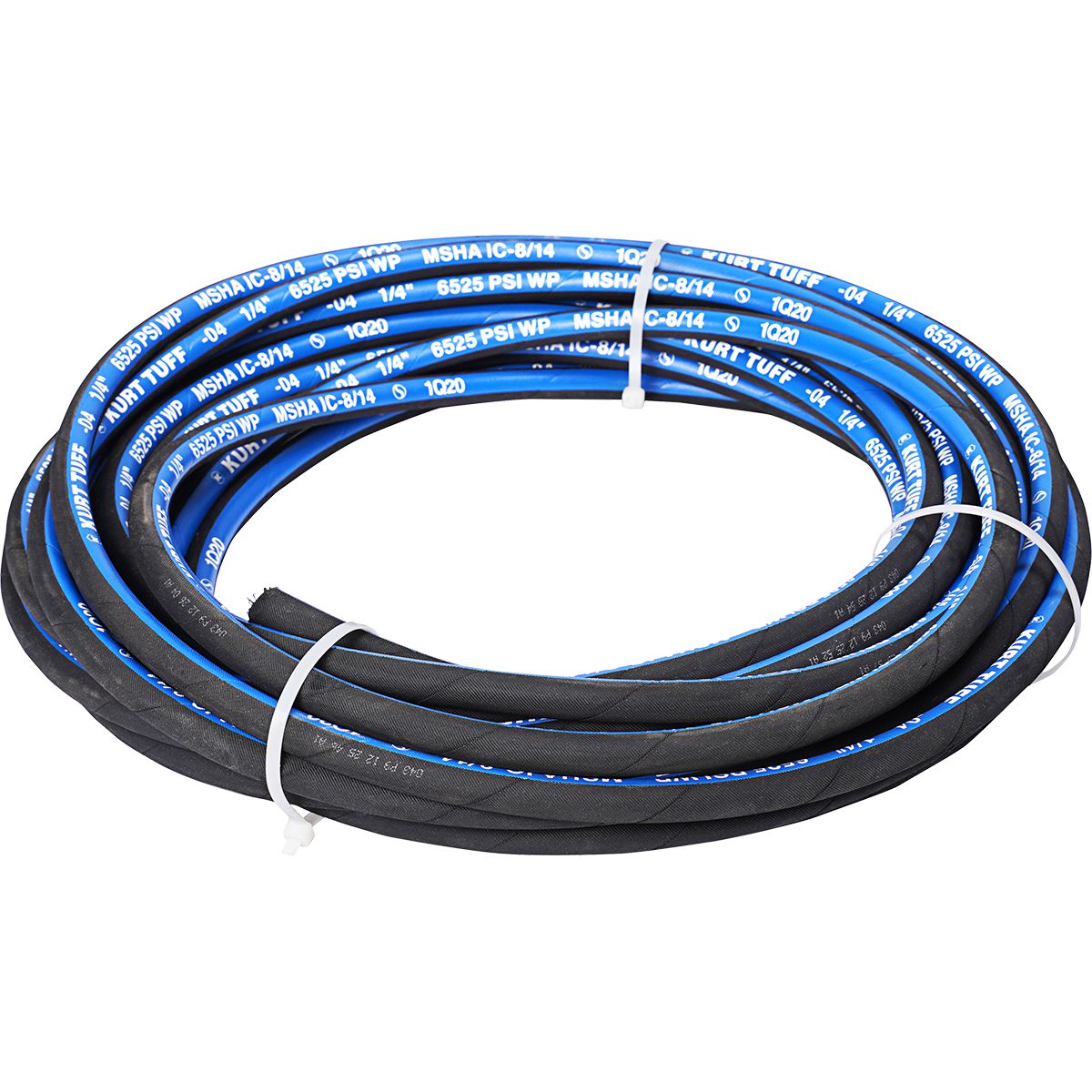

Kurt Tuff Xtra-Flex, High Pressure Hydraulic Hose, Very High Pressure, Light Weight, One Million Impulse Cycle Hose
(Pack of
300)
KURT Tuff high-pressure hydraulic hose was designed and engineered by KURT Hydraulics’ in-house development team. It is a truly unique product unlike anything else on the market today. KURT Tuff’s superior performance and quality give us a distinct competitive advantage in the high-pressure hydraulic hose industry. With a high-pressure hydraulic hose from KURT Hydraulics, you can expect a usable life that is up to four times as long as standard hoses, tested and proven through 1 million impulse cycles.
• Fittings Certified:
– W Series(-4 through -16)
– STD/KH Series (-4 through -16)
– K2 Series (-4 through -8)
• Agency Approval: MSHA
• Construction:
– Inner Tube: Oil resistant synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: 10X abrasion, ozone and weather resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (-40°C to +100°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
M2T Hydraulic Hose Rubber 1.11" x 50'
Couldn't load pickup availability
H180 WeatherSHIELD™ Hydraulic Hose 0.78" x 50'
Couldn't load pickup availability
H245L WeatherFROST Hose Rubber 3/8" x 250'
Couldn't load pickup availability
Hydraulic Hose Protector 8 x 3-1/2" Yellow
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/8-18
Couldn't load pickup availability
Crimp-On Hose Coupling 1/4" x 7/16-20
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Close Nipple Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/8" x 50'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 400 Foot
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
KURT Tuff high-pressure hydraulic hose was designed and engineered by KURT Hydraulics’ in-house development team. It is a truly unique product unlike anything else on the market today. KURT Tuff’s superior performance and quality give us a distinct competitive advantage in the high-pressure hydraulic hose industry. With a high-pressure hydraulic hose from KURT Hydraulics, you can expect a usable life that is up to four times as long as standard hoses, tested and proven through 1 million impulse cycles.• Fittings Certified:
– W Series(-4 through -16)
– STD/KH Series (-4 through -16)
– K2 Series (-4 through -8)
• Agency Approval: MSHA
• Construction:
– Inner Tube: Oil resistant synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: 10X abrasion, ozone and weather resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (-40°C to +100°C)
Technical Specifications
| Item#: | 1692936 |
|---|---|
| Industrial/Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category/Performance | High Pressure |
| Manufacturer Series Name | Kurt TUFF |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.81 " |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Fitting Series | STD/KH, W, K2 |
| Bend Radius | 3.50 " |
| Inner Tube Material | Oil resistant synthetic rubber |
| Hose Reinforcement | Two high tensile steel wire braid |
| Hose Cover Material | 10x abrasion, ozone and weather resistant synthetic rubber |
| Temperature | -40° to +212°F |
| Dash Size | -8 |
| Applications | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
