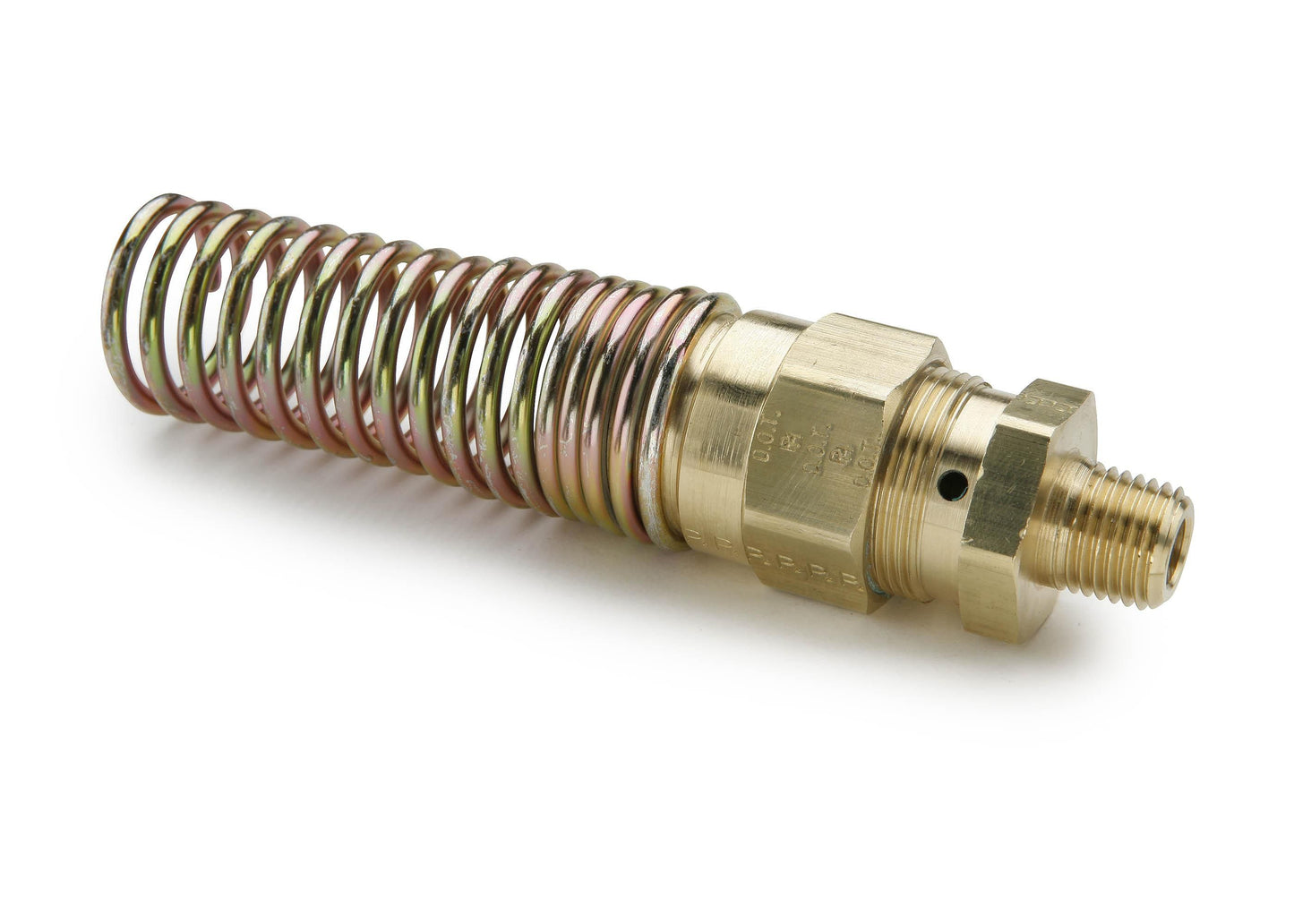

Parker DOT Brass DOT Field Attachable - Male Connector with Spring Guard 3/8x3/8
(Pack of
6)
SKU:1652P Item#: 1652P
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

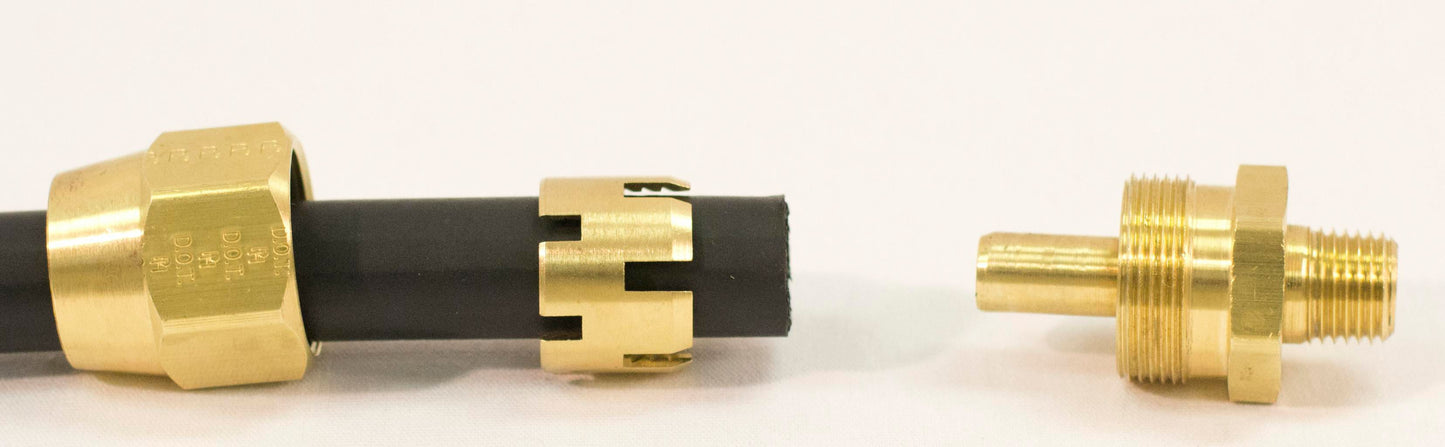

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.

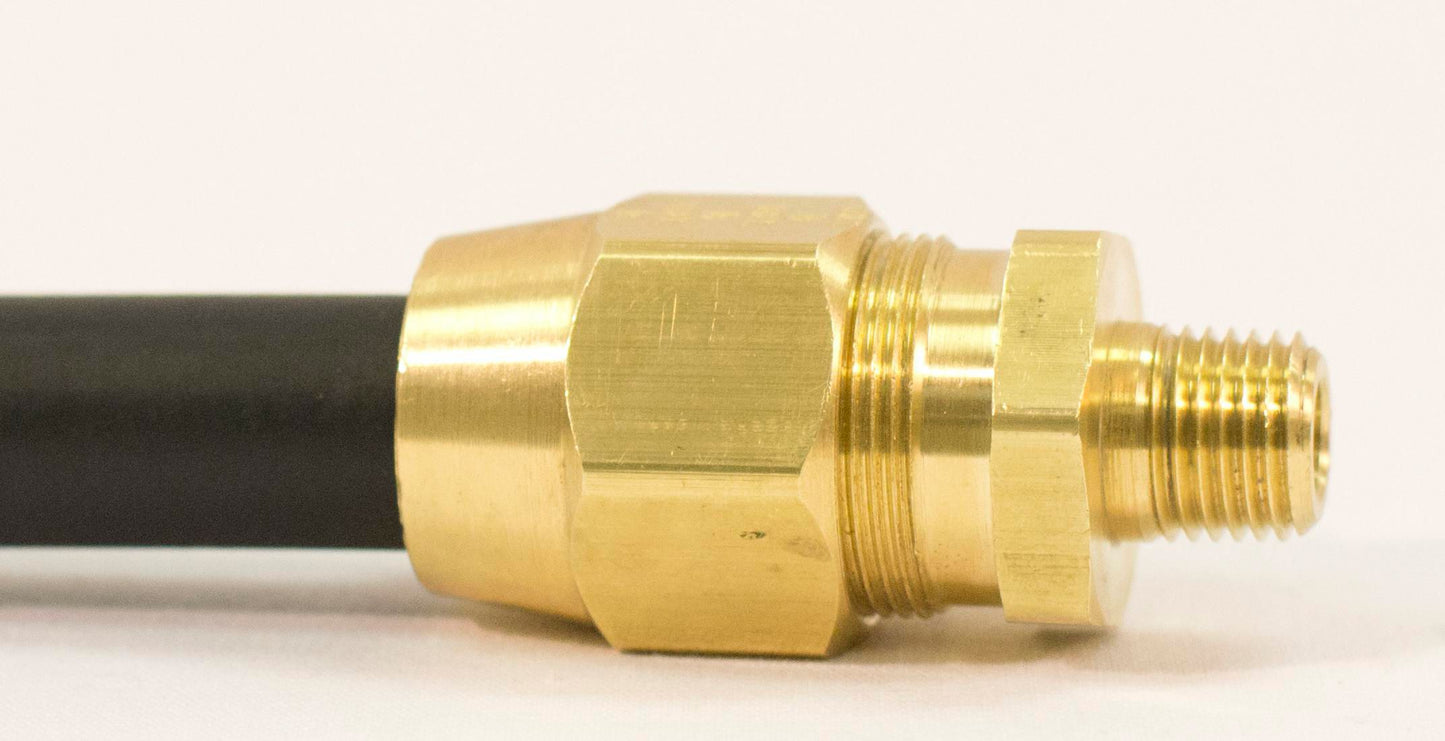

4. Tighten nut until it contacts body hex.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-13
Frequently Bought Together
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Product Description
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
Technical Specifications
| Item#: | 1652P |
|---|---|
| Manufacturer Model #: | 68RBSG-6-6 |
| Fitting Type | Compression - Rubber |
| Style | DOT |
| Material | Brass |
| Configuration | Male Connector with Spring Guard |
| Connection Type A x B | Hose I.D. x Pipe |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 3/8-18 " |
| Dash Size | -6 |
| Parker Reference No. | 68RBSG-6-6 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 2.085 lb |
