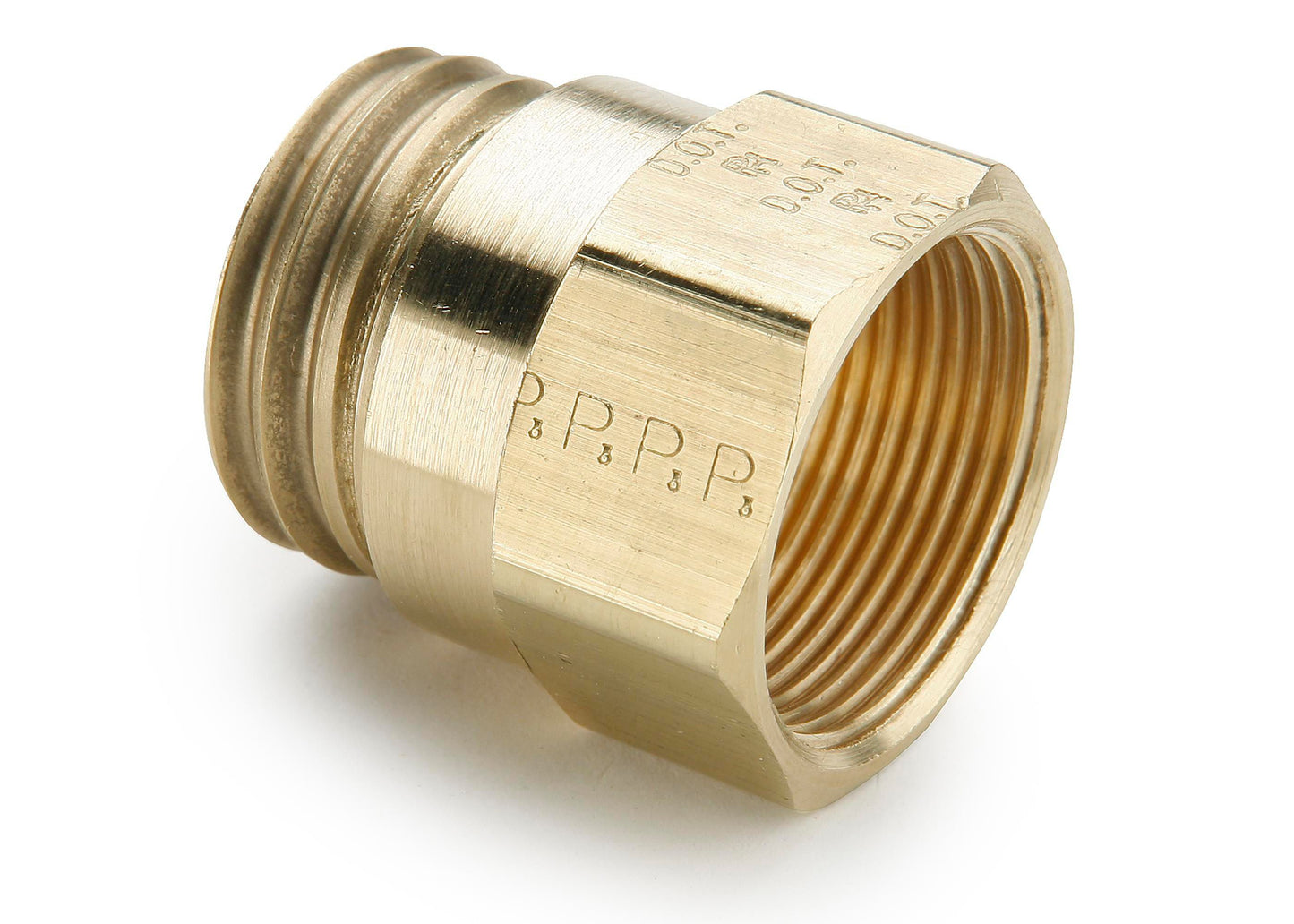

Parker DOT Brass DOT Field Attachable - Nut for Spring Guard 3/8
(Pack of
5)
SKU:1657P Item#: 1657P
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

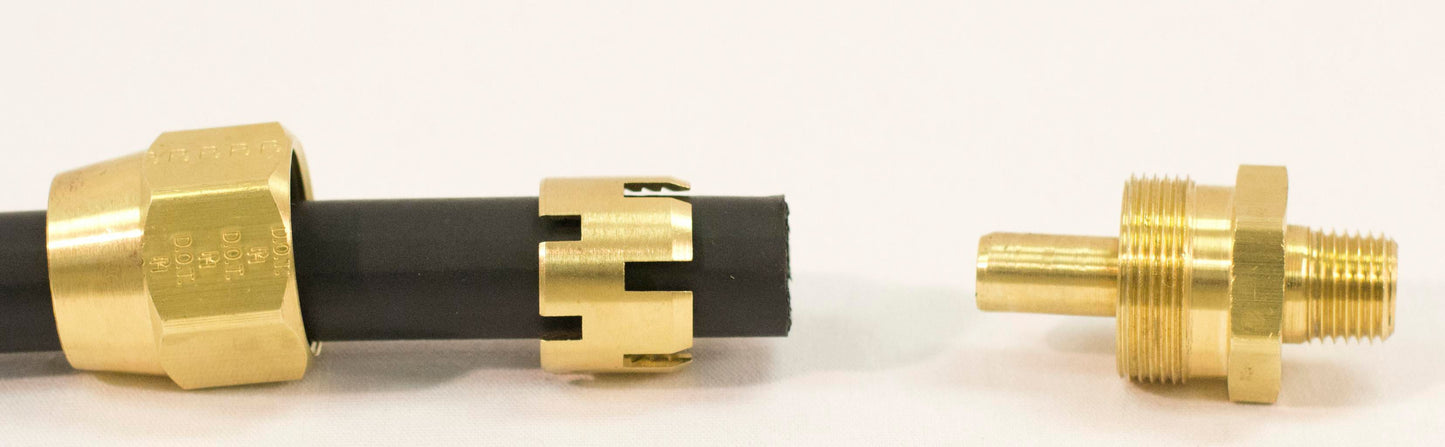

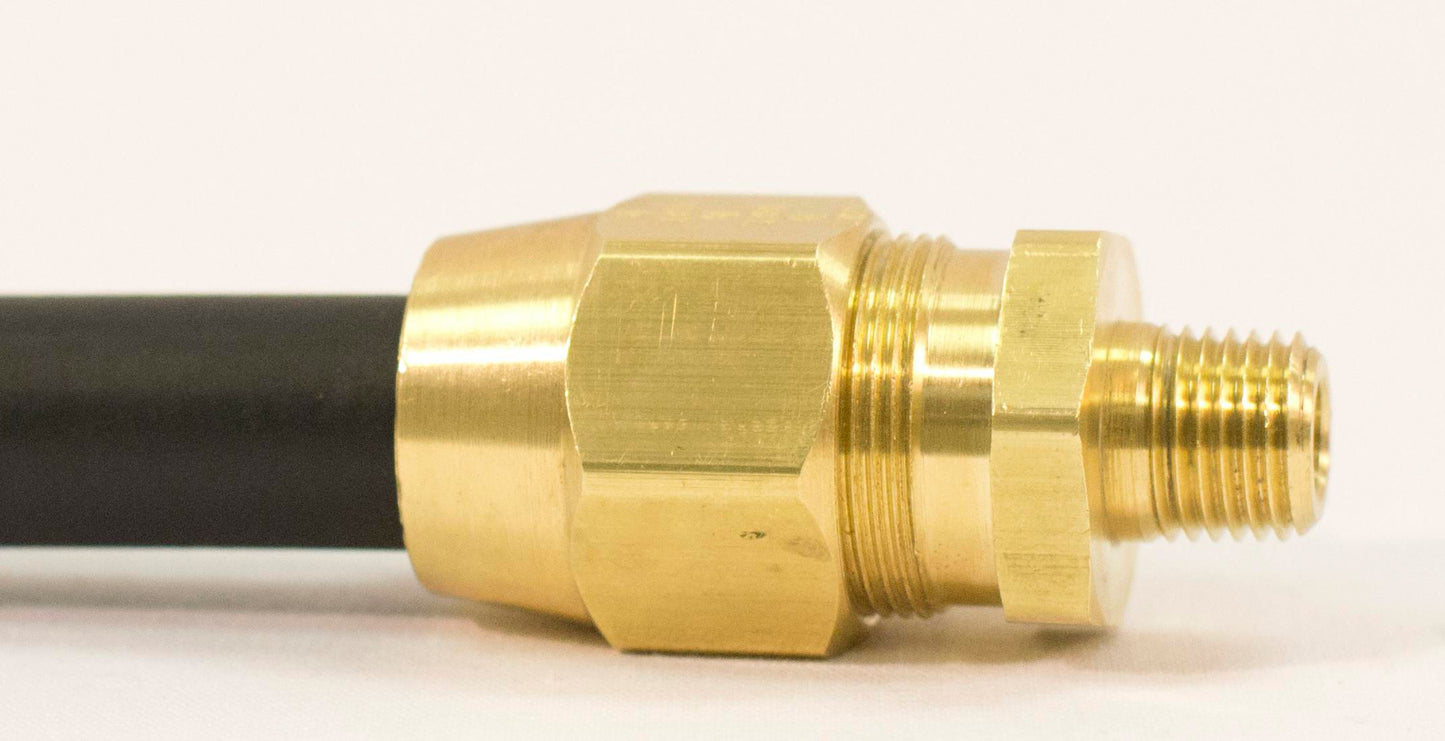

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-14
Frequently Bought Together
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 1/2 x 1/4"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 5/8 x 1/2"
Couldn't load pickup availability
Ball Check Grease Fitting 45°
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 1/4 x 1/8"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 13/16 to 1-1/2"
Couldn't load pickup availability
Hose Clamp 304 SS 7/16 to 25-32"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Product Description
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
Technical Specifications
| Item#: | 1657P |
|---|---|
| Manufacturer Model #: | 61RBSG-6 |
| Fitting Type | Compression - Rubber |
| Style | DOT |
| Material | Brass |
| Configuration | Nut - Spring Guard |
| Connection Type A | Hose I.D. |
| Fitting Dimension A | 3/8 " |
| Dash Size | -6 |
| Parker Reference No. | 61RBSG-6 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.43 lb |
