Weatherhead H290 Hydraulic Hose, Vinyl Nitrile, 2-Steel Braided, 3/8" ID, 0.75" OD, 250' Length, 5800PSI, SAE 100R2
(Pack of
250)
• Agency Ratings: SAE 100R2 Type AT EN 853 Type 2SN• Fittings Certified: Z-Series• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service• Construction:– Inner Tube: Nitrile– Reinforcement: Two steel braids– Cover: Vinyl nitrile – eight times better abrasion resistance• Temperature Range:– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)– Water: 32°F to 158°F (0°C to 70°C)
• Application Notes:
– Used for high-pressure hydraulic lines and water transfer
– Provides higher pressure ranges than H425

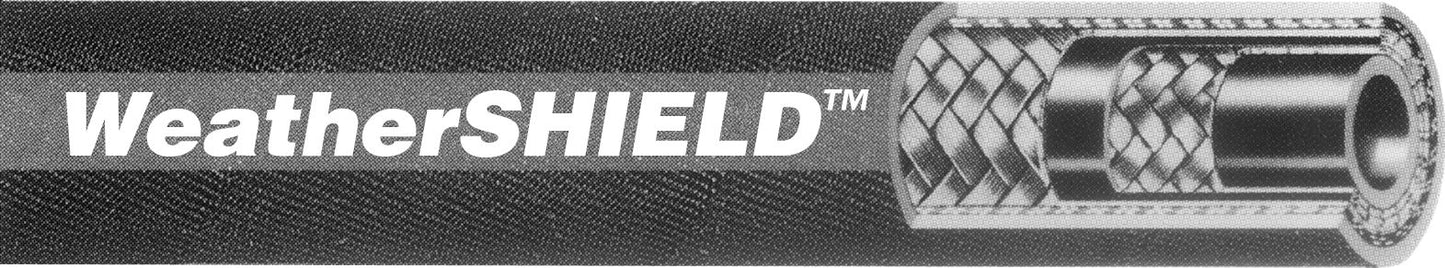

– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene covers
– Upgraded pressure ratings
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
Crimp-On Hose Coupling 1/4" x 9/16-18
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Crimp-On Hose Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R2 Type AT EN 853 Type 2SN• Fittings Certified: Z-Series• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service• Construction:– Inner Tube: Nitrile– Reinforcement: Two steel braids– Cover: Vinyl nitrile – eight times better abrasion resistance• Temperature Range:– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)– Water: 32°F to 158°F (0°C to 70°C)• Application Notes:
– Used for high-pressure hydraulic lines and water transfer
– Provides higher pressure ranges than H425
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene covers
– Upgraded pressure ratings
Technical Specifications
| Item#: | 20412 06 |
|---|---|
| Industrial/Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category/Performance | High Pressure |
| Industry Rating 1 | SAE 100R2S |
| Industry Rating 2 | EN 853 2SN |
| Industry Rating | MSHA, Marine Application J1942/1 Hydraulic Service |
| Manufacturer Series Number | H290 |
| Manufacturer Series Name | WeatherSHIELD |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 0.75 " |
| Working Pressure | 5,800 PSI |
| Burst Pressure | 23,200 PSI |
| Fitting Series | Z Series |
| Bend Radius | 5 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Vinyl Nitrile |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum Based Fluids -40F to +260F, Water-based fluids -40F to +158F, Water 32F to 158F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 93.5 lb |
