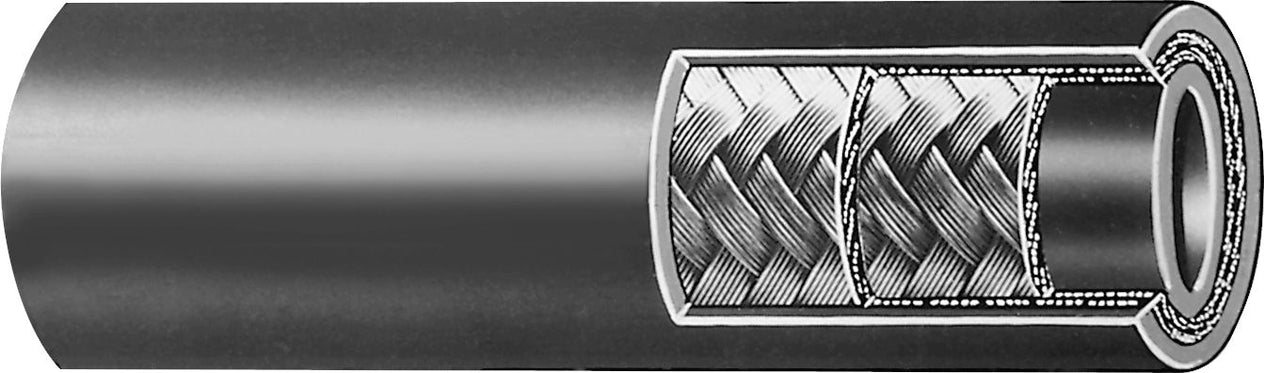

Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1/4" ID, 19/32" OD, 500' Length, 5000PSI, SAE 100R2
(Pack of
500)
SKU:PL57474B04 Item#: PL57474B04
• Agency Ratings: SAE 100R2 Type AT • Fittings Certified: S-Series (except -10, -24, -32); U-Series (except -24, -32); Z-Series; 430U-Series (-12 through -32); 425N Series Field-Attachable• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service (-4 through -32), Fuel and Lube (-4 through -20; Note: requires fire sleeves), ABS (requires fire sleeve on -20)• Construction:– Inner Tube: Nitrile (-4 is neoprene)– Reinforcement: Two steel braids– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines for off-road construction equipment and farm equipment, as well as other high-pressure applications
– Approved for marine hydraulic and fuel/lube service applications (see limitations)
– Accepts field-attachable fittings
Frequently Bought Together
Weatherhead H280 Hydraulic Hose 1.41" x 250'
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 100'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 50 Foot
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 100'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 50 Foot
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 50'
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
Couldn't load pickup availability
12Pc SAE 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
Couldn't load pickup availability
12Pc SAE 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R2 Type AT • Fittings Certified: S-Series (except -10, -24, -32); U-Series (except -24, -32); Z-Series; 430U-Series (-12 through -32); 425N Series Field-Attachable• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service (-4 through -32), Fuel and Lube (-4 through -20; Note: requires fire sleeves), ABS (requires fire sleeve on -20)• Construction:– Inner Tube: Nitrile (-4 is neoprene)– Reinforcement: Two steel braids– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)• Application Notes:
– Used for high-pressure hydraulic lines for off-road construction equipment and farm equipment, as well as other high-pressure applications
– Approved for marine hydraulic and fuel/lube service applications (see limitations)
– Accepts field-attachable fittings
Technical Specifications
| Item#: | PL57474B04 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2 |
| Industry Rating | HSHA Accepted, Marine Application J1942/1 Hydraulic and Fuel Service, ABS1 |
| Manufacturer Series Number | H425 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1/4 (-4) " |
| Hose O.D. | 19/32 " |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Fitting Series | Crimp: Z Series, U Series, S Series, Field Attachable: 425N Series |
| Bend Radius | 4 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 132.0 lb |
