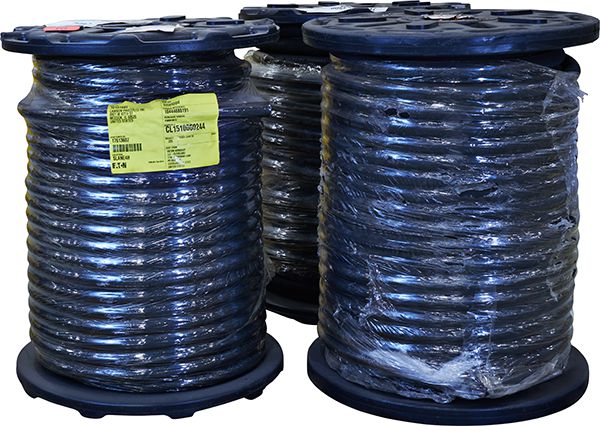

Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1/2" ID, 7/8" OD, 250' Length, 3500PSI, SAE 100R2
(Pack of
250)
SKU:10392 Item#: 10392
Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1/2" ID, 7/8" OD, 250' Length, 3500PSI, SAE 100R2
Read MoreFrequently Bought Together
EC215 Winner Hydraulic Hose Rubber 0.82" x 50'
Item#: 1561363
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 1.11" x 50'
Item#: 27877 12
Couldn't load pickup availability
H180 WeatherSHIELDâ„¢ Hydraulic Hose 0.78" x 50'
Item#: 1560026
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 1/4"
Item#: 90791
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Item#: 16649
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1/2" x 1/2-14
Item#: 84602
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Item#: 16615
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Item#: 58832
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Item#: 5314
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 1.11" x 50'
Item#: 27877 12
Couldn't load pickup availability
H180 WeatherSHIELDâ„¢ Hydraulic Hose 0.78" x 50'
Item#: 1560026
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.59" x 50'
Item#: 1562974
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Item#: 87511
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Item#: 87512
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Item#: 94728
Couldn't load pickup availability
Product Description
Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1/2" ID, 7/8" OD, 250' Length, 3500PSI, SAE 100R2Technical Specifications
| Item#: | 10392 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2 |
| Industry Rating | MSHA Accepted, Marine Application J1942/1 Fuel and Hydraulic, ABS1 |
| Manufacturer Series Number | H425 |
| Manufacturer Series Name | Weatherhead Continuous Length |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 7/8 " |
| Working Pressure | 3500 PSI |
| Burst Pressure | 14000 PSI |
| Fitting Series | Crimp: Z Series, U Series, 430U Series, S Series, Field Attachable: 425N Series |
| Bend Radius | 7 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Note | Continuous Length |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 120.0 lb |
