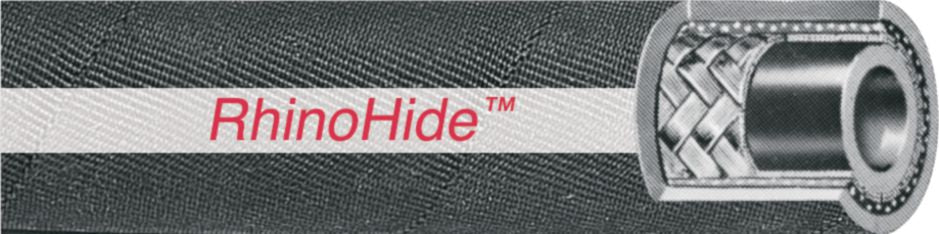

Weatherhead H545 Hydraulic Hose, Woven Nylon, 2-Steel Braided, 1" ID, 1.41" OD, 50' Length, 3000PSI
(Pack of
50)
SKU:62193 16 Item#: 62193 16
• Agency Ratings: Not rated• Fittings Certified: S-Series (-4, -6, -8, -12); U-Series (-4 through -12): 430U-Series (-16)• Agency Approvals: None• Construction:– Inner Tube: Nitrile– Reinforcement: Single braid (-4 through -8); double braid (-10 through -16)– Cover: Abrasion-resistant woven nylon• Temperature Range – Petroleum-based fluids: –40°F to +250°F (–40°C to 121°C)
• Application Notes:
– Used for logging, construction, mining and other off-highway applications
– Provides 3,000 PSI working pressure rating for all sizes
Consists of no more than two pieces totaling 50 feet (±10%)
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.81" x 250'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.75" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.8" x 50'
Couldn't load pickup availability
Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/4-16
Couldn't load pickup availability
Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 250'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.75" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.8" x 50'
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
• Agency Ratings: Not rated• Fittings Certified: S-Series (-4, -6, -8, -12); U-Series (-4 through -12): 430U-Series (-16)• Agency Approvals: None• Construction:– Inner Tube: Nitrile– Reinforcement: Single braid (-4 through -8); double braid (-10 through -16)– Cover: Abrasion-resistant woven nylon• Temperature Range – Petroleum-based fluids: –40°F to +250°F (–40°C to 121°C)• Application Notes:
– Used for logging, construction, mining and other off-highway applications
– Provides 3,000 PSI working pressure rating for all sizes
Consists of no more than two pieces totaling 50 feet (±10%)
Technical Specifications
| Item#: | 62193 16 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | N/A |
| Manufacturer Series Number | H545 |
| Manufacturer Series Name | RhinoHide |
| I.D. | 1 (-16) " |
| Hose O.D. | 1.41 " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Fitting Series | 430U Series |
| Bend Radius | 6.0 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braid |
| Hose Cover Material | Abrasion Resistant Woven Nylon |
| Temperature | Normal |
| Length | 50 ft |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +250F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 50.0 lb |
