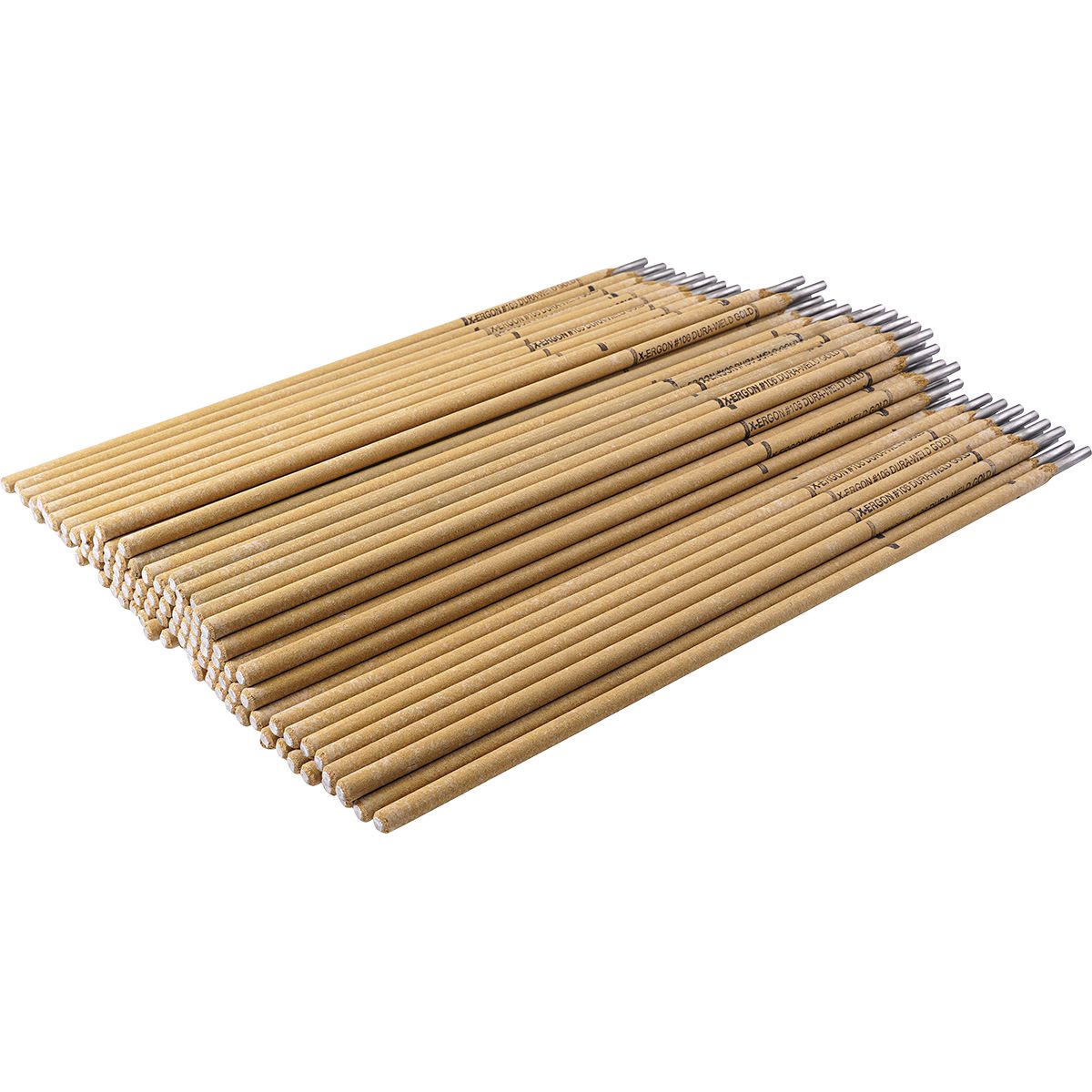

106 Mild Steel All Purpose Electrode 5/64
(Pack of 15.0)

Lawson Products

A special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint. Even welds through water.
• Moisture Proof Flux – Guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds Contaminated Steel – Less pre-cleaning and weld clean-up
• Very Easy to Use – Practically welds by itself with little or no-spatter
• Tensile Strength: Up to 83,000 PSI/572 Mpa
• Yield Strength: 69,000 PSI/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft.-lbs.
• Current: DC or AC

Check Availability

Quantity

Frequently Bought Together

107 Mild Steel High Penetration Low Alloy Electrode 3/32"

Item#: EG10750000

109 High Strength Electrode 3/32

Item#: EG10950000

109 High Strength Electrode 1/8

Item#: EG10940000

USS Flat Washer Thru-Hardened Steel 3/8"

Self-Drilling Screw Hex Head 1/4-14 x 1"

SAE Flat Washer Thru-Hardened Steel 5/8"

Pipe Wrap Around

Item#: EG71600000

Heat Stick 1050F Degrees

Item#: EG70901050

777 Stainless Steel Stick Rod Electrode 1/8"

8-7502 Plasma Cutting Electrode

192047 Plasma Cutting Electrode

8-7500 Plasma Cutting Shield Cup

Product Description

A special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint. Even welds through water.
• Moisture Proof Flux – Guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds Contaminated Steel – Less pre-cleaning and weld clean-up
• Very Easy to Use – Practically welds by itself with little or no-spatter
• Tensile Strength: Up to 83,000 PSI/572 Mpa
• Yield Strength: 69,000 PSI/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft.-lbs.
• Current: DC or AC

Technical Specifications

Item#:	EG1066000G
Welding Process	Stick
Type	Stick
Diameter	5/64 "
Tensile Strength	83,000 PSI
Elongation	25 %
Base Metal	Mild And Medium Carbon Steel
Hardness	85 HRB
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	15.3 lb
