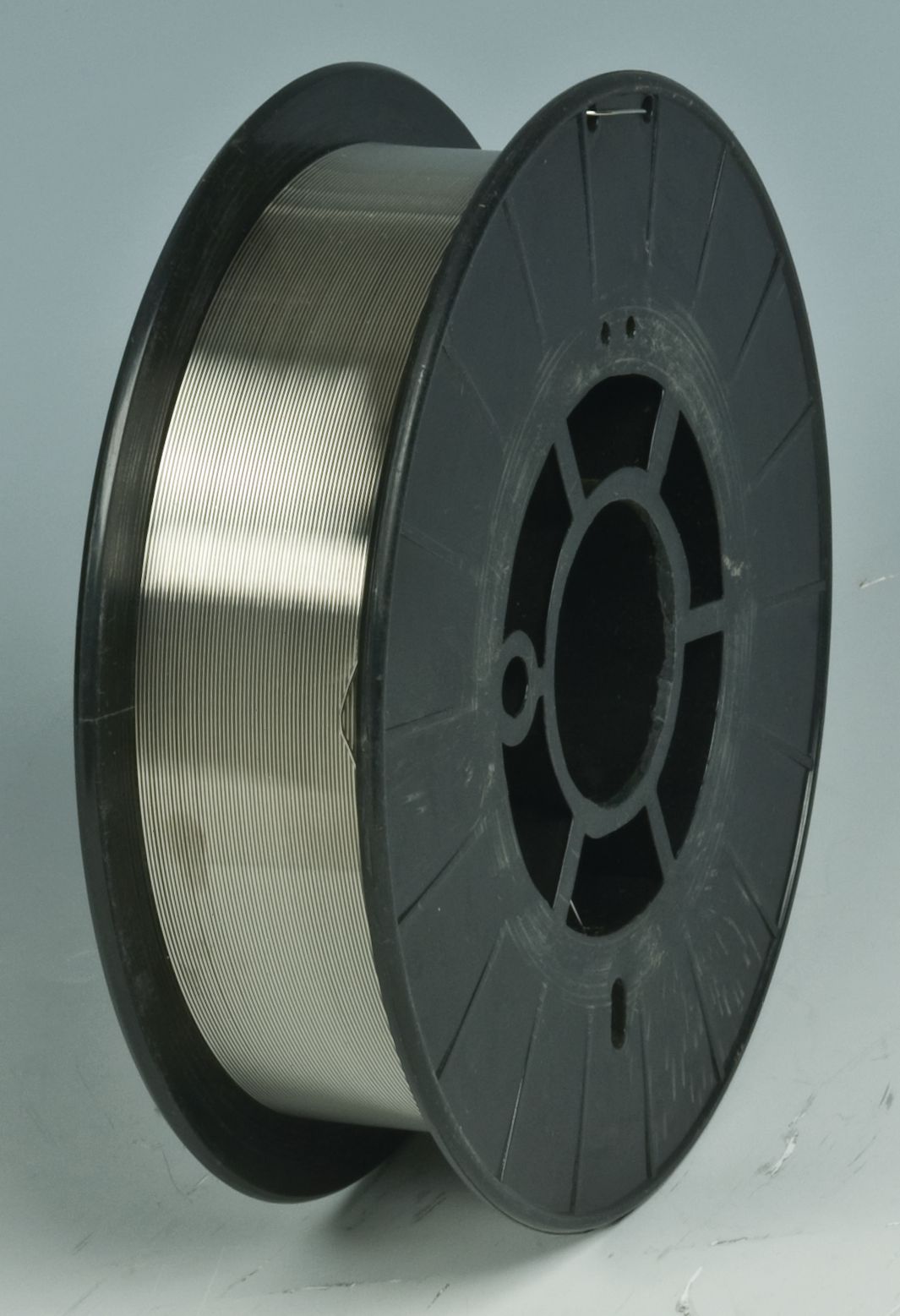

383 Stainless Steel MIG Welding Wire, Solid, 75Ar/25CO2 or 98Ar/2Ox Shielding Gas, 35% Elongation, DCRP Polarity, 0.03"
(Pack of
10)
SKU:CW5149 Item#: CW5149
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.
Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSI
Elongation: 35%
Gas: 98% Ar, 2% O2 or 90% He, 7.5% Ar, 2.5% CO2
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
3881 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
Eagle Arc 980X Welding Wire - 11Lbs
Couldn't load pickup availability
377 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Three Flint Striker
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Product Description
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSI
Elongation: 35%
Gas: 98% Ar, 2% O2 or 90% He, 7.5% Ar, 2.5% CO2
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Technical Specifications
| Item#: | CW5149 |
|---|---|
| Welding Process | MIG |
| Type | Solid |
| Diameter | .030 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Shielding Gas | 75Ar/25CO2 or 98Ar/2Ox |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 11.0 lb |
