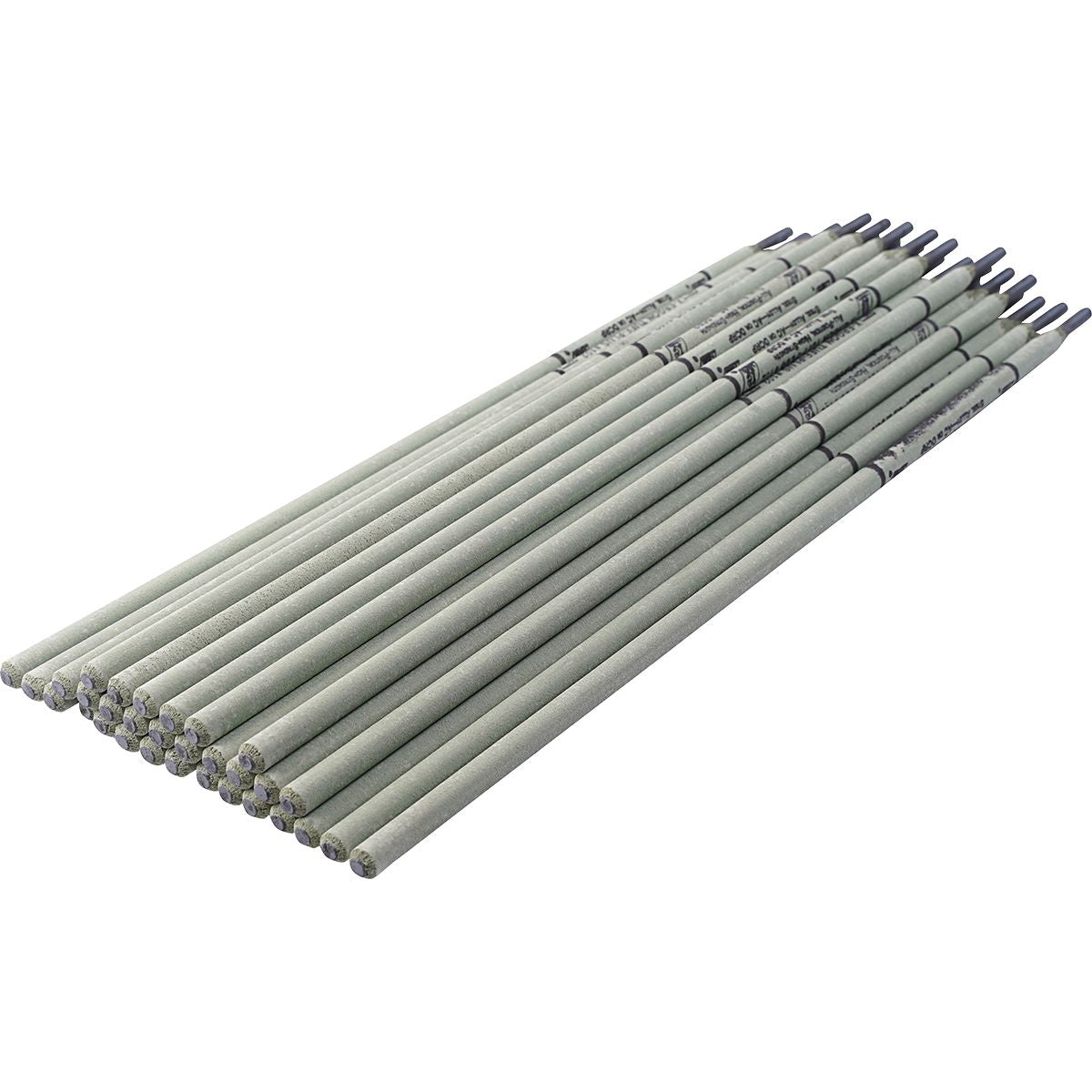

102 High Strength Torch Cuttable High Impact Resitant Low Hydrogen Electrode/Polarity Dcep/Ac/Elongation 26%/ Structural Steel
(Pack of 5)

Lawson Products

A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.
• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC

Check Availability

Quantity

Catalog page#: LE-126

Frequently Bought Together

109 High Strength Electrode 1/8

Item#: EG10940000

107 Mild Steel High Penetration Low Alloy Electrode 3/32"

Item#: EG10750000

109 High Strength Electrode 3/32

Item#: EG10950000

Qwik Stik® Electrolyte Powder Mix Grape

Self-Drilling Screw Hex Head #10-16 x 3/4"

Alu-Master 8-Way Torpedo Level

Item#: DY89310410

11-45 MIG Welding Contact Tip 0.045"

556 Aluminum TIG Wire 1/16"

707 Dissimilar Steel Stick Rod Electrode 3/32"

331 Mild and Carbon Steel MIG Welding Wire 0.03"

665 Copper and Brass TIG Wire 3/32"

701 Mild/Carbon Steel Stick Rod Electrode 3/32"

Product Description

A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.
• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG10220000
Welding Process	Stick
Type	Electrode
Diameter	3/16 "
Tensile Strength	115,000 PSI
Yield Strength	104,000 PSI
Elongation	26 %
Base Metal	High Strength Low-Alloy Steel
Hardness	21 HRC
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	6.15 lb
