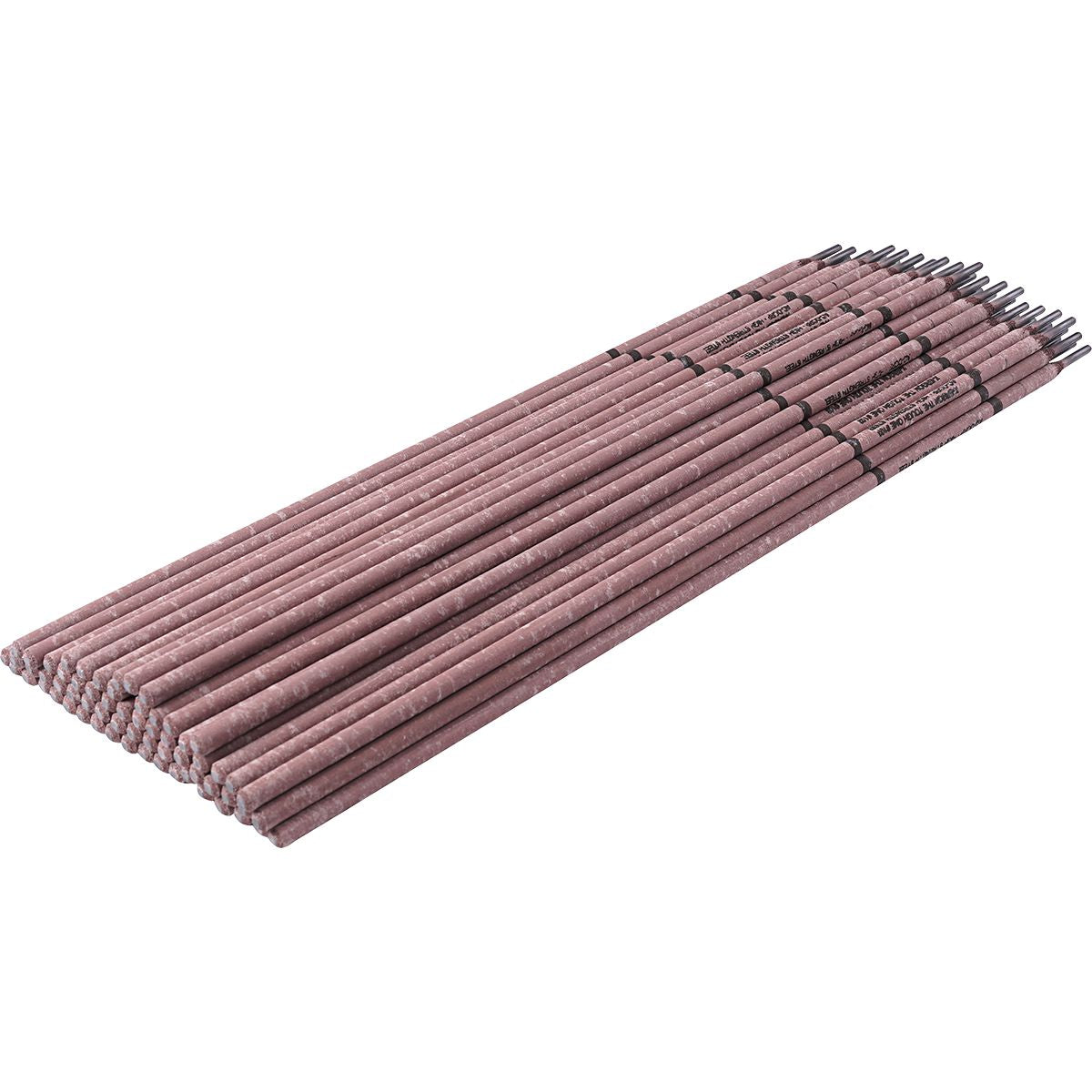

103 The Ultimate Low Hydrogen Mild Steel Electrode 5/32
(Pack of 5.0)

Lawson Products

Special Chem-A-Tized2 flux coating changes the way welders think of low-hydrogen electrodes. It operates at lower amperages with better puddle control than all previous low-hydrogen electrodes. Additions of nickel and molybdenum make the weld deposit tough and strong, but still machinable.
• Improved Weldability – Operates like a low-hydrogen rod should, with an easy-to-see puddle, extremely low spatter and easy slag-removal
• Easy to use out-of-position and the weld goes where you direct it
• Superior Weld Toughness – Designed for tough maintenance applications
• Versatile – Designed for welding mild steel, low alloy steel, free-machining steel, high-strength steel, all with one rod
• New Chem-A-Tized2 coating provides better arc control, low spatter and better bead appearance
• Tensile Strength: Up to 92,000 PSI/634 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Elongation: 30%
• Machinability: Excellent
• Hardness: 89 Rb
• Impact Resistance: 50 ft.-lbs. @ -40°F/-40°C
• Current: DCEP (DC+) or AC

Check Availability

Quantity

Frequently Bought Together

660 Mild Steel Flux Core Low Hydrogen Mig Wire .035X33Lb

Item#: EG66080035

663 Self Shielding Mild Steel Flux Core Mig Wire .045X33LB

Item#: EG66380045

103 The Ultimate Low Hydrogen Mild Steel Electrode 3/32

Item#: EG1035000R

SAE Flat Washer Thru-Hardened Steel 5/8"

Lock Washer Alloy Steel 3/8"

Superbutt Connector 16 to 14 AWG Blue

Light Weight Composite Wear Plates 24X4X13/64

Item#: EG09910424

Flat Soapstone 1/2"

Pipe Wrap Around

Item#: EG71600000

E7018 Mild/Carbon Steel Stick Electrode 3/16

Item#: EG12027019

321 Mild and Carbon Steel MIG Welding Wire 0.024"

360 Mild and Carbon Steel Stick Rod Electrode 1/8"

Product Description

Special Chem-A-Tized2 flux coating changes the way welders think of low-hydrogen electrodes. It operates at lower amperages with better puddle control than all previous low-hydrogen electrodes. Additions of nickel and molybdenum make the weld deposit tough and strong, but still machinable.
• Improved Weldability – Operates like a low-hydrogen rod should, with an easy-to-see puddle, extremely low spatter and easy slag-removal
• Easy to use out-of-position and the weld goes where you direct it
• Superior Weld Toughness – Designed for tough maintenance applications
• Versatile – Designed for welding mild steel, low alloy steel, free-machining steel, high-strength steel, all with one rod
• New Chem-A-Tized2 coating provides better arc control, low spatter and better bead appearance
• Tensile Strength: Up to 92,000 PSI/634 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Elongation: 30%
• Machinability: Excellent
• Hardness: 89 Rb
• Impact Resistance: 50 ft.-lbs. @ -40°F/-40°C
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG10331000
Welding Process	Stick
Type	Electrode
Diameter	5/32 "
Tensile Strength	92,000 PSI
Yield Strength	76,000 PSI
Elongation	30 %
Base Metal	High Strength Low-Alloy Steel
Hardness	89 HRB
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.93 lb
