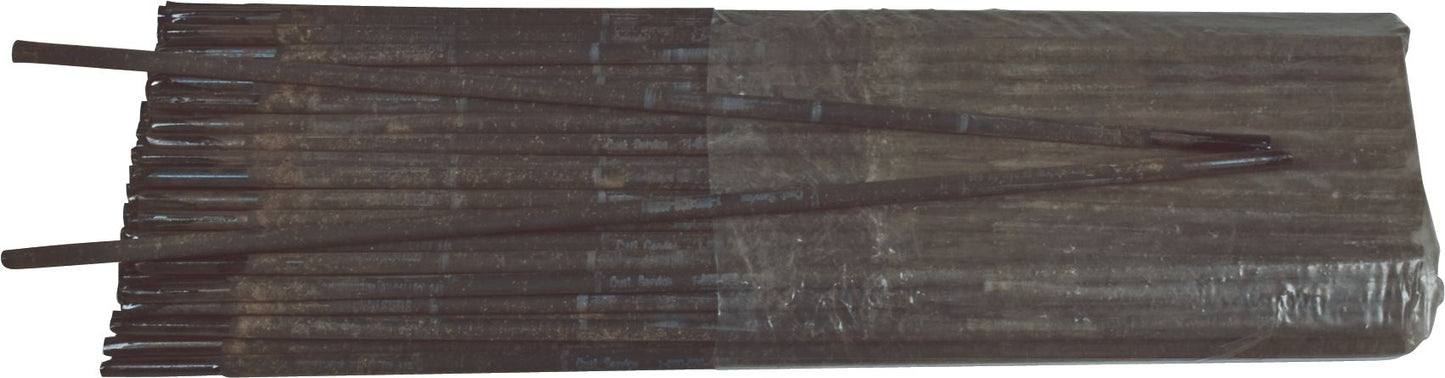

246 Carbide Hard Facing Stick Rod Electrode 1/4"
(Pack of
15)
Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
Minimal base metal dilution
Maximum recovery (95% versus 65% typical)
1/4" dia. provides good out-of-position welding
Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 60 (2nd pass)No. of Passes: Three maximumPolarity: AC or DC
Use on manganese and carbon steels
Applications
Dredge pumps
Screw conveyors
Chutes for transporting sand and gravel
Bucket lips
Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD
Couldn't load pickup availability

777 Austenitic Hard Facing Stick Electrode 5/32"
Couldn't load pickup availability

750 Martensitic Stick Rod Electrode 5/32"
Couldn't load pickup availability

7370 Carbide Hard Facing Stick Rod Electrode 3/8"
Couldn't load pickup availability

7310 Carbide Hard Facing MIG Welding Wire 0.045"
Couldn't load pickup availability

176 Extreme Abrasion With Impact 3/8X18IN
Couldn't load pickup availability

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability

SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability

Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability

Rosin Core Solder 1/16"
Couldn't load pickup availability

Rosin Core Solder 1/16"
Couldn't load pickup availability

201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Product Description
Designed for high abrasion resistance in low to moderate impact situations.Superior Advantages
Minimal base metal dilution
Maximum recovery (95% versus 65% typical)
1/4" dia. provides good out-of-position welding
Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 60 (2nd pass)No. of Passes: Three maximumPolarity: AC or DC
Use on manganese and carbon steels
Applications
Dredge pumps
Screw conveyors
Chutes for transporting sand and gravel
Bucket lips
Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Technical Specifications
Item#: | P12999 |
---|---|
Welding Process | Stick |
Type | Tubular |
Diameter | 1/4 " |
Length | 18 " |
Base Metal | Carbide |
Carbide Type | Chromium |
Hardness | 50-60 HRC |
Polarity | AC/DCRP |
UNSPSC #: | 23271810 |
TAA Compliant: | Yes |
Weight: | 15.4 lb |
