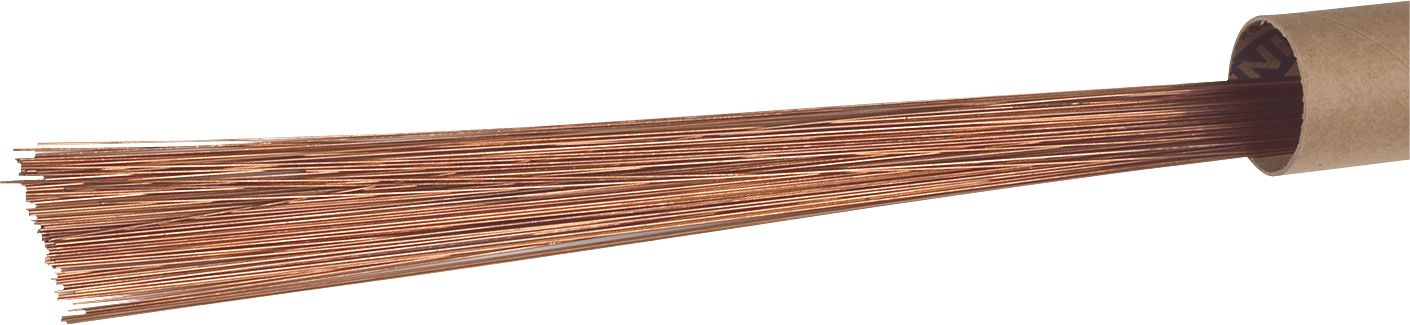

344 Tool Steel TIG Wire, Solid, 59 to 63 HRC Hardness, 100% Ar Shielding Gas, DCSP Polarity, 36" Length, 0.035"
(Pack of
1)
A broad selection of premium alloys to use for nearly any tool steel application and repair.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63Polarity: DC StraightGas: 100% Ar
“D” and “M” SeriesThis alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage ProcedureWhen used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
346 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
349 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
349 Tool Steel TIG Wire 0.035"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 3/32"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
A broad selection of premium alloys to use for nearly any tool steel application and repair.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63Polarity: DC StraightGas: 100% Ar
“D” and “M” SeriesThis alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage ProcedureWhen used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Technical Specifications
| Item#: | CW1982 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | .035 " |
| Length | 36 " |
| Base Metal | Tool Steel |
| Hardness | 59-63 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 1.3 lb |
