670 Fc For Overlays And Build No Gas High Compression Polarity Dcep Hardness 28Rc Tensile 145000 Unlimited Passes
(Pack of
33)
SKU:EG67080062 Item#: EG67080062
An easy-to-use alloy for building up and joining of carbon and low alloy steels in either flat or horizontal positions. Offers excellent tie-ins with all of the Wear-X Alloys. Has excellent resistance to cracking under heavy loads. It is highly recommended for use on shovels, buckets, blades, augers, track pads, ring gears, housings, conveyor parts, and agricultural, bick making, dredging, foundry and trenching equipment.
• No Gas Required – Greater portability
• Low Spatter – Less clean-up
• Excellent Arc Stability – Better deposit control
• Shock-Resistant – Fights impact
• High Compression Strength – For a strong base foundation
• Compressive Strength: 145,000 PSI/1,000 Mpa
• Hardness: 28 Rc (2 passes .2% C steel)
• Elongation: 18%
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DCEP
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: LE-128
Frequently Bought Together

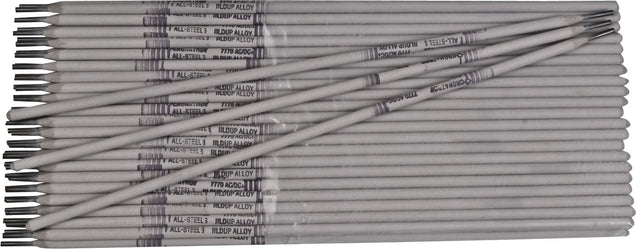

7770 Hard Facing Buildup Stick Rod Electrode 3/32"
Couldn't load pickup availability
170 Build Up Of Carbon And Low Alloy Steels 3/16
Couldn't load pickup availability
170 Build Up Of Carbon And Low Alloy Steels 5/32
Couldn't load pickup availability
7220 Carbide Hard Facing Stick Rod Electrode 1/2"
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 3/16"
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 3/16
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Dissimilar Steel Stick Rod Electrode Kit
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Product Description
An easy-to-use alloy for building up and joining of carbon and low alloy steels in either flat or horizontal positions. Offers excellent tie-ins with all of the Wear-X Alloys. Has excellent resistance to cracking under heavy loads. It is highly recommended for use on shovels, buckets, blades, augers, track pads, ring gears, housings, conveyor parts, and agricultural, bick making, dredging, foundry and trenching equipment.• No Gas Required – Greater portability
• Low Spatter – Less clean-up
• Excellent Arc Stability – Better deposit control
• Shock-Resistant – Fights impact
• High Compression Strength – For a strong base foundation
• Compressive Strength: 145,000 PSI/1,000 Mpa
• Hardness: 28 Rc (2 passes .2% C steel)
• Elongation: 18%
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DCEP

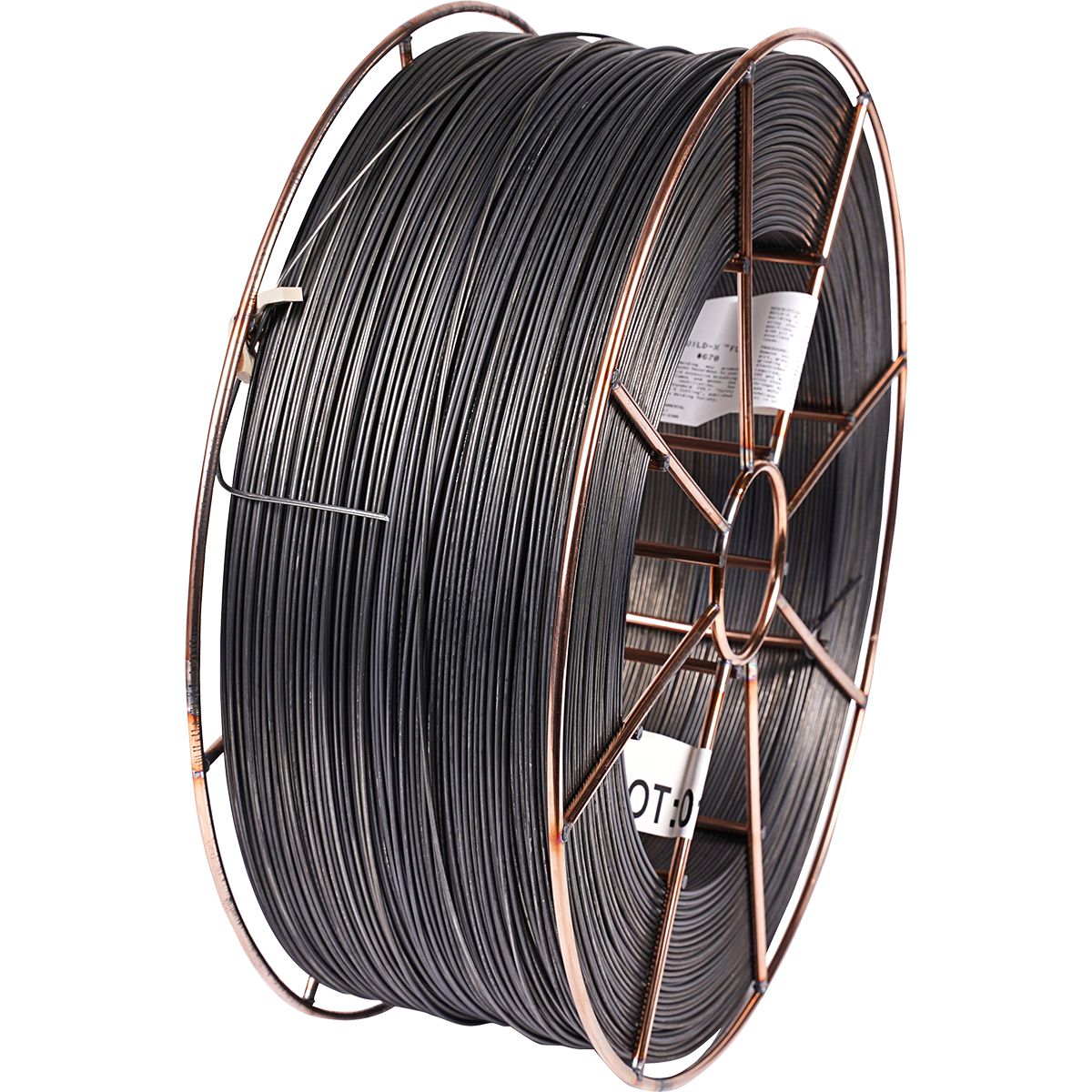

Technical Specifications
| Item#: | EG67080062 |
|---|---|
| Welding Process | Flux-Core Arc Welding |
| Type | Flux-Cored Wire |
| Diameter | 1/16 " |
| Base Metal | Mild And Medium Carbon Steel |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 37.75 lb |
