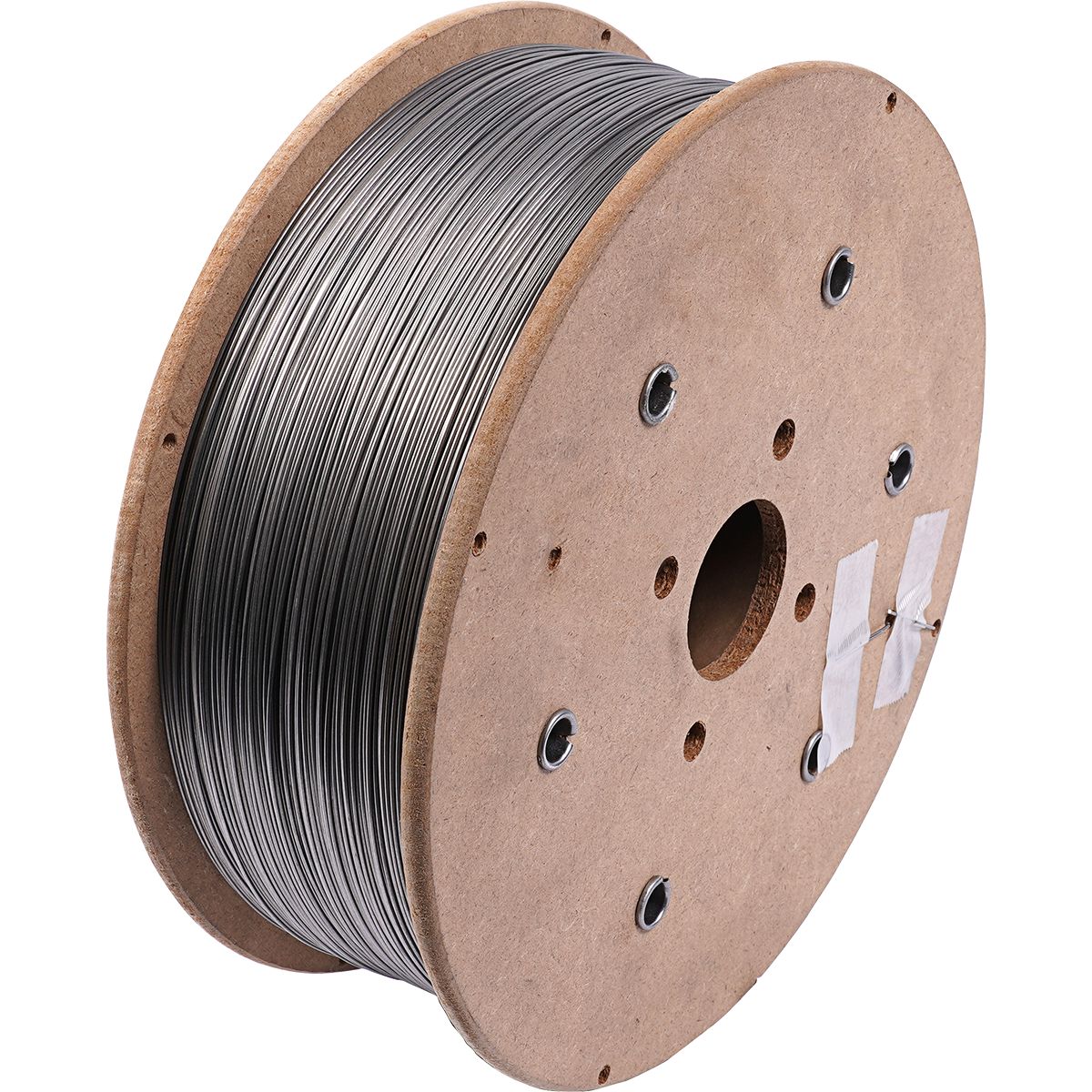

672 Extreme Impact All Steel All Position Not Torchable Polarity Dcen Or Dcep Hardness 20Rc To 55Rc Gas 75%Ar25%Co2 Elongation 25%
(Pack of
25)
SKU:EG67280045 Item#: EG67280045
Special alloy designed for extreme impact resistance with good abrasion resistance. Special alloy formulation allows it to be used on all steels, including carbon and manganese steels. Allows welding in out-of-position applications. Designed for use with 75% Ar/25% CO2 shielding gas, but can be used without shielding gas. Excellent for frogs, hammers switch points, muller tires and many other impact applications.
• All-position
• Versatile – Can be used on carbon, alloy and manganese steels
• Resistant to heavy impact
• Not torch-cuttable
• Tensile Strength: 133,000 PSI/917 MPa
• Hardness: – As Deposited: 20 RC – Work Hardened: 55 RC
• Yield Strength: 91,500 PSI/630 MPa
• Elongation: 29%
• Machinability: Fair (carbide tools)
• Max Number of Passes: Unlimited
• Current: DCEN or DCEP (DCEN recommended)
• Gas: 75% Ar, 25% C02
Couldn't load pickup availability
Catalog page#: LE-129
Frequently Bought Together
750 Martensitic Stick Rod Electrode 5/32"
Couldn't load pickup availability
172 Intermediate Abrasion And Impact Alloy 5/32X18
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 5/32"
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 3/16
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
510 Aluminum TIG Wire 1/8"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
Special alloy designed for extreme impact resistance with good abrasion resistance. Special alloy formulation allows it to be used on all steels, including carbon and manganese steels. Allows welding in out-of-position applications. Designed for use with 75% Ar/25% CO2 shielding gas, but can be used without shielding gas. Excellent for frogs, hammers switch points, muller tires and many other impact applications.• All-position
• Versatile – Can be used on carbon, alloy and manganese steels
• Resistant to heavy impact
• Not torch-cuttable
• Tensile Strength: 133,000 PSI/917 MPa
• Hardness: – As Deposited: 20 RC – Work Hardened: 55 RC
• Yield Strength: 91,500 PSI/630 MPa
• Elongation: 29%
• Machinability: Fair (carbide tools)
• Max Number of Passes: Unlimited
• Current: DCEN or DCEP (DCEN recommended)
• Gas: 75% Ar, 25% C02
Technical Specifications
| Item#: | EG67280045 |
|---|---|
| Welding Process | Flux-Core Arc Welding |
| Type | Flux-Cored Wire |
| Diameter | .045 " |
| Base Metal | Manganese And Carbon Steel |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 30.94 lb |
