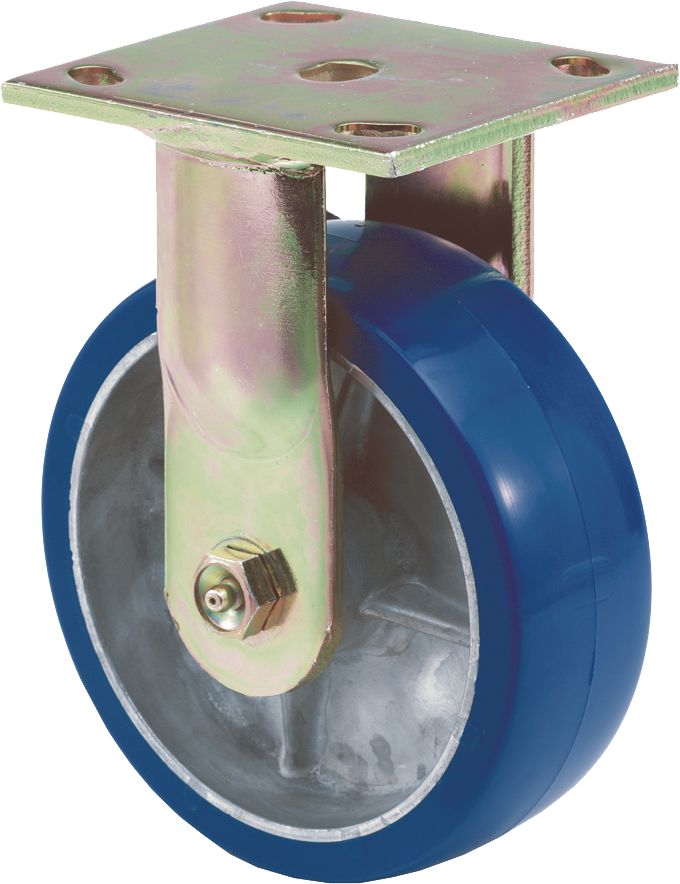

Caster, Rigid, Heavy-Duty, 5" Diameter, 2" Width, 6-1/2" Overall Height, 1050 Lb Safe Load, Mold-On Rubber Wheel
(Pack of
1)
SKU:10846 Item#: 10846
Mold-On PolyurethaneThis wheel has a polyurethane tread permanently molded and mechanically locked to an aluminum hub. It provides easy rolling, high load capacity, good floor protection and long service life. Sold with a roller bearing. Tread hardness: 55 Shore D.
• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on polyurethane wheels are molded to an aluminum hub
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Couldn't load pickup availability
Catalog page#: 15-58
Frequently Bought Together
Caster Rigid Medium Duty 5 x 1-3/8" Wheel
Couldn't load pickup availability
Brake Kit For Light-Medium-Duty Swivel Casters
Couldn't load pickup availability
Caster Rigid Medium Duty 6 x 1-3/8" Wheel
Couldn't load pickup availability
Quick Link 1/4" Chain Size 880 Lb Safe Load
Couldn't load pickup availability
2" X 10' Quick Trac Retractable Ratcheting Tie Down Black 1100 Lbs
Couldn't load pickup availability
Quick Link 5/16" Chain Size 1540 Lb Safe Load
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
Mold-On PolyurethaneThis wheel has a polyurethane tread permanently molded and mechanically locked to an aluminum hub. It provides easy rolling, high load capacity, good floor protection and long service life. Sold with a roller bearing. Tread hardness: 55 Shore D.• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on polyurethane wheels are molded to an aluminum hub
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Technical Specifications
| Item#: | 10846 |
|---|---|
| Type | Rigid |
| Style | Heavy Duty |
| Wheel Type | Mold-on Polyurethane |
| Wheel Diameter | 5 " |
| Wheel Width | 2 " |
| Overall Height | 6-1/2 " |
| Load Rating | 1,050 lb |
| Top Plate Overall Size | 4 x 4-1/2 " |
| Top Plate Bolt Diameter | 3/8 " |
| Top Plate Hole Spacing | 2-5/8 x 3-5/8 to 3 x 3 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Yellow Zinc Chromate |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 5.08 lb |
