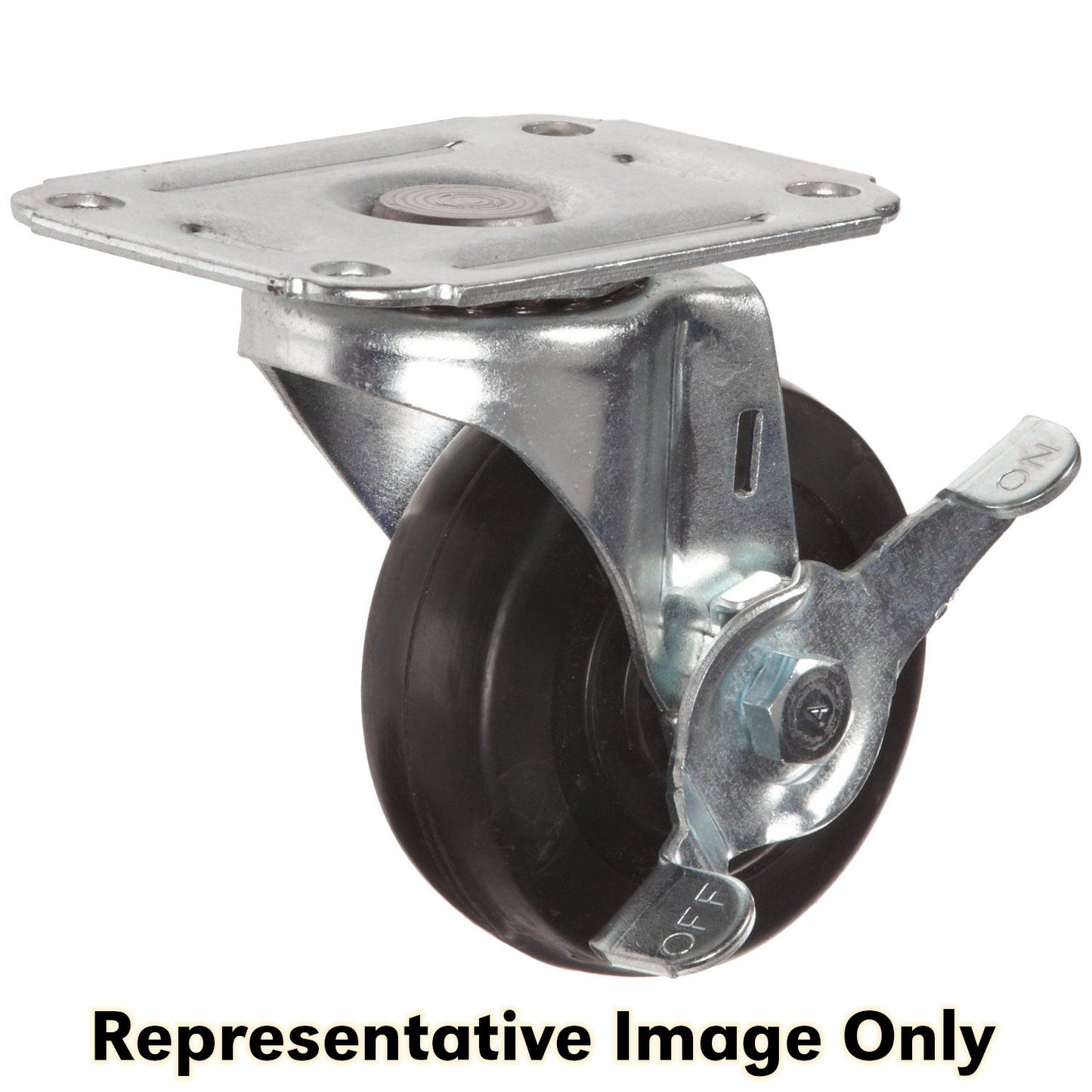

Caster, Swivel with Brake, Soft Rubber Wheel, 3" Diameter, 1-1/4" Wheel Width, 125 lb Load Rating
(Pack of
1)
SKU:1588620 Item#: 1588620
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
Catalog page#: 15-57
Frequently Bought Together
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Wire Rope Sleeve, 1/16", Aluminum
Couldn't load pickup availability
Clevis Slip Hook, Grade 70, 3/8", 6,600 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 2,000 lb WLL
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588620 |
|---|---|
| Type | Swivel |
| Style | Light-Medium Duty |
| Wheel Type | Soft Rubber |
| Wheel Diameter | 3 " |
| Wheel Width | 1-1/4 " |
| Overall Height | 3-3/4 " |
| Load Rating | 125 lb |
| Top Plate Overall Size | 2-3/4" x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3 " |
| Top Plate Hole Diameter | 11/32 " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.555 lb |
