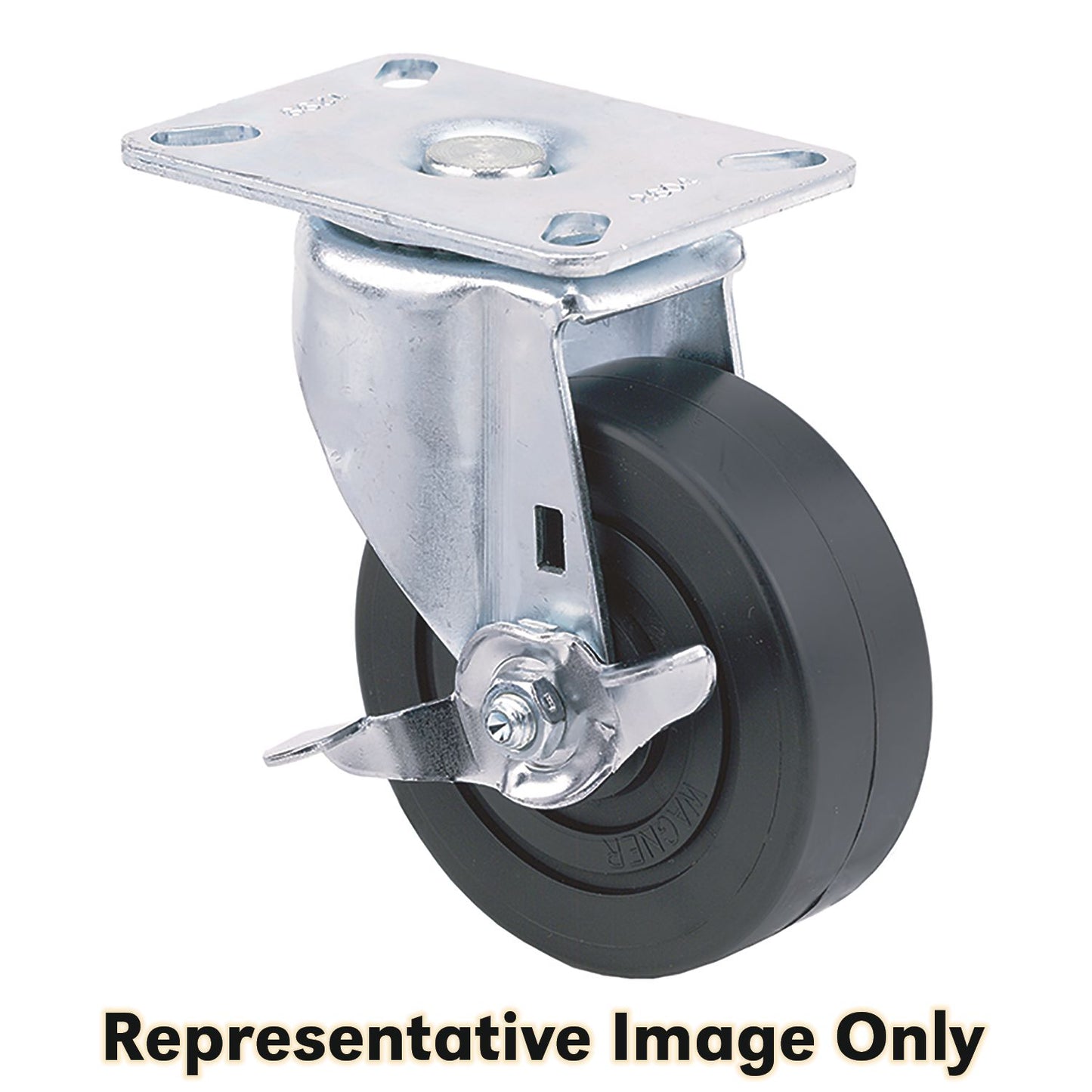

Caster, Swivel with Brake, Polypropylene Wheel, 6" Diameter, 1-3/8" Wheel Width, 400 lb Load Rating
(Pack of
1)
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-57
Frequently Bought Together
Caster Rigid Lite-Medium Duty 4 x 1-1/4" Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 8 x 2" Wheel
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 13,000 lb WLL
Couldn't load pickup availability
Tuflex Roundsling, Polyester/Nylon, Yellow, 4' Length
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 8 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 8 x 2" Wheel
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588638 |
|---|---|
| Type | Swivel |
| Style | Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 6 " |
| Wheel Width | 1-3/8 " |
| Load Rating | 400 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 3.085 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
