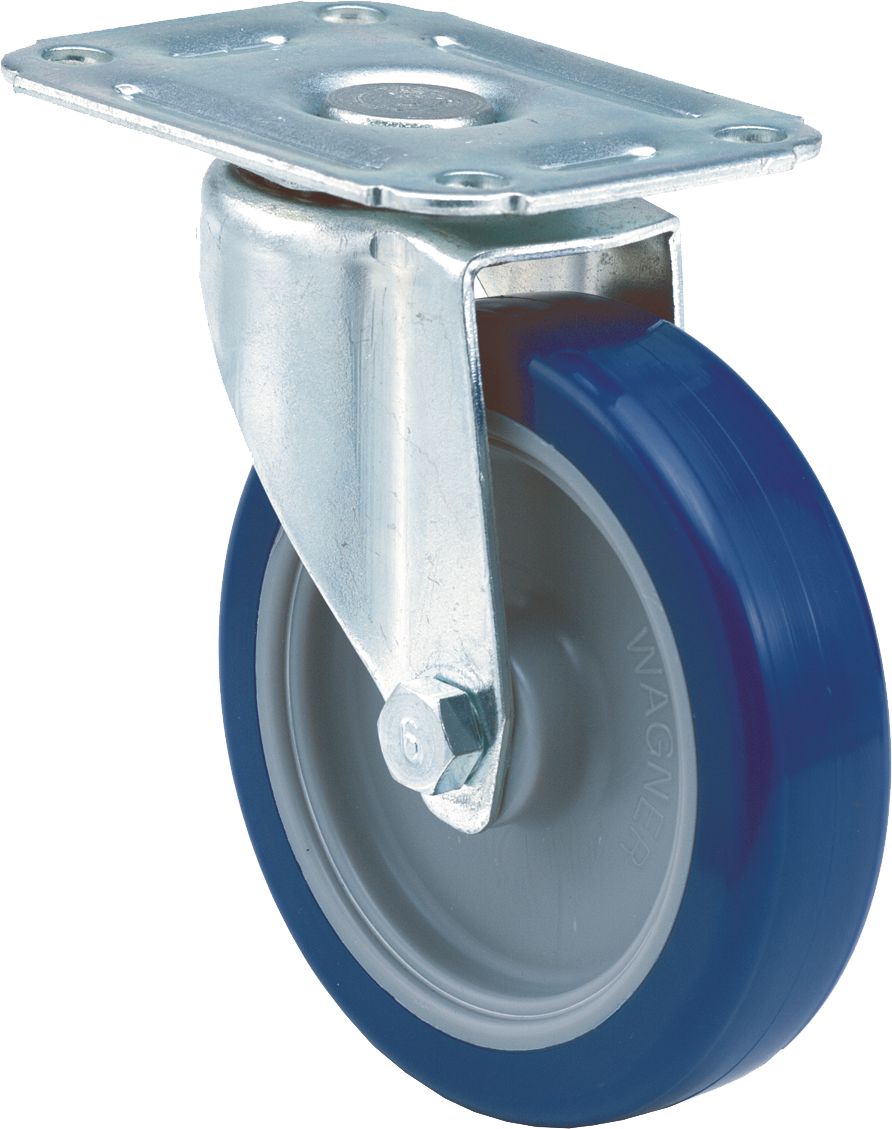

Caster, Swivel, Light-Medium Duty, 4" Diameter, 1-1/4" Width, 4-11/16" Overall Length, 255 Safe Load, Polyurethane Wheel
(Pack of
1)
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 5/16" dia. nut and bolt axle
• Durable, heat-treated, factory lubricated double ball raceways for high performance
• Optional brake kit available
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
• Applications include light- to medium-duty industrial, office and retail carts, dollies, cabinets, racks and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Caster Swivel Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Institutional 5 x 1-3/8" Wheel
Couldn't load pickup availability
Quick Link 1/4" Chain Size 880 Lb Safe Load
Couldn't load pickup availability
2" X 10' Quick Trac Retractable Ratcheting Tie Down Black 1100 Lbs
Couldn't load pickup availability
Quick Link 5/16" Chain Size 1540 Lb Safe Load
Couldn't load pickup availability
Caster Rigid Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 5/16" dia. nut and bolt axle
• Durable, heat-treated, factory lubricated double ball raceways for high performance
• Optional brake kit available
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
• Applications include light- to medium-duty industrial, office and retail carts, dollies, cabinets, racks and other mobile equipment
Technical Specifications
| Item#: | 10781 |
|---|---|
| Type | Swivel |
| Style | Light-Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 4 " |
| Wheel Width | 1-1/4 " |
| Load Rating | 255 lb |
| Top Plate Overall Size | 2-3/4 x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 " |
| Top Plate Hole Diameter | 11/32 " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.3 lb |
